Retsch AS 200 jet - Views of the Instrument; Front

Operating the Device
28
6.3 Views of the Instrument
6.3.1 Front

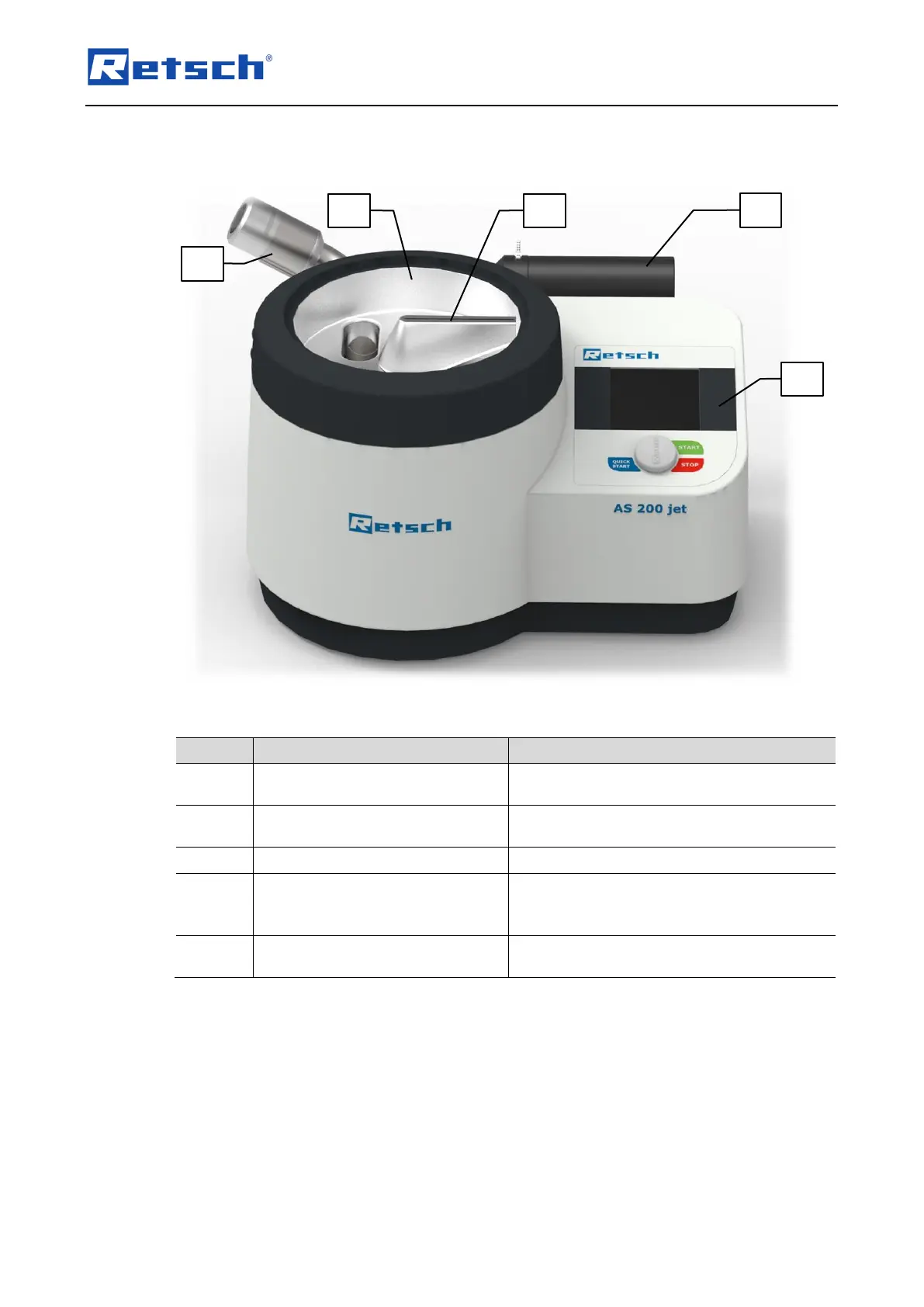

Fig. 11: Front view of the device
Element
Description
Function
A
Nozzle chamber
Directs the fine fraction to the air outlet duct
(E)
B
Nozzle
Directs the air jet from below through the test
sieve (S)
F
Silencer
Reduces the suction noise
G
Manual vacuum regulation
Connection for the external industrial
vacuum cleaner, allows for the manual
regulation of the negative pressure
H
Control unit with rotary push
button
Operation of the device
B
A
F
G
H
