Retsch AS 200 jet - Cyclone Separator

Accessories
53
12.4 Cyclone Separator

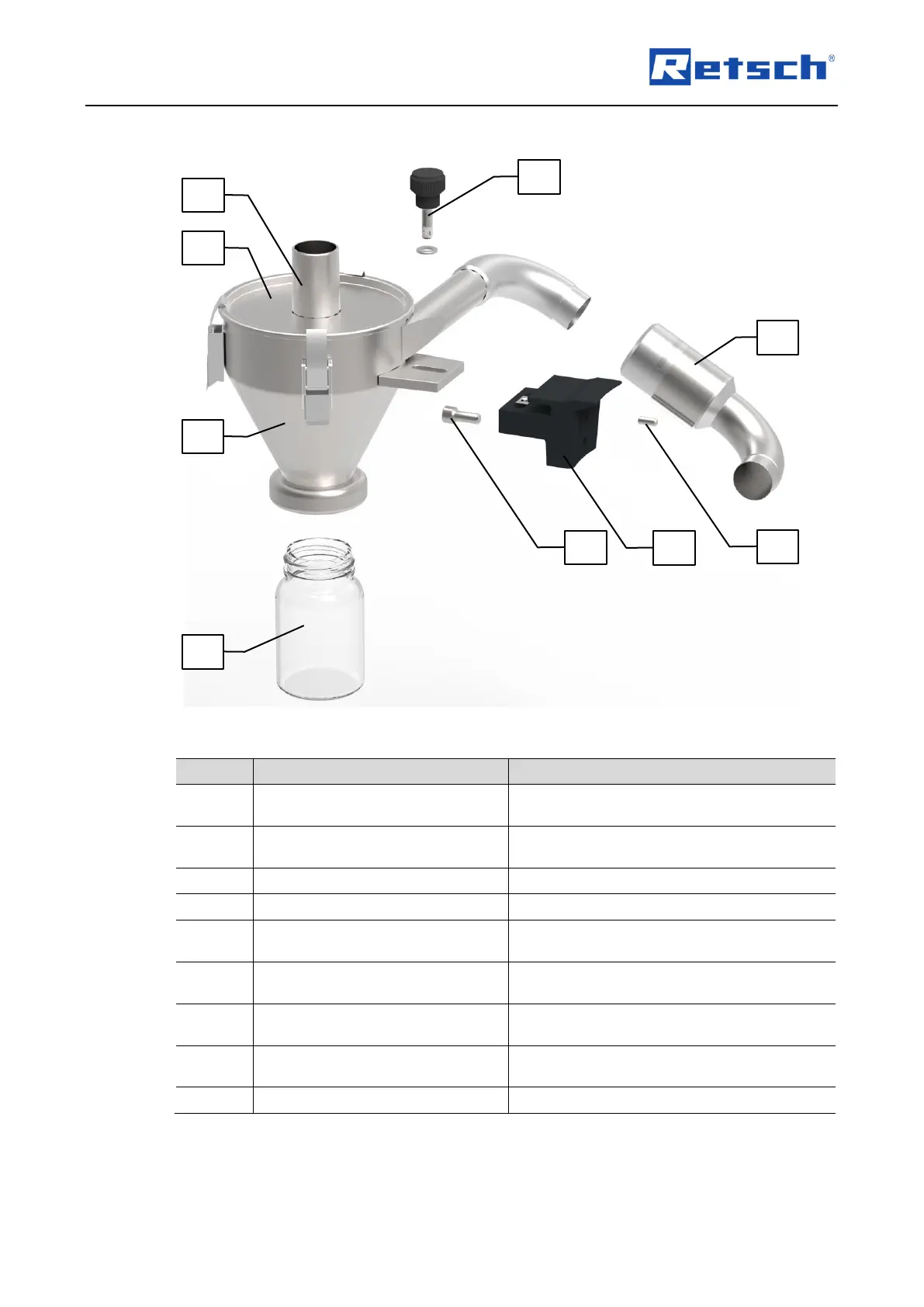

Fig. 29: Individual parts of the cyclone separator
Element
Description
Function
G
Manual vacuum regulation
Allows for the manual regulation of the
negative pressure
Z
Cyclone separator
Separates the undersize (sifted sample
material) from the airflow
Z1
Cyclone lid
Removable lid with air outlet (Z2)
Z2
Air outlet
Connection for the industrial vacuum cleaner
Z3
Knurled head screw with washer
Secures the cyclone separator (Z) to the
bracket (Z4)
Z4
Bracket of the cyclone separator
Adapter between the cyclone separator (Z)
and the AS 200 jet
Z5
Fixing screw
Fixes the bracket (Z4) to the housing of the
AS 200 jet
Z6
Cylinder pin
Serves as an anti-rotation lock for the
bracket (Z4)
Z7
Receptacle
Collecting vessel for the undersize
Z3
Z
Z6
Z7
G
Z4
Z5
Z1
Z2
