34/60 Installation
Bosch Rexroth AG, RE 92100-01-B/09.2012 Series 10, 11 and 30,
7.4.7 Completing installation
1. Remove any mounted transport screws.
CAUTION! Operation with protective plug!
Operating the axial piston unit with protective plugs may result in injuries or damage
to the axial piston unit.
▶ Before commissioning, remove all protective plugs and replace them with
suitable, pressure-proof, metal threaded plugs.
2. Remove the transport protection.
The axial piston unit is delivered with protective covers (1) and protective
plugs(2). They are not pressure-resistant, therefore they have to be removed
prior to connection. Use a suitable tool for this to prevent damage to the sealing
and functional surfaces. If sealing or functional surfaces are damaged, contact
your responsible Bosch Rexroth Service partner or the service department of the
manufacturer's plant for the axial piston unit.
1
1
2
2

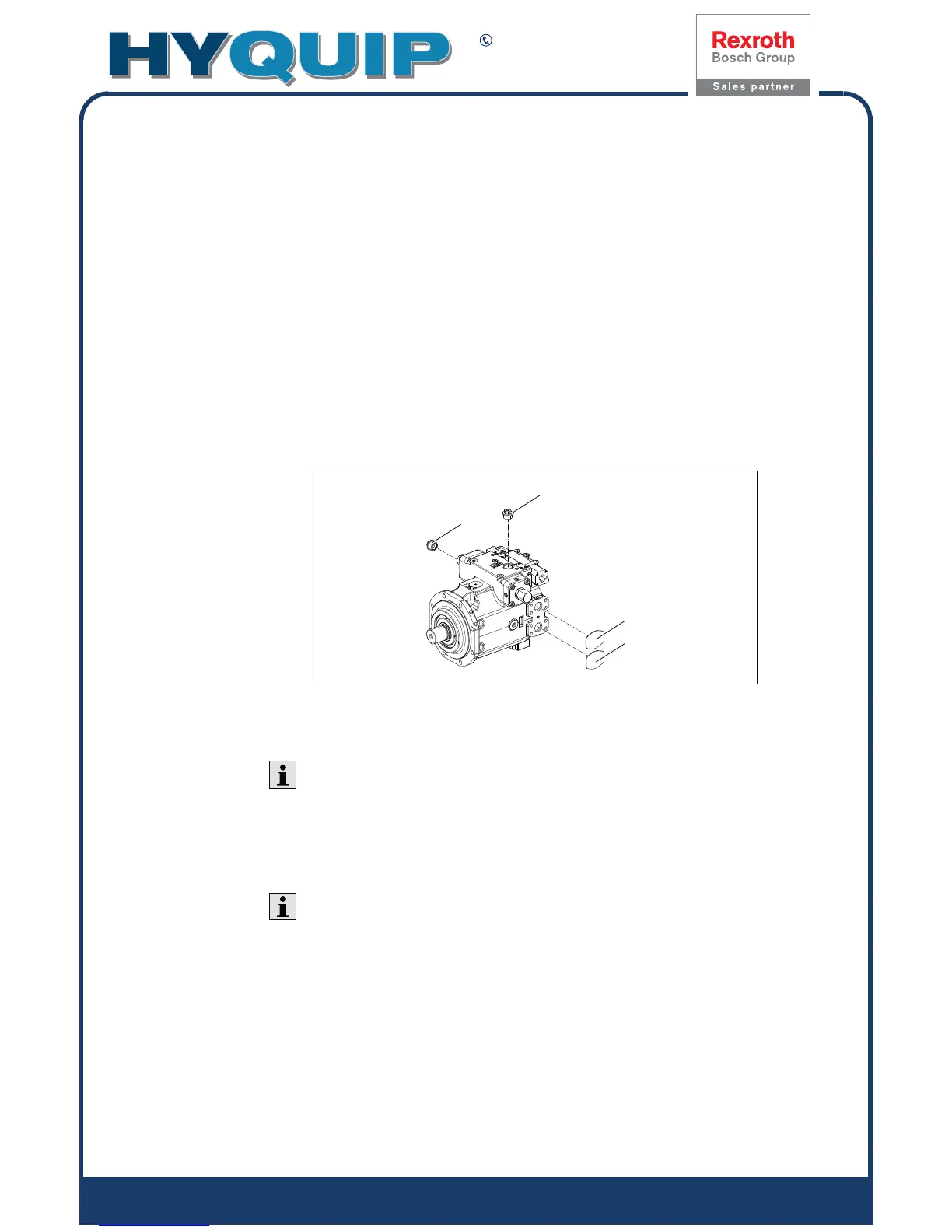

Fig. 11: Removing transport protection
1 Protective covers 2 Protective plugs/threaded plugs
Ports intended for connecting lines are covered by protective plugs or threaded
plugs, which serve as transport protection. All ports required for the function
must be connected (see Table 10 "Ports A4VSG Series 10, 11 and 30" on
page38). If this requirement is disregarded, malfunction or damage may result.
If a port is not connected, it must be plugged with a threaded plug because
protective plugs are not pressure-resistant.
Changing the setting of the setting screw will void the warranty. If you need to
change settings, contact your responsible Bosch Rexroth Service partner
(for address, see chapter10.5 "Spare parts" on page50.
3. For versions with through drive, install the auxiliary pump according to the pump
manufacturer's instructions.
