REXROTH EcoDrive 03 User Manual

5-12 Instructions for Use Rexroth EcoDrive 03 DKC**.3-040...200
DOK-ECODR3-DKC40*200UL-IB01-EN-P
Voltage connection for brakes
Note: The motor holding brake is not supplied by the controller.
Given one voltage source for brake and control voltage, use
parallel leads from the voltage source. Insert the brake voltage
supply cable in the touch guard from the bottom or from the
side. Note the voltage range for the motor holding brake
according to the motor projection.
CAUTION
Risk of damage!
⇒ The maximum allowed current load of the terminals
for the voltage supply of the brake and the control
voltage supply must also be observed in the case of
a short circuit.
Ap5126f1.fh7
123456789 123456789
1234 1234
11121314 151617 18
5678
1234 1234 5678
123456789 123456789
1234 1234
11121314 151617 18
5678
1234 1234 5678
DKC DKC
X1 X1
X6 X6
24V
to the central
ground
to additional
devices

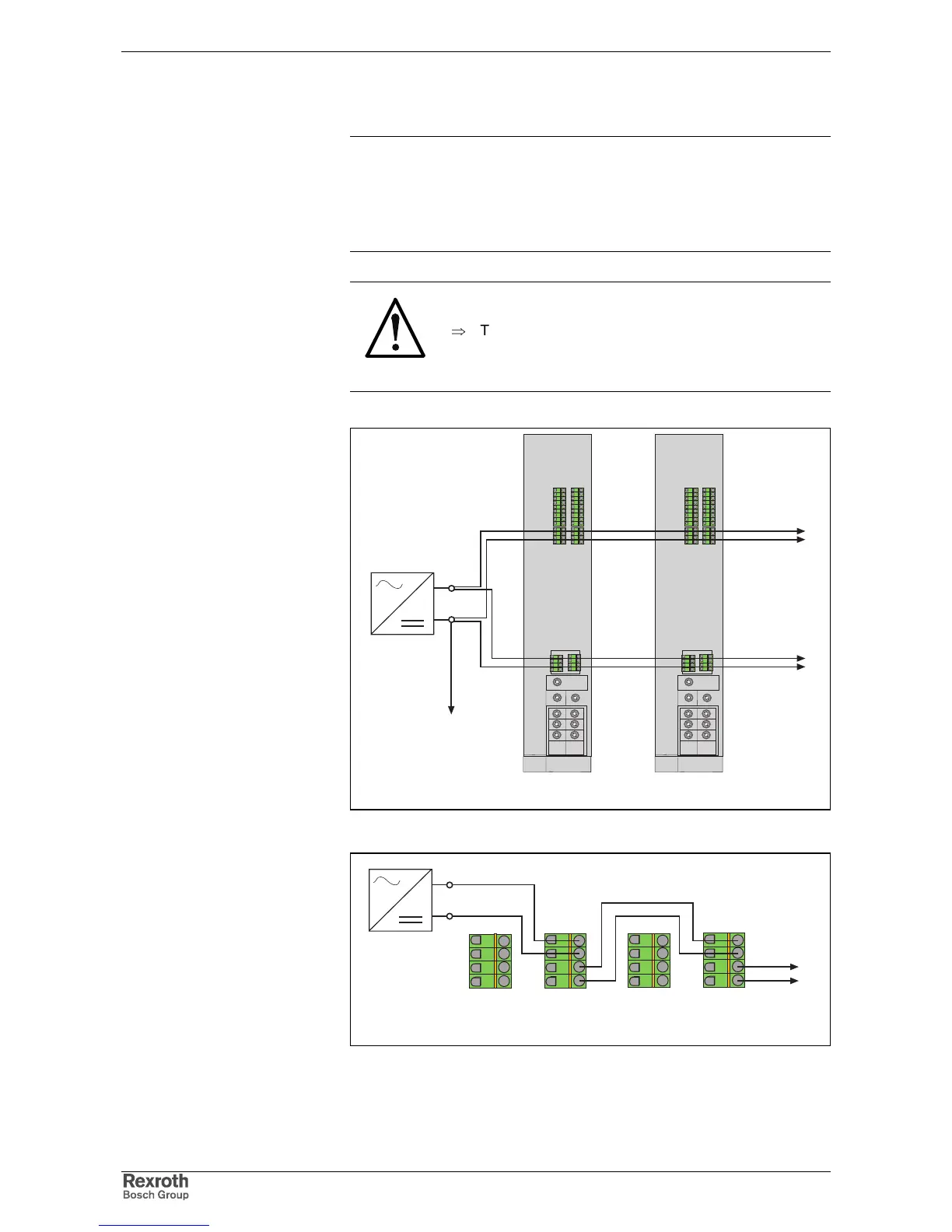

Fig. 5-27: Shared voltage source for brakes and control voltage supply
Ap5140f1.fh7
24V
X6
1234 5678
X6
1234 5678
to additional
devices
Fig. 5-28: Looping through the brake supply
