RGBlink CP 3072PRO User Manual

Chapter 1: Your Product

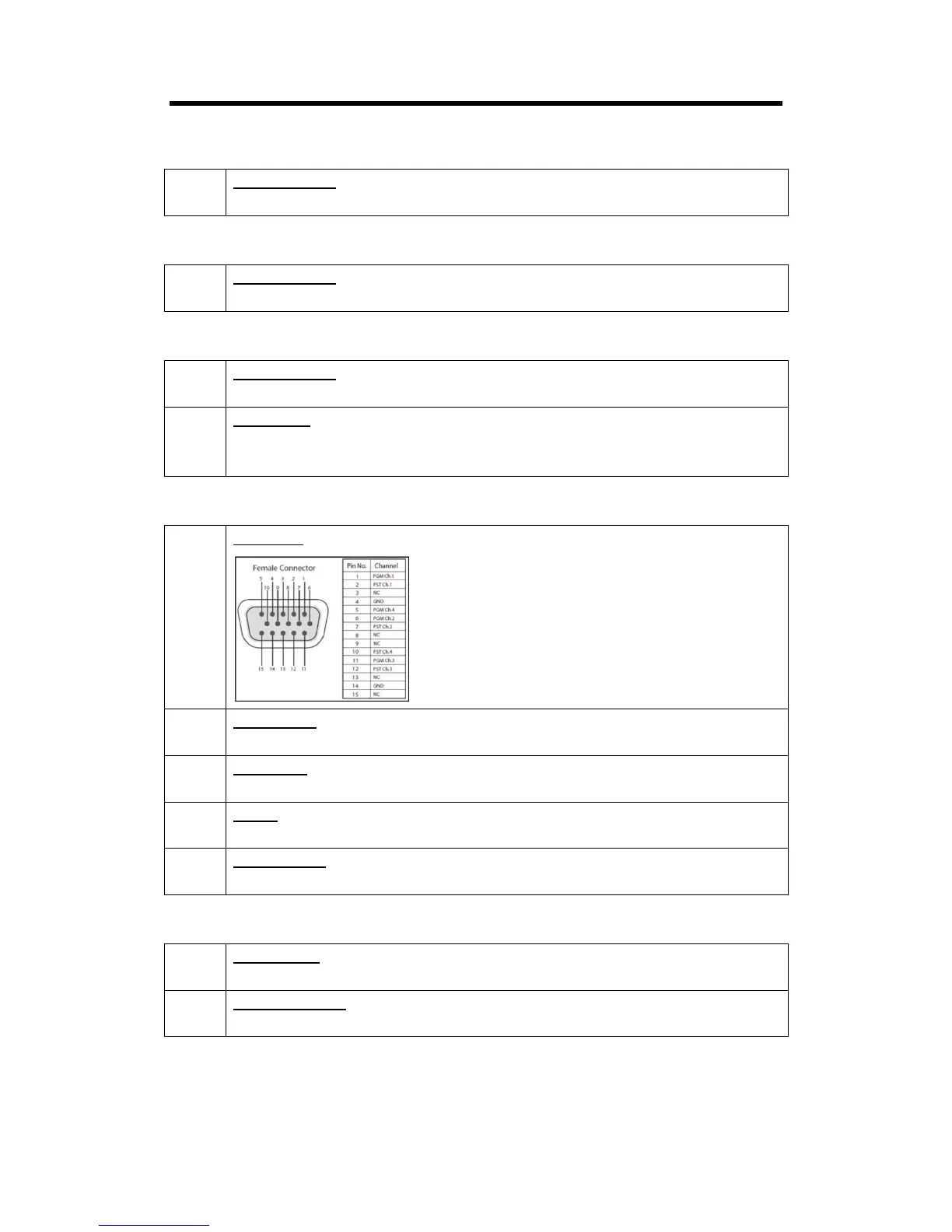

CP 3072PRO User Manual
9
PGM Output
2. 3
HDMI-A – HDMI
Connect to the monitor with HDMI input or the LED display.
PST Output
4.5
HDMI-A – HDMI
Connect to the monitor with HDMI input.
PVW Output
8
HDMI-A – HDMI
Connect to the monitor with HDMI input.
9
DB15 – VGA
Connect to the monitor or LED display which has VGA interface. (This connector does
not support hotplug).
Control Connectors
6.7
TALLY Light
12
BNC-Genlock
Input signal from the controller or signal generator and other devices.
13
USB-A–USB
For custom LOGO, OSD, STILL and MASK saving, and can be loaded.
14
RS-232
Used for device upgrade.
15
RJ45–Ethernet
Used for device upgrade.
Power Connection
10
Power Switch
Illuminated power switch.
11
IEC – Power Input
Main power input AC 85-264V Max 65W.
