RGBlink CP 3072PRO User Manual

CP 3072PRO User Manual
43
Chapter 6 Appendix

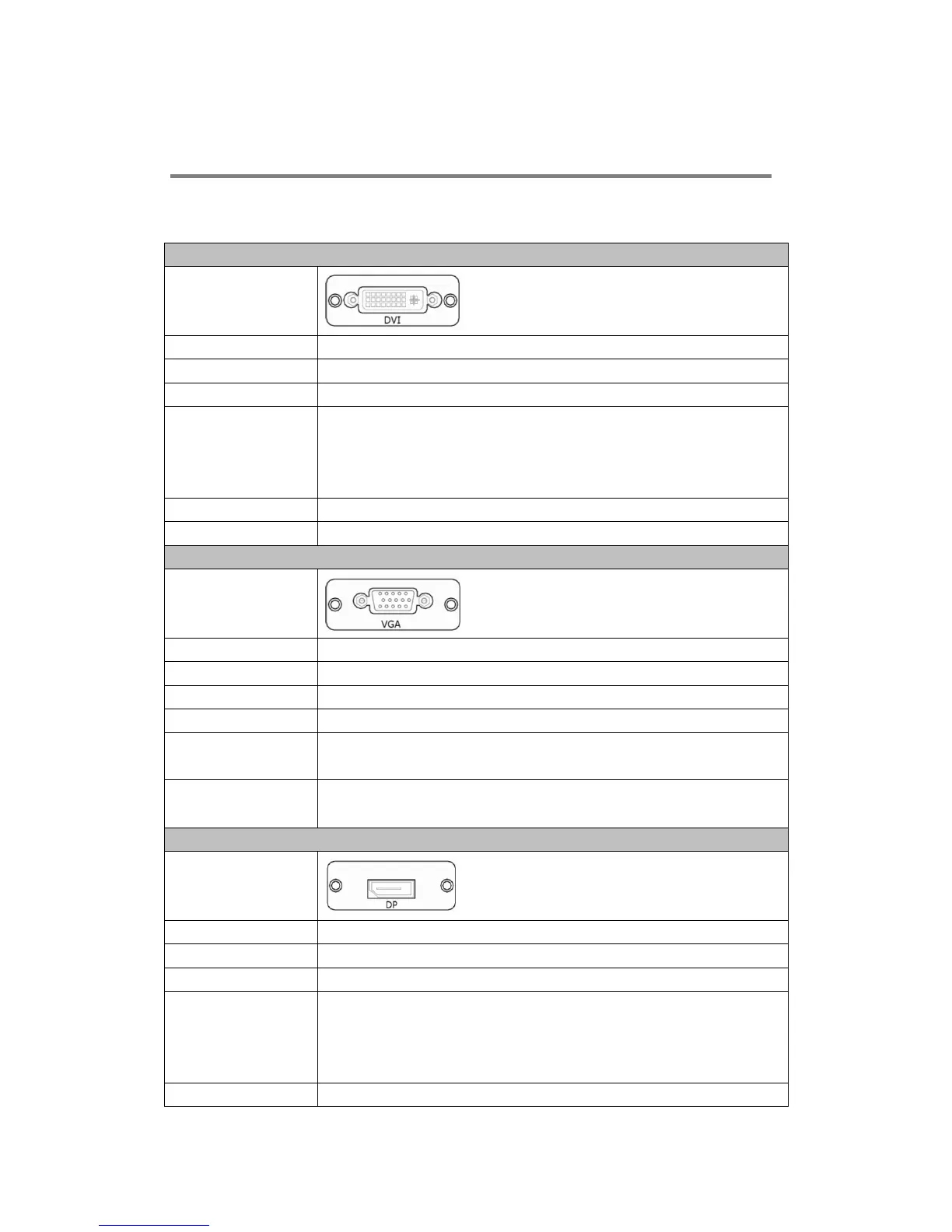

6.1 Specification
DVI Input (DVI optional module)
Interface Appearance
Board Size
52(L)×19.5(W)（mm）
Number of Inputs
9
Connector
Standard DVI-I socket
Supported Resolution
SMPTE：625/25/50 PAL, 525/29.97/59.94 NTSC,
1080P50/59.94/60, 720p50/59.94/60
VESA：800×600@60 I 1024×768@60 I 1280×1024@60 I
1600×1200@60 I 1920×1080@60 I 1920×1200@60 I 2048×1152@60
Signal Level
TMDS pwl, single pixel input,165MHz bandwidth
Format Standard
HDMI 1.3
VGA Input (VGA optional module)
Interface Appearance
Board Size
52(L)×19.5(W)（mm）
Number of Inputs
9
Connector
Standard DB15 Socket
Supported Standard
VGA-UXGA
Signal Level
R、G、B、Hsync、Vsync:0 to1Vpp±3dB (0.7V Video+0.3v Sync ) 75 ohm
black level: 300mV Sync-tip: 0V
Supported Resolution
VGA-UXGA (800×600@60 I 1024×768@60 I 1280×1024@60 I
1440×900@60 I 1600×1200@60)
DP Input (DP optional module)
Interface Appearance
Board Size
52(L)×19.5(W)（mm）
Number of Inputs
9
Connector
Standard
Supported Resolution
VESA: 3840×2160×24 I 3840×2160×25 I 3840×2160×30 I 4096×2160×24
SMPTE: 625/25/50 PAL, 525/29.97/59.94 NTSC,
1080P50/59.94/60 I 1080i50/59.94/60,
720p50/59.94/60
Supported Bandwidth
21.6Gb/s
