1.2.2 Front Panel

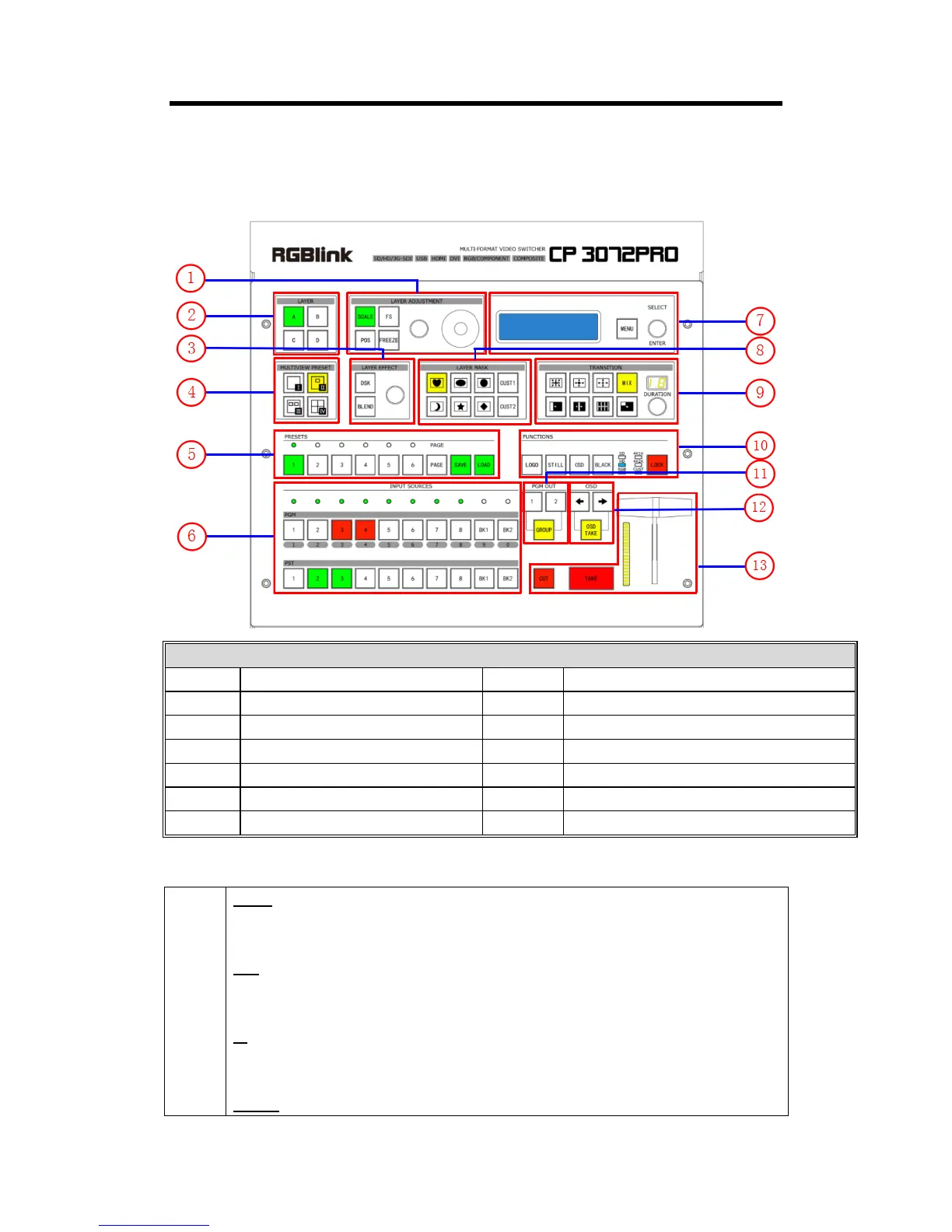

Panel Instruction
1
Layer adjustment area
8
Layer mask area
2
Layer selection area
9
Transition area
3
Layer effect area
10
Functions area
4
Multiview presets area
11
Independent effects switching area
5
Stored presets area
12
OSD edit area
6
Input sources area
13
Switch modes area
7
Menu and OLED display area
Layer Adjustment Area
1
SCALE
This button used for size and crop adjusting. If image quality distorts by improper
operation, it can be recover by reset.
POS
This button used for position adjusting. If image quality distorts by improper operation,
it can be recover by reset.
FS
Screen parameters setting button. Push the button, its LED light turns on, user can
choose full size or screen size.
FREEZE
