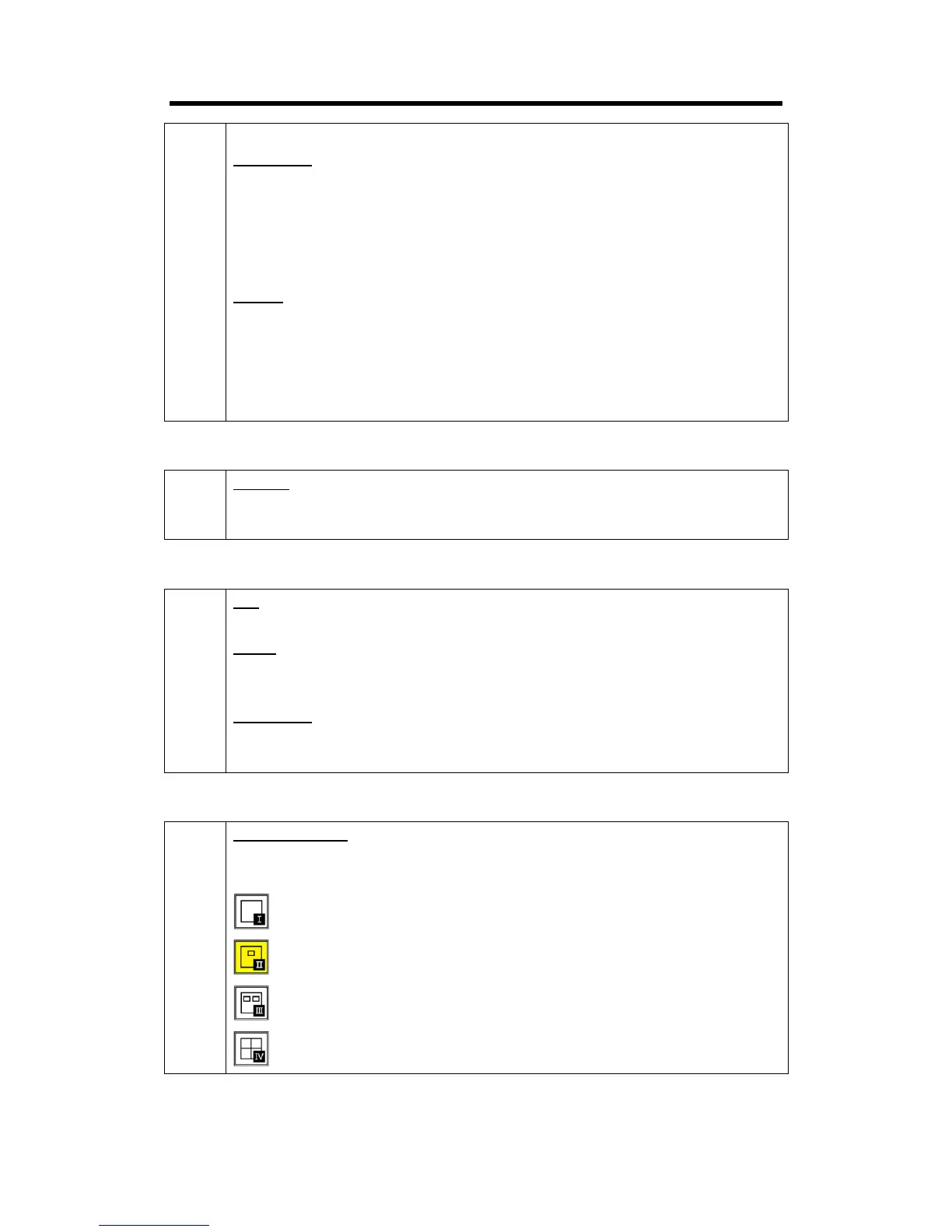

RGBlink CP 3072PRO User Manual

Chapter 1: Your Product
CP 3072PRO User Manual
11
Freeze the image or video.
Rotary Knob
For size and position adjustment and confirmation.
Push SCALE and control the rotary knob will active the display window to be ready for
size down.
Push POS and control the rotary knob will active the display window to be ready for
change position.
Joystick
For size and position adjustment.
Push SCALE and control the joystick will active the display window to be ready for size
down.
Push POS and control the joystick will active the display window to be ready for change
position.
Layer Selection Area
2
A/B/C/D
For adding or deleting the layer, the button light is lit when add the layer, off when
delete the layer, and flash when select the layer.
Layer Effect Area
3
DSK
DSK effect editing button. User can select the layer and set the position in DSK menus.
BLEND
BLEND effect editing button. User can select the layer and set the blending width in
BLEND menus.
Rotary Knob
Adjust the alpha of DSK layer.
For DSK and BLEND adjustment and confirmation.
Multiview Presets Area
4
Multiview Presets
Multiview mode selection, the button light is lit when selected, mainly for layout
setting quickly in multiview.
: 1P
: PIP CENT
: 3P.
: CP 3072PRO V1.2 can not support this function.
Stored Presets Area
