RGBlink CP 3072PRO User Manual

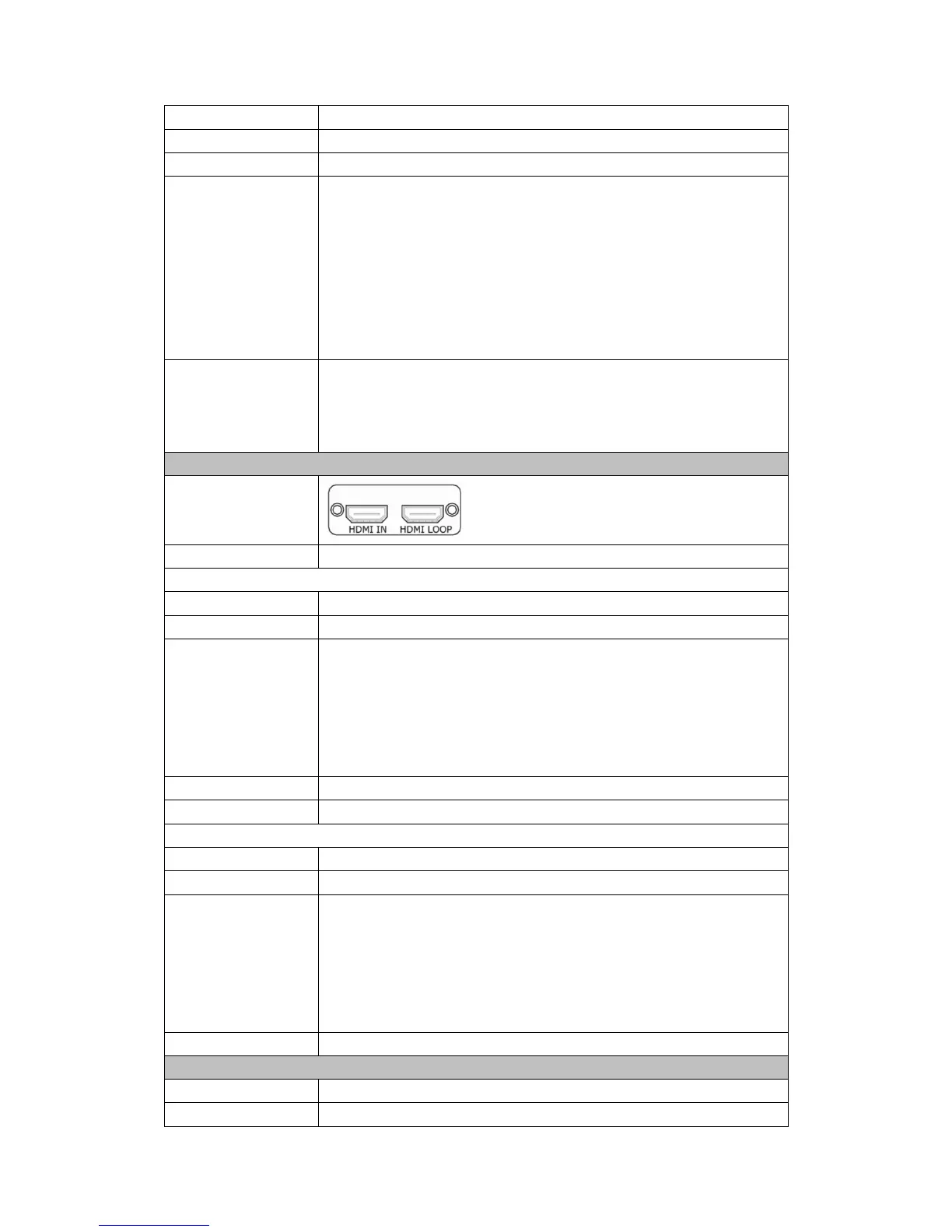

CP 3072PRO User Manual
45
Connector
Standard BNC Socket
Data Rate
2.97Gb/s, 2.97/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s and 270Mb/s
Supported Standard
SMPTE 425M - 3G Level A 和 Level B 格式
Supported Resolution
SMPTE 425M (3G Level A) 4:2:2: 1920×1080/60 (1:1) I
1920×1080/50 (1:1).
SMPTE 425M (3G Level B DS1 and DS2) 4:2:2：1920×1080/60 (2:1) I
1920×1080/50 (2:1)
SMPTE 296M (HD): 1280×720/50 (1:1) I 1280×720/50 (1:1)
SMPTE 125M (SD): 1440×487/60 (2:1), 525-line 487 generic
SMPTE ITU-R BT.656 (SD): 1440×576/50 (2:1),
625-line generic.
Balance
Belden 1694A cable:
150m at 2.97Gb/s
250m at 1.485Gb/s
480m at 270Mb/s
HDMI IN+HDMI LOOP (HDMI optional module)
Interface Appearance
Board Size
52(L)×19.5(W)（mm）
HDMI Input
Number of Inputs
3
Connector
Standard HDMI-A socket
Supported Resolution
SMPTE：625/25/50 PAL, 525/29.97/59.94 NTSC,
1080P50/59.94/60 I 1080i50/59.94/60,
720p50/59.94/60
VESA：800×600@60 I 1024×768@60 I 1280×720@60 I 1280×800@60 I
1280×960@60 I 1280×1024@60 I 1400×1050@60 I 1600×1200@60 I
1920×1080@60 I 1920×1200@60 I 2048×1152@60
Signal Level
TMDS pwl, single pixel input,165MHz bandwidth
Format Standard
HDMI 1.3
HDMI Loop Out
Number of Loop Out
3
Connector
HDMI standard type A interface
Supported Resolution
SMPTE：625/25/50 PAL, 525/29.97/59.94 NTSC,
1080P50/59.94/60 I 1080i50/59.94/60,
720p50/59.94/60
VESA：800×600@60 I 1024×768@60 I 1280×720@60 I 1280×800@60 I
1280×960@60 I 1280×1024@60 I 1400×1050@60 I 1600×1200@60 I
1920×1080@60 I 1920×1200@60 I 2048×1152@60
Format Standard
HDMI 1.3
HDMI PGM Output
Number of Outputs
2
Connector
HDMI standard type A interface
