PaperCut – Ricoh Embedded Manual Revision: 19 2012-10-26
Copyright © 2012 PaperCut Software International Pty. Ltd., All Rights Reserved. 38 of 41
Tip: Check the file [install-path]/server/log/server.log when testing. Any
scripting errors will be displayed as warning messages in the log.
Tip: A Javascript script may also be included in the pipeline. For example
ascii-enc|hex2dec|javascript:custom/card.js
Other advanced notes
 If both a regular expression and a converter are defined, the regular expression is
applied first. This means a regular expression can be used to clean up the input (e.g.
remove checksum or delimiters) before passing to a converter.
 In some special situations a custom JavaScript implementation may not be enough.
For example there may be a requirement to use a 3rd party system to decrypt the
number. PaperCut includes an advanced plugin architecture that the PaperCut
Software development team uses to implement these advanced converters. Please
contact support to discuss development options and costs.
 .

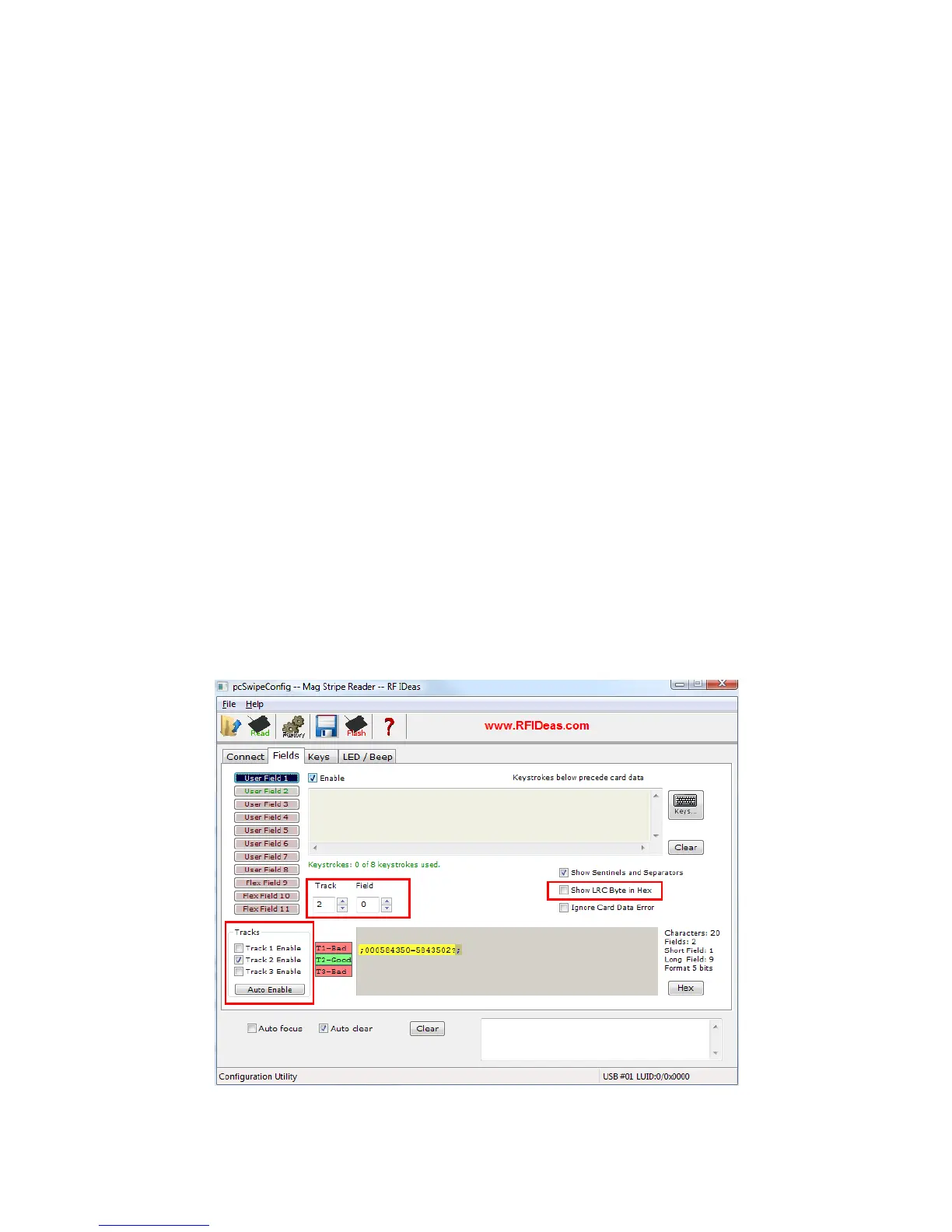

7.2 Configuration of RFIdeas pcSwipe magstripe reader
For the RFIdeas magstripe reader to work with the Ricoh Embedded application the card
reader must be re-configured using the pcSwipeConfig utility available from the RFIdeas
web site. Use this utility to configure the reader as pictured in the screenshots below.
 Enable fields 1 & 2 as shown and disable all other fields.
 Make other changes has highlighted in RED.
 Press the “Flash” button to save configuration to the card reader.
