Ricoh C2828 - Page 86

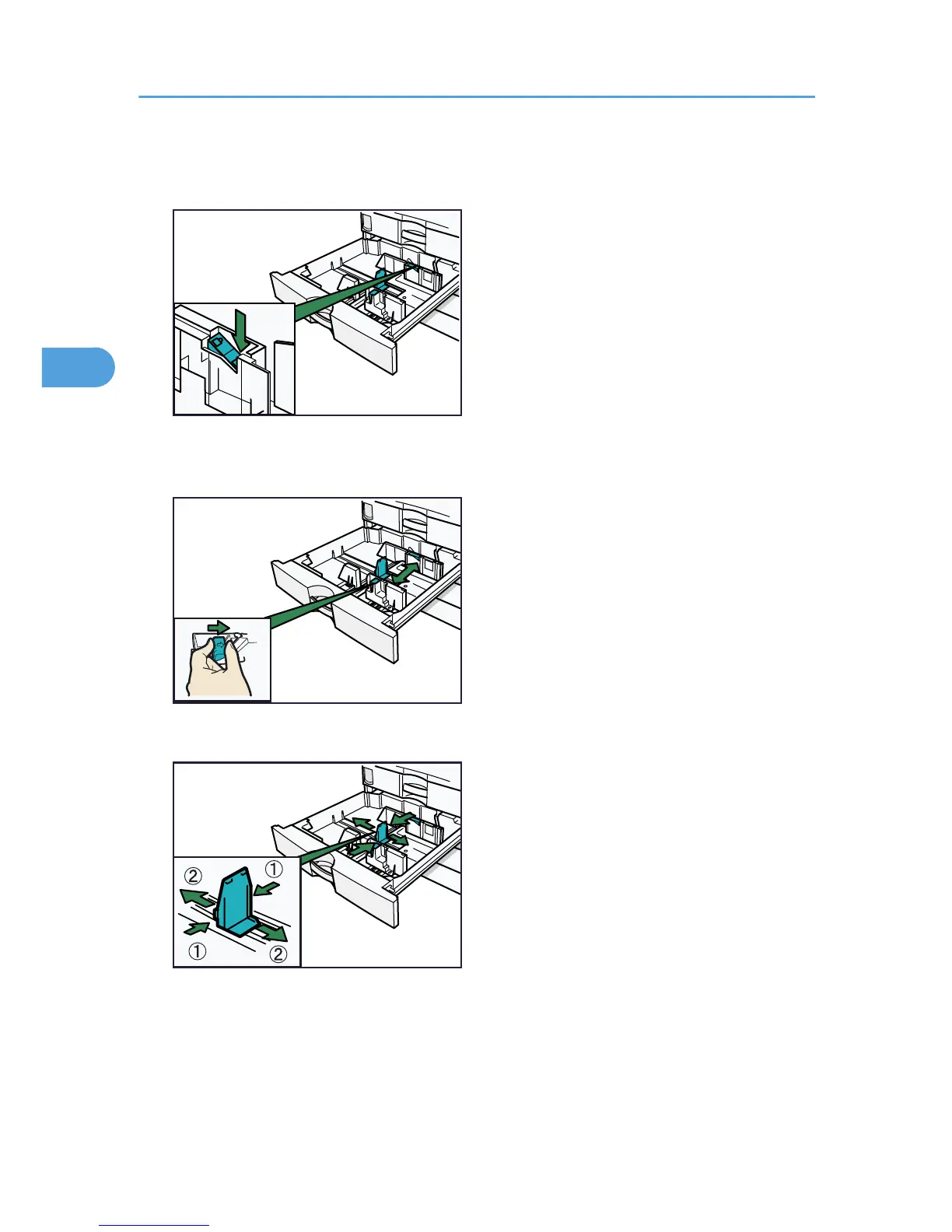

2. Remove paper if loaded.
3. Release the lock on the side fences.
BJA040S
4. While pressing down the release lever, slide the side fences until they are aligned with the
paper size you want to load.
BJA041S
5. Slide the end fence until it is aligned with the size of paper to you want to load.
BJA042S
6. Square the paper and load it print side up.
Re-lock the side fences again.
3. Adding Paper
84
3
