Ricoh CP6123L+ - When X and D Light up

x Clearing Misfeeds
55
4

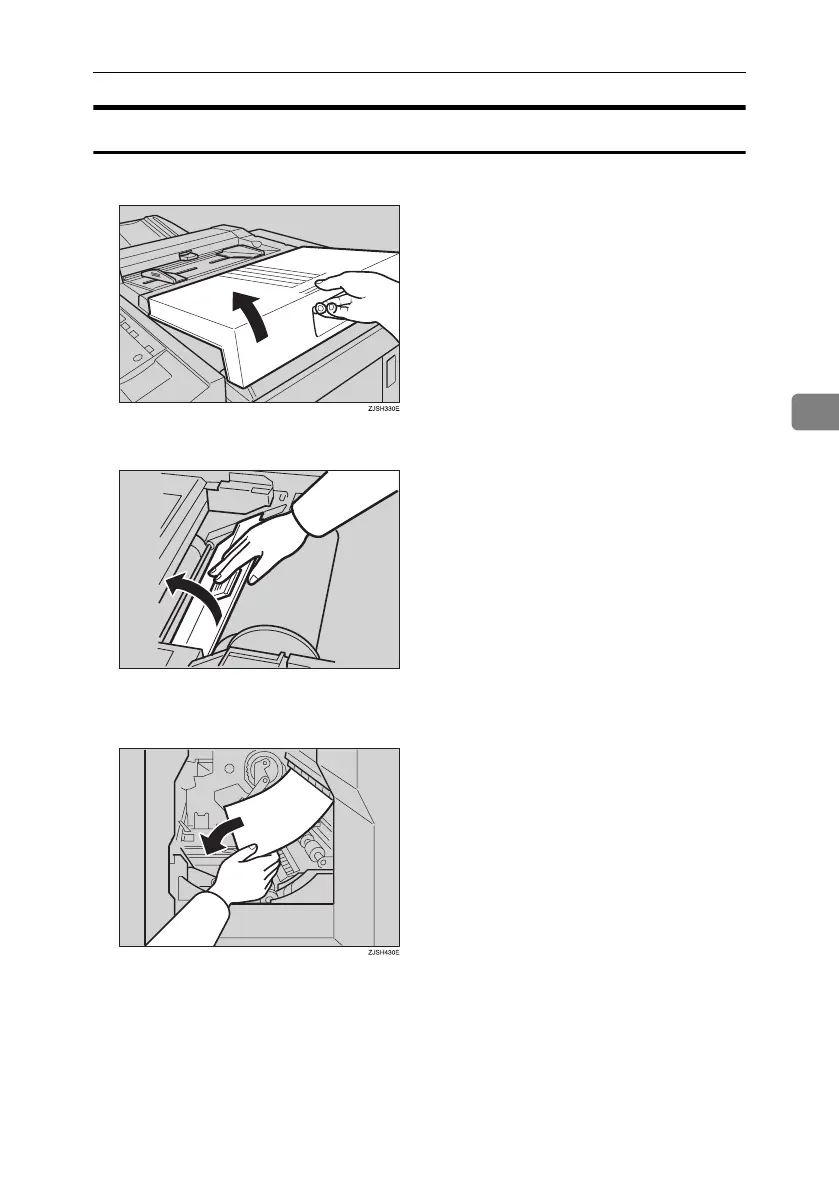

When “x” and “D” light up
A Open the right side cover.
B Open the plotter cover, and then remove the misfed master.
C If you could not remove the misfed master in steps B and C, take out the
drum and remove the misfed master from the inside.
D Close the right side cover.
TSLH02EE
