Exhaust Fan and Main Motor
D127/D128 4-18 SM
4.7 EXHAUST FAN AND MAIN MOTOR
4.7.1 EXHAUST FAN
1. Rear cover (
p.4-3 "Rear Cover")

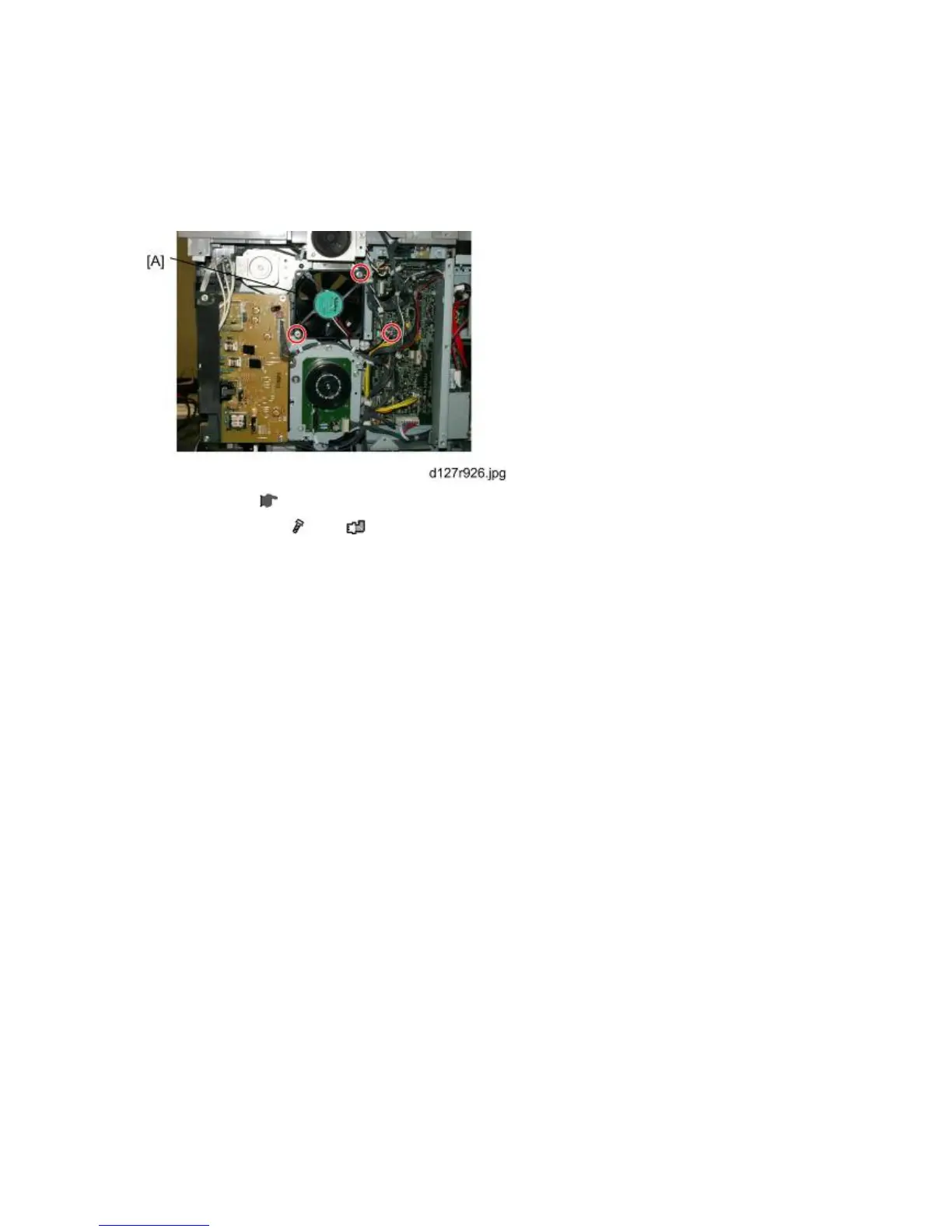

2. Exhaust fan [A] (
x 2, x 1)
