Ricoh D127 - Bypass Feed Clutch and Friction Pad

Paper Feed
D127/D128 4-26 SM

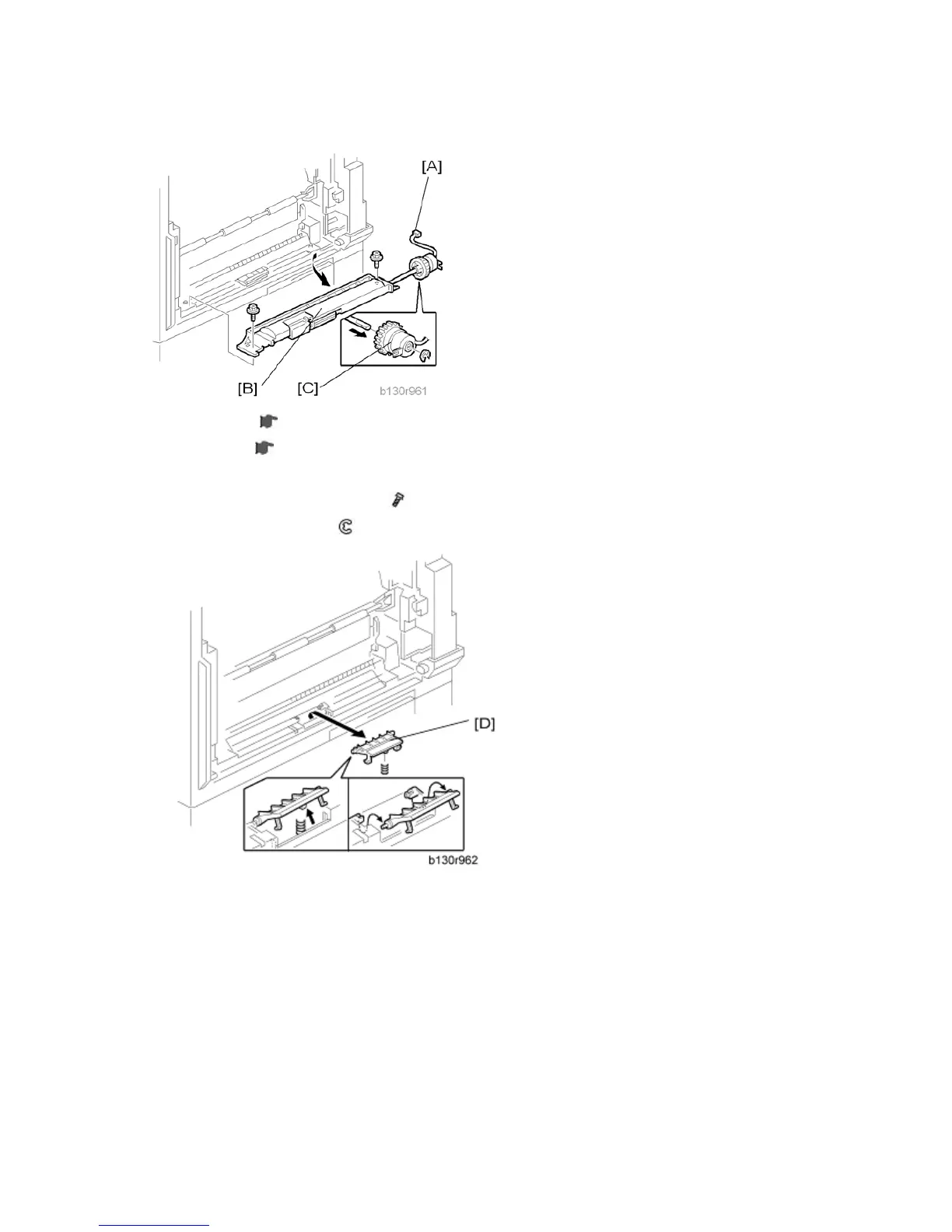

4.8.6 BYPASS FEED CLUTCH AND FRICTION PAD
1. Rear cover (
p.4-3 "Rear Cover")
2. Right door (
p.4-5 "Right Door")
3. Disconnect the bypass feed clutch connector [A] (CN93).
4. Bypass feed roller housing [B] (
x 2)
5. Bypass feed clutch [C] (
x 1)
6. Bypass friction pad [D]
