Exterior Covers and Operation Panel
D127/D128 4-4 SM
4.3.3 OPERATION PANEL

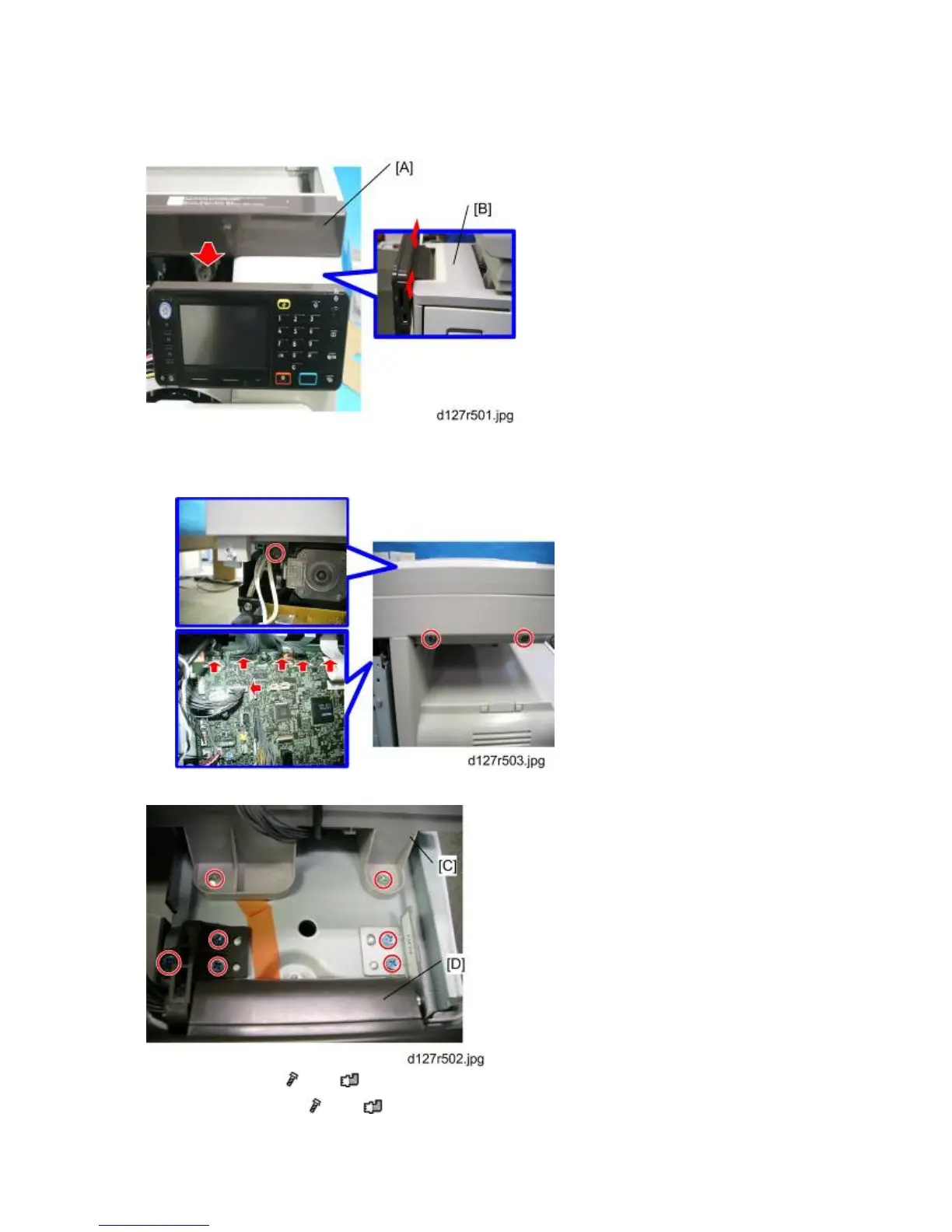

1. Remove the Scanner front cover [A].(Hook)
2. Remove the Right front cover [B].(Hook)
3. Remove the screws and the harnesses showed above for detaching the scanner unit.
4. Scanner unit [C] (
x 5, x 4)
5. Operation panel [D] (
x 5, x 2)
