Ricoh D127 - Scanner Unit; Scanner Cover and Exposure Glass

Scanner Unit
SM 4-7 D127/D128
Replacement
and
Adjustment
4.4 SCANNER UNIT
To clean the mirrors and lenses, use a blower brush or wet cotton.
4.4.1 SCANNER COVER AND EXPOSURE GLASS
Exposure glass is united with Scanner cover.
To clean the exposure glass, use alcohol or glass cleaner.
1. Platen cover or ARDF (
p.4-46 "ARDF Unit")
2. Scanner front cover [A] (Hook)

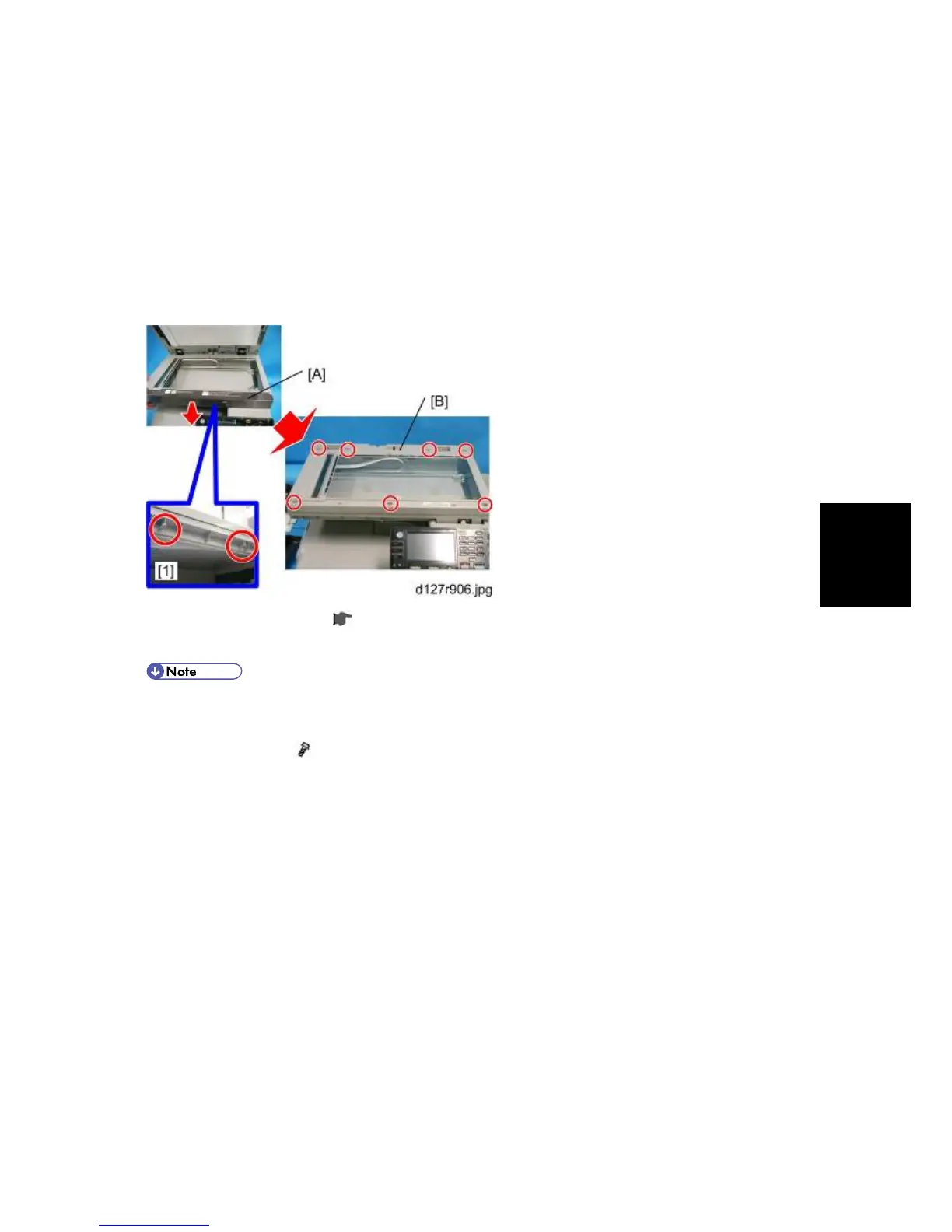

 The front scanner cover is attached by 2 of the hooks the picture [1] shows. Pulling the
cover downward to keep the hooks off while removing, makes detaching easy.
3. Scanner cover [B] (
x 7, Hook)
