Ink Supply System
SM 6-21 J007/J010/J011
J007/J010/
J011

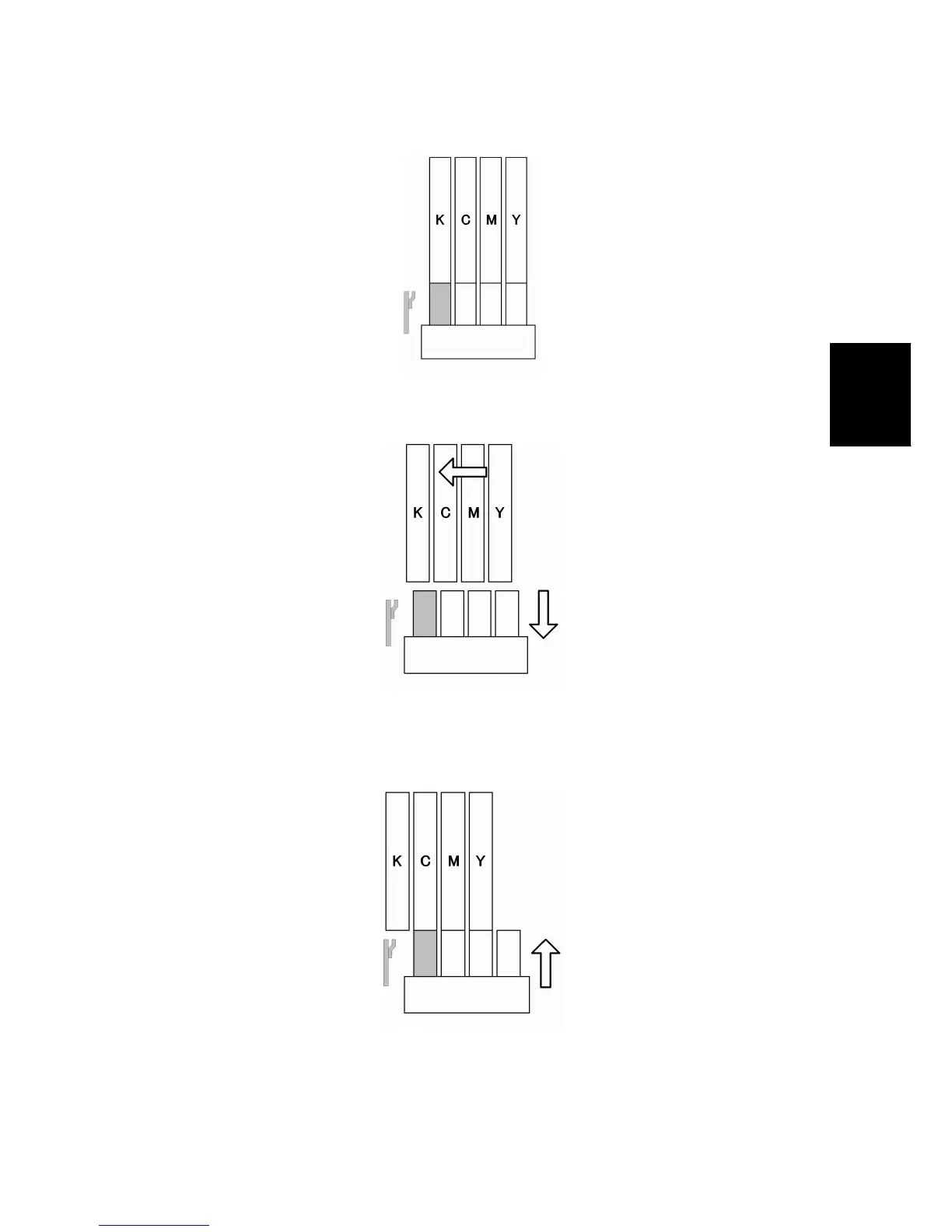

Cleaning starts with the carrier and print heads capped and resting on top of the
maintenance unit.
When the cleaning cycle starts, the maintenance unit is lowered by the
rotation of the main shaft. The cams rotate away from the bottom of the unit.
At the same time, the carriage moves the print head unit to the left.
The carriage moves the first print head (in this example, "KC" of the J007/J010) above the
first vent of the maintenance unit.
