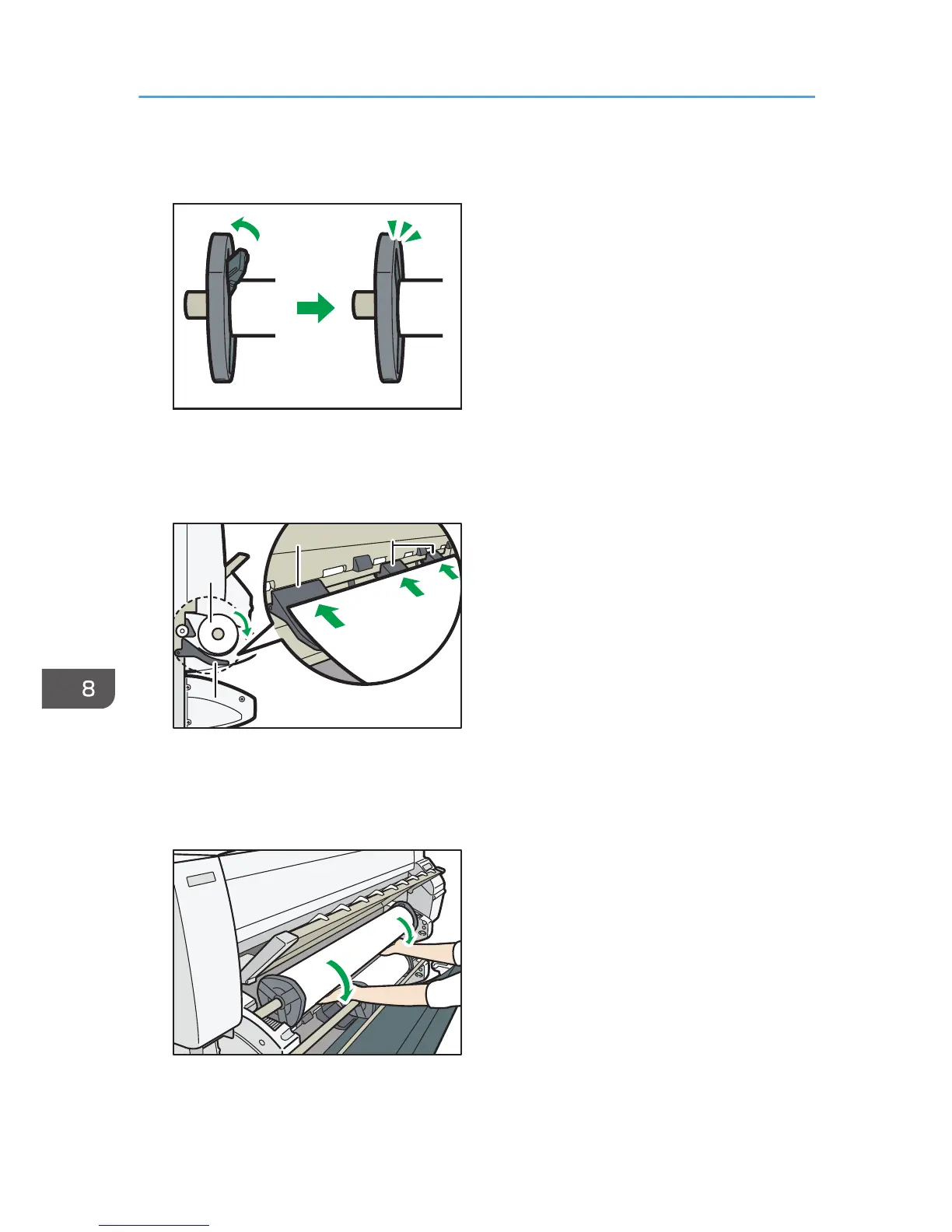

20. When loading a 50.8 mm (2 inches) paper roll, make sure that all six paper roll
adjustment levers are fully open.
CPT041
When loading a 76.2 mm (3 inches) paper roll, proceed to step 21.
21. Hold the edge of the paper with your hands underneath the paper, and feed paper so
that the edge of the paper passes over the guides behind the paper roll.
CPT024
2
2
2
2
2
2
1
1
1. Paper roll
2. Guides
Be sure to hold the right and left side of the paper roll with both hands.
CPT034
8. Adding Paper and Ink
114
