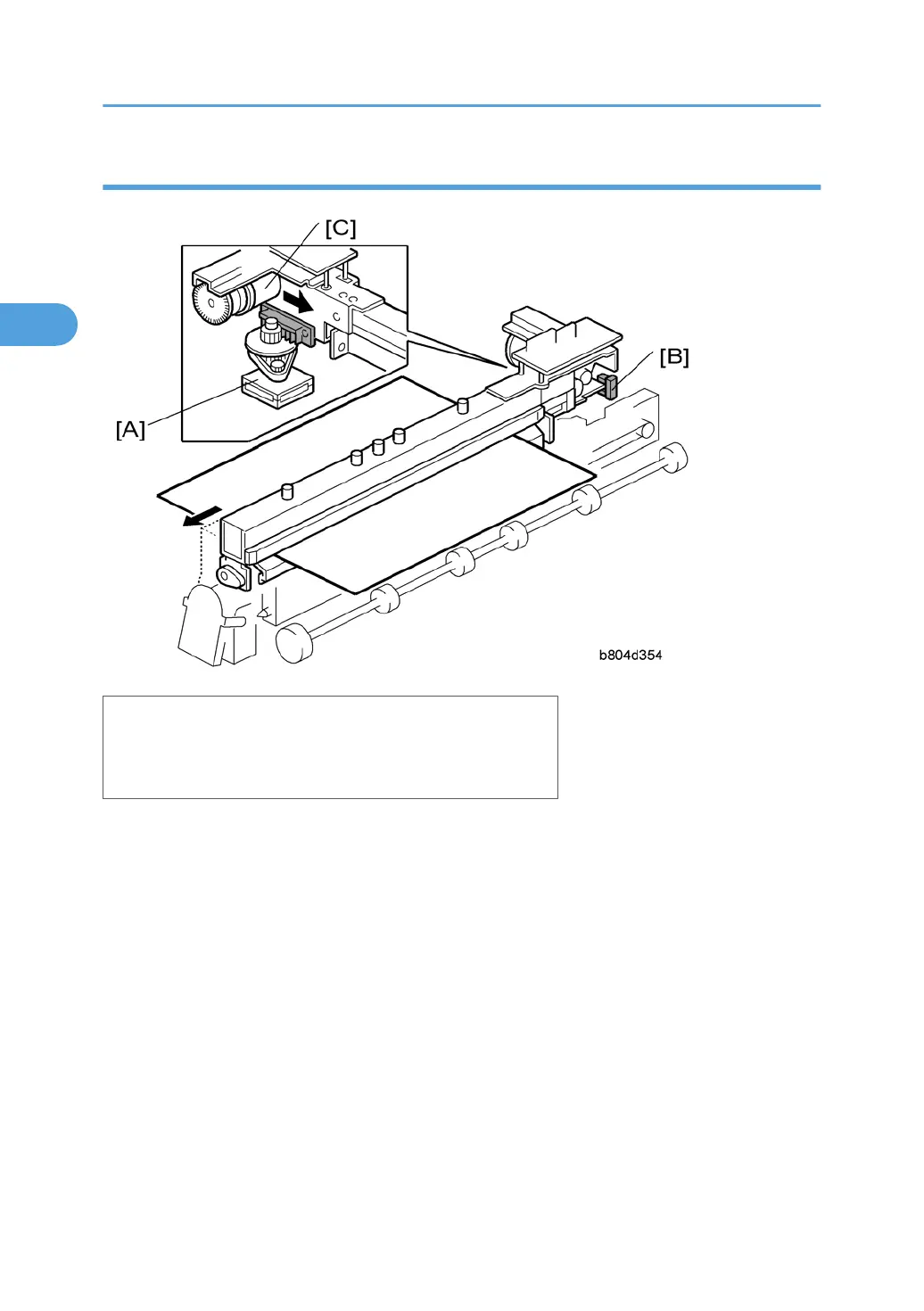

Punch Unit Movement
[A]: Punch Movement Motor (M9)
[B]: Punch Movement HP Sensor (S21)
[C]: Punch Drive Motor (M24)
The punch movement motor (M9) [A] extends and retracts the punch unit to position it at the correct position
for punching.
The punch movement HP sensor (S21) [B] detects the position when it retracts, switches off the punch
position movement motor, and stops the punch unit at its home position.
The punch drive motor (M24) [C] fires the punches that punch holes in the paper below.
2. Detailed Section Descriptions
74
