The entire process is regulated by the HortiMaX CX500 process controller. Its tasks
include:
ensuring that the correct fertigation recipe is mixed (proportion of fertilizers
and water).
controlling the valves to ensure that the water reaches the crop.
2.3 Product specifications
The HortiJet Pro is available in various configurations, because different dosing
channels, pumps, sensors and I/O modules can be added to the HortiJet Pro. This is
described in the following sections.
2.3.1 Basic configuration

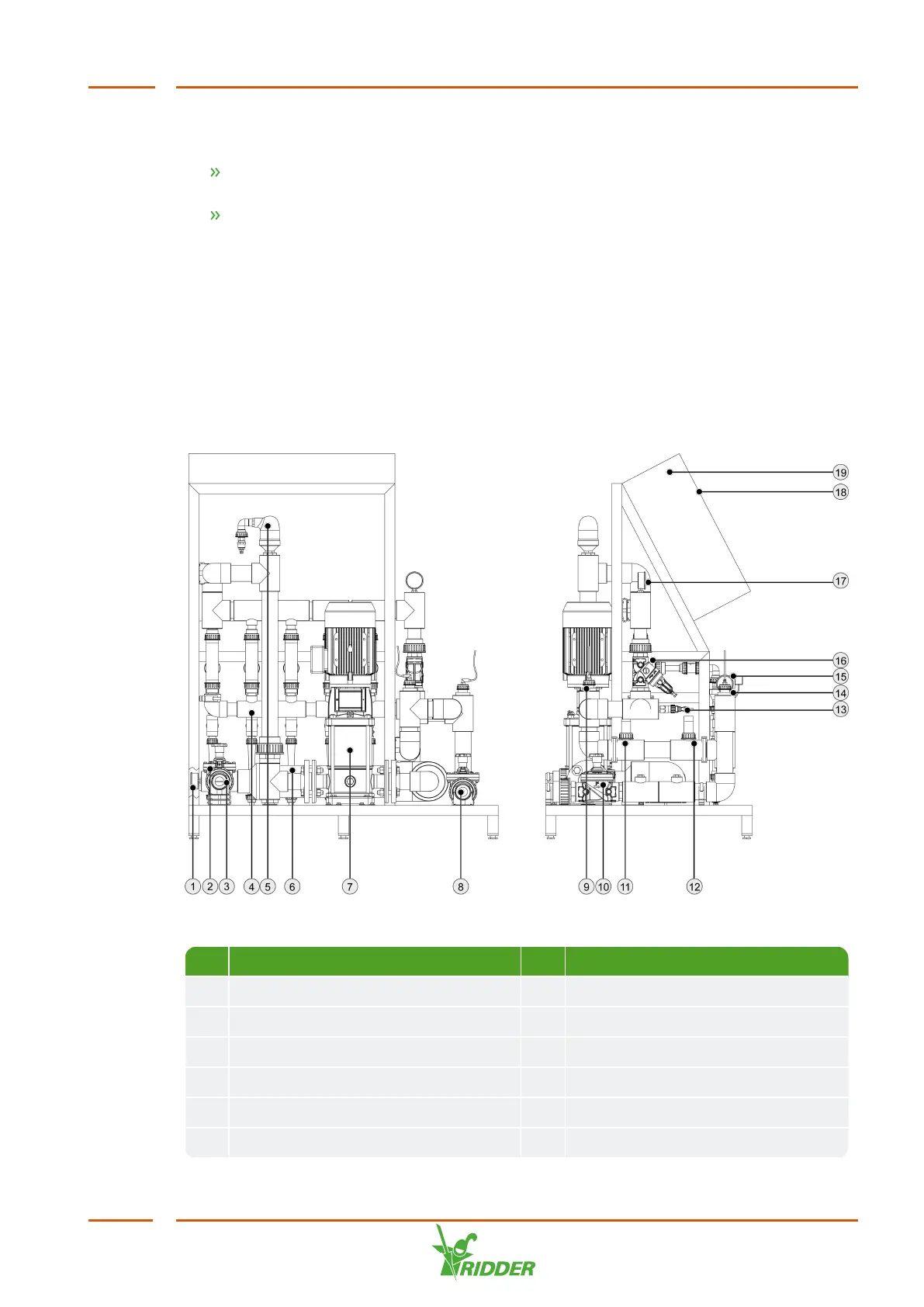

Figure 2-2 is a diagram of the components of the HortiJet Pro.
Figure 2-2: Front and side view of the HortiJet Pro.
No. Name No. Name
1 Manometer for the PSV 11 pH verification sensor
2 PSV 12 pH control sensor
3 HortiJet outlet 13 Pressure switch
4 Distribution pipe 14 EC control sensor
5 Air release valve 15 Pressure gauge for PRV
6 Mixing chamber 16 PRV in the compensation channel
