No. Name No. Name
7 HortiJet pump 17 Pressure gauge for the PRV in the
compensation channel
8 HortiJet inlet 18 Power switch
9 EC verification sensor 19 (Panel) cabinet
10 PRV
2.3.2 Dosing channels
This section describes the components of a dosing channel.

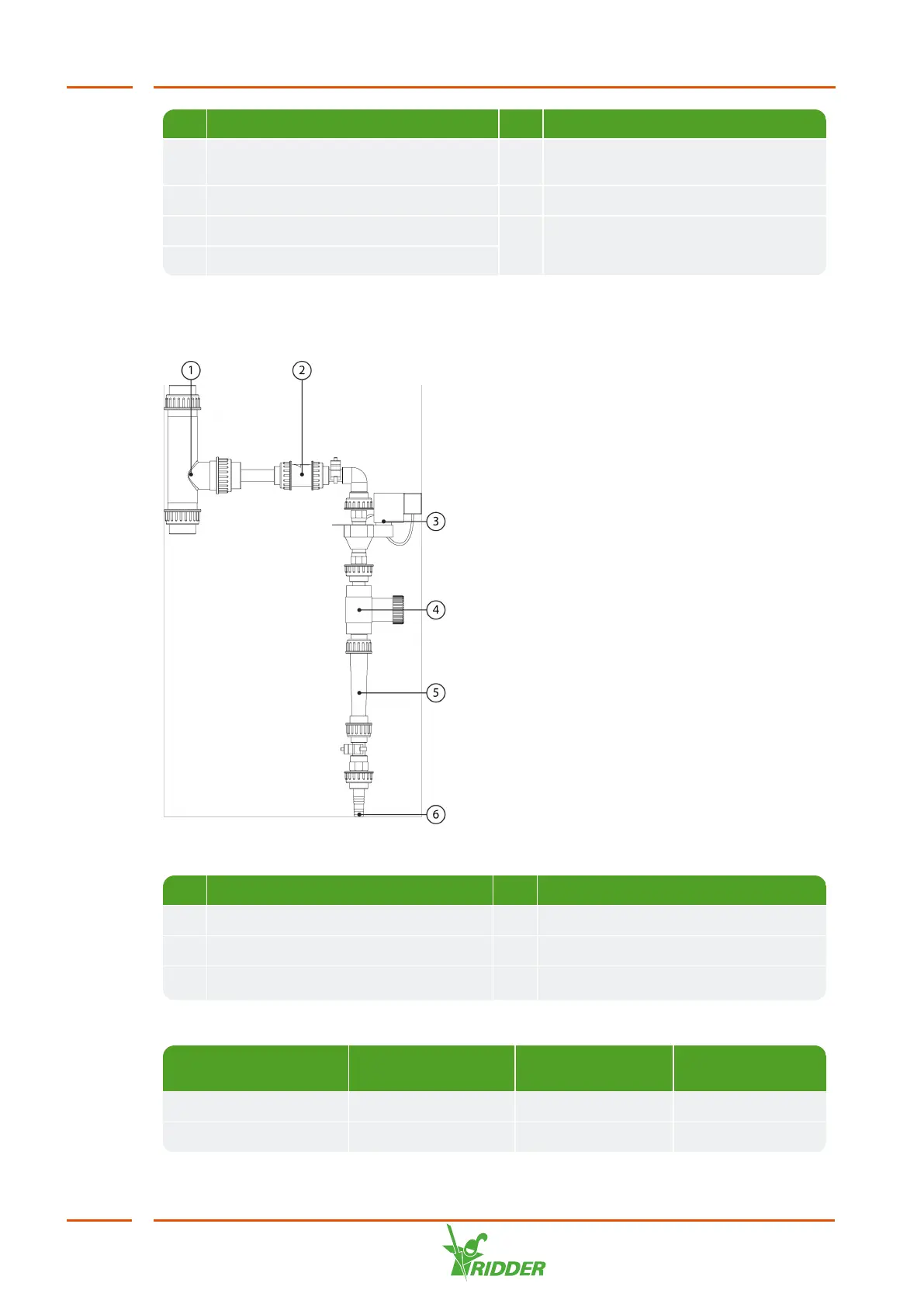

Figure 2-3: Side view of dosing channel
No. Name No. Name
1 Venturi 4 Needle valve
2 Check valve 5 Sight glass / flow meter
3 Dosing valve (or magnet valve) 6 Position for suction hose
The available dosing channels are:
Dosing channel
capacity*
Dosing channel
type**
Nitric acid
resistance
In HortiJet
type***
1000 L/h fertilizer max. 0.5% (m/m) HortiJet Pro 1000
600 L/h fertilizer max. 0.5% (m/m) HortiJet Pro 600
HortiJet Pro
