No. Name No. Name
3 EC control sensor 6 EC verification sensor
Depending on the configuration, the following sensors can be added:
EC sensor: the EC sensor measures the concentration of fertilizers in the water.
pH sensor: the pH sensor measures the acidity level of the water.
You can have zero, one or two sensors of both types. The HortiJet Pro is supplied
without sensors as standard.
If there is one EC / pH sensor: this is the control sensor.
If two EC / pH sensors are present: the verification sensor checks the
functioning of the control sensor.
On the HortiJet Pro, the positions of the sensors for the HortiJet-Go! are capped.
Please consult the supplied OEM manuals for the correct use and maintenance of the
relevant components.
2.3.5 I/O modules
Peripherals (inputs and outputs) can be connected to an I/O module. The HortiJet Pro
uses I/O modules from the CompactiMa series; these I/O modules are also called
CompactiMa modules. You mount the modules in a cabinet by simply clicking them
into place. Wires fitted with ferrules can be inserted into a module without any tools.
The table below provides an overview of the various types of CompactiMa modules in
the HortiJet Pro:
Module type When relevant
DO16-AI16 Always
EC2-pH2 If the EC, pH and/or flow are measured.
Other types of CompactiMa modules are not part of the HortiJet itself, but can be
supplied as accessories.

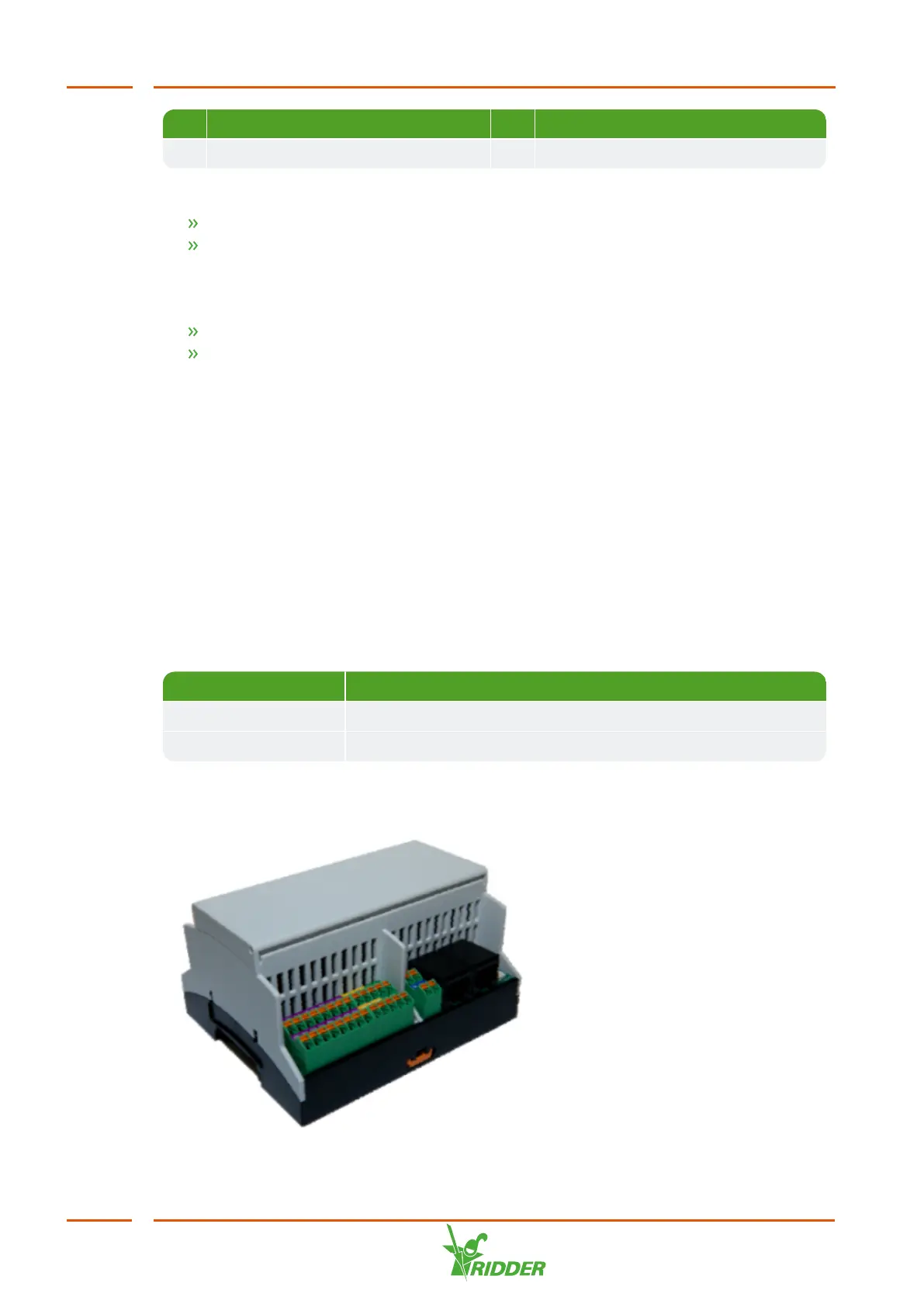

Figure 2-5: Example of a CompactiMa I/O module.
HortiJet Pro
14
