off current value (10 mA, can be set by user), or the temperature that the external temperature
sensor tested is greater than the cut off temperature value, the output will be cut off automatically.
Battery with protection board needs to be charged with red and black terminals. The charging
voltage and current should be set on your own.
It is strongly recommended to use the original charger to charge the battery. The charging
function of this machine can only serve as a temporary replacement, not for long-term use. You need
to know the battery parameter well so that you can use it to charge, There is a risk of fire and
explosion during the charging process if you use the wrong way to charge.
1.4.2.2 Main Page Output Voltage and Current Setting
Output voltage and current setting operation video：
https://drive.google.com/drive/folders/1NZW7k3-Kyc5YgIh-bWn8gBGaY5xo7_Lm?usp=sharing
Press or button can switch the current range between 6A and 12A
(only for
RD6012P user). When you change the current range, the output will be turned off.
Press button to set the output current value, you can use encoder potentiometer to
adjust the setting value, and it will be applied directly. And you will not set the value which exceeds
the limit in this way, press button to move the cursor. When press the encoder
potentiometer to return, it will be auto saved to , Of course you
can use keypad to type in the value, and press to confirm, and
it will save the set value and set current range to , if you set a

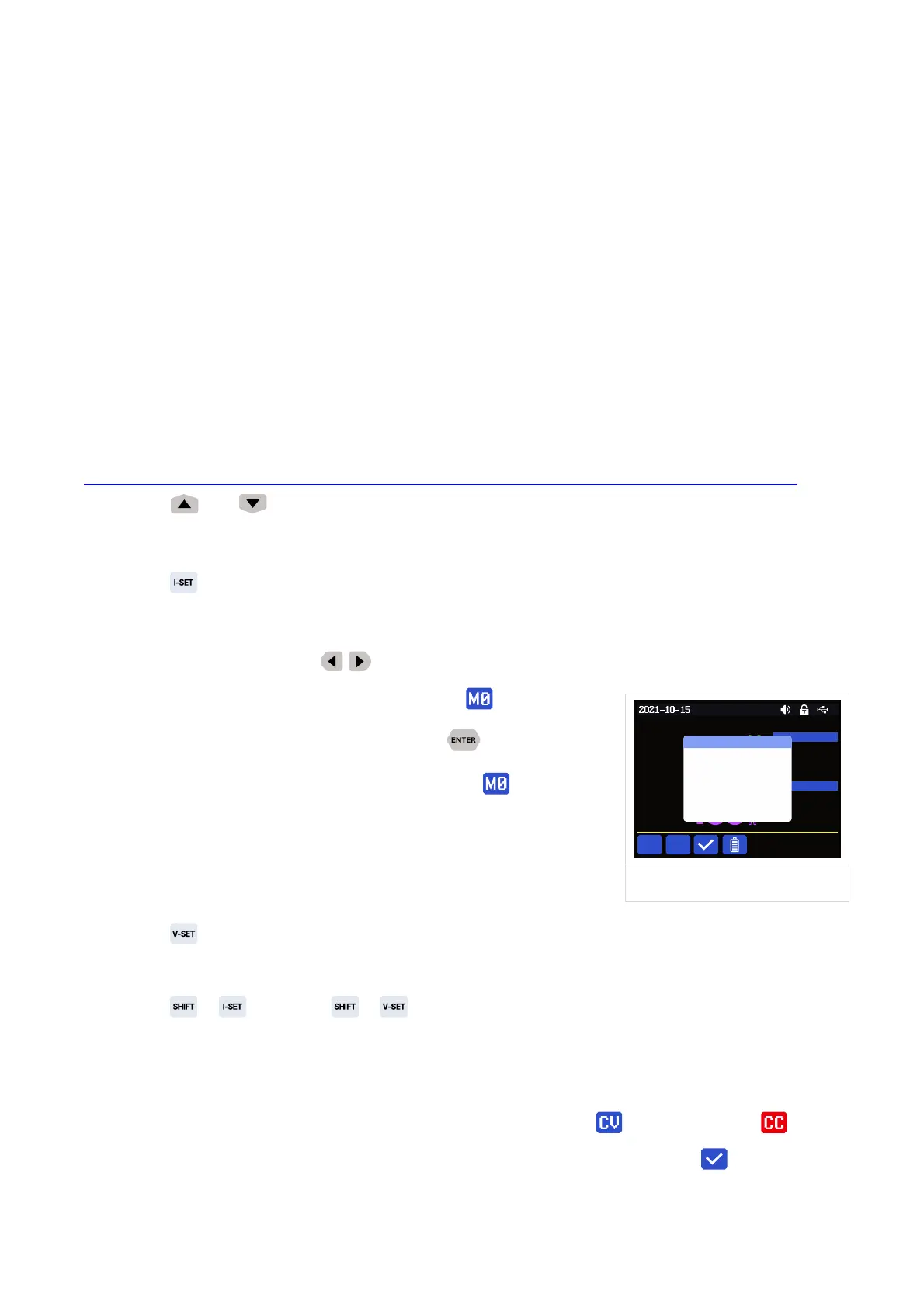

value exceeds the limit, it will prompt like what shows in Figure 1. If
you set the wrong value, you can press encoder potentiometer to
cancel.
Press button to set the output voltage value, the operation way is similar to output
current setting.
Press + button / + button to set the over current protection/ over voltage
protection value. The operation method is similar to output current setting. If you want to set the
over current auto cut off function, your OCP value should be lower than the Current setting value.
When the device is under constant voltage mode, it will show , and it will show when
under constant current mode; when the device works normally it will show at protection
15:19:17 O-12A
60.000
V
12.000A
720.00W
0M CV
000.000Ah
A12.200
V62.000
protect set
A12.100
V60.000
V&a set
I NPUT: 68. OOV
Set Error
To Next Page
