Technical description of the burner

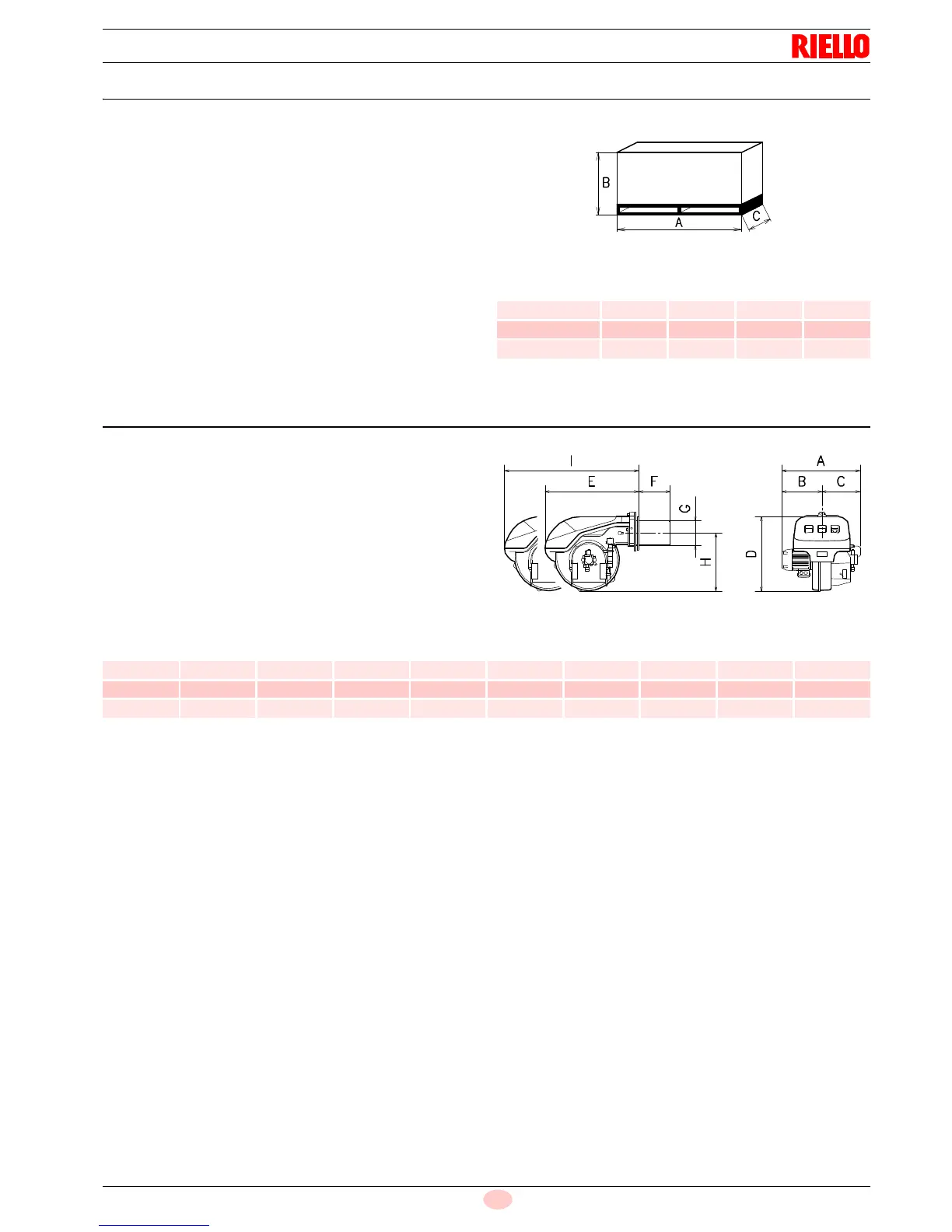

4.5 Packaging - Weight
• The burners are shipped in cardboard boxes with the maxi-
mum dimensions shown in Tab. C.
• The weight of the burner complete with packaging is indicated
in Tab. C.
Tab. C
4.6 Overall dimensions
Approximate measurements.
The maximum dimensions of the burner are given in (Fig. 2).
Bear in mind that inspection of the combustion head requires the
burner to be opened and the rear part withdrawn on the slide
bars.
The maximum dimension of the burner when open is give by
measurement I.
(1)
Blast tube: short-long
Tab. D
mm ABCkg
RL 70 1400 750 700 63
RL 100 1400 750 700 65
RL 130 1400 750 700 70
Fig. 1
D36
Fig. 2
D686
mm ABCDE
F
(1)
GH
I
(1)
RL 70 611 296 315 555 680 250 - 385 179 430 951 - 1086
RL 100 627 312 315 555 680 250 - 385 179 430 951 - 1086
RL 130 644 338 306 555 680 250 - 385 189 430 951 - 1086
