RIGOL Chapter 1 Programming Overview
1-2 DP800 Programming Guide
To Build Remote Communication
You can build the remote communication between DP800 and PC over USB, LAN, RS232 or GPIB (option,
can be extended via the USB-GPIB interface converter) interface.
Note: the end mark of the command sent through RS232 interface is "\r\n".
Operation Steps:
1 Install the Ultra Sigma common PC software
Download the Ultra Sigma common PC software from
www.rigol.com and install it according to the
instructions.
2 Connect the instrument and PC and configure the interface parameters of the instrument
DP800 supports USB, LAN, RS232 and GPIB (option, can be extended via the USB-GPIB interface
converter) communication interfaces, as shown in the figure below.

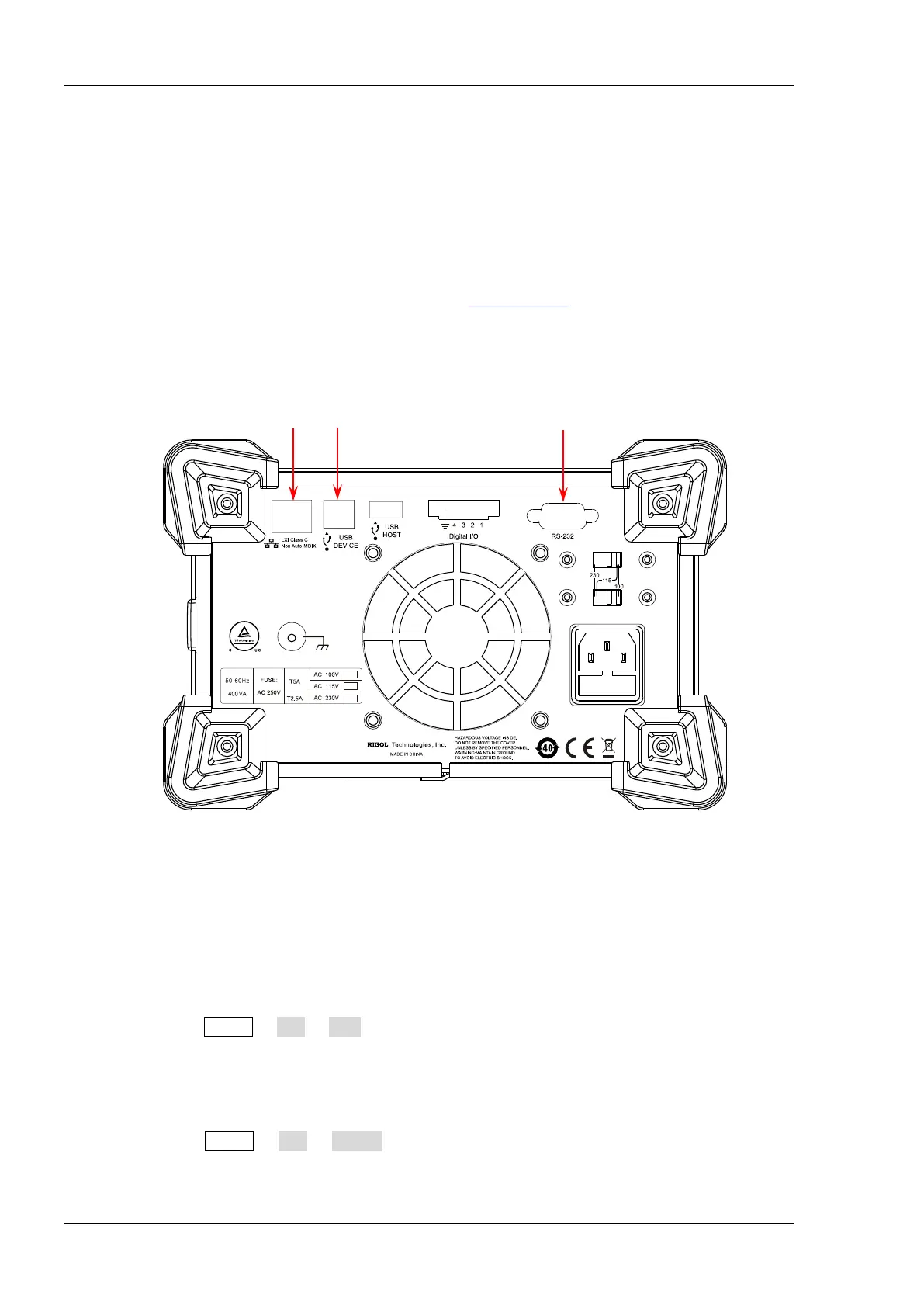

Figure 1-1 DP800 Communication Interfaces
(1) Use the USB interface: connect the USB Device interface at the rear panel of DP800 and the USB
Host interface of the PC using USB cable.
(2) Use the LAN interface:
Make sure that your PC is connected to the local network.
Make sure whether your local network supports DHCP or auto IP mode. If not, you need to
acquire the network interface parameters available, including the IP address, subnet mask,
gateway and DNS.
Connect DP800 to the local network using network cable.
Press Utility I/O LAN to configure the IP address, subnet mask, gateway and DNS of
the instrument.
(3) Use the RS232 interface:
Connect the RS232 interface with the PC or data terminal equipment (DTE) using RS232
cable.
Press Utility I/O RS232 to set interface parameters (baud rate, parity and etc) that
match the PC or terminal equipment.
To Next Page
