To Specify the Measurement Range
Press Measure  Range to open the measurement range setting menu. In this
menu, press Range to set the measurement range of one-key measurement to
“Screen” or “Cursor”.

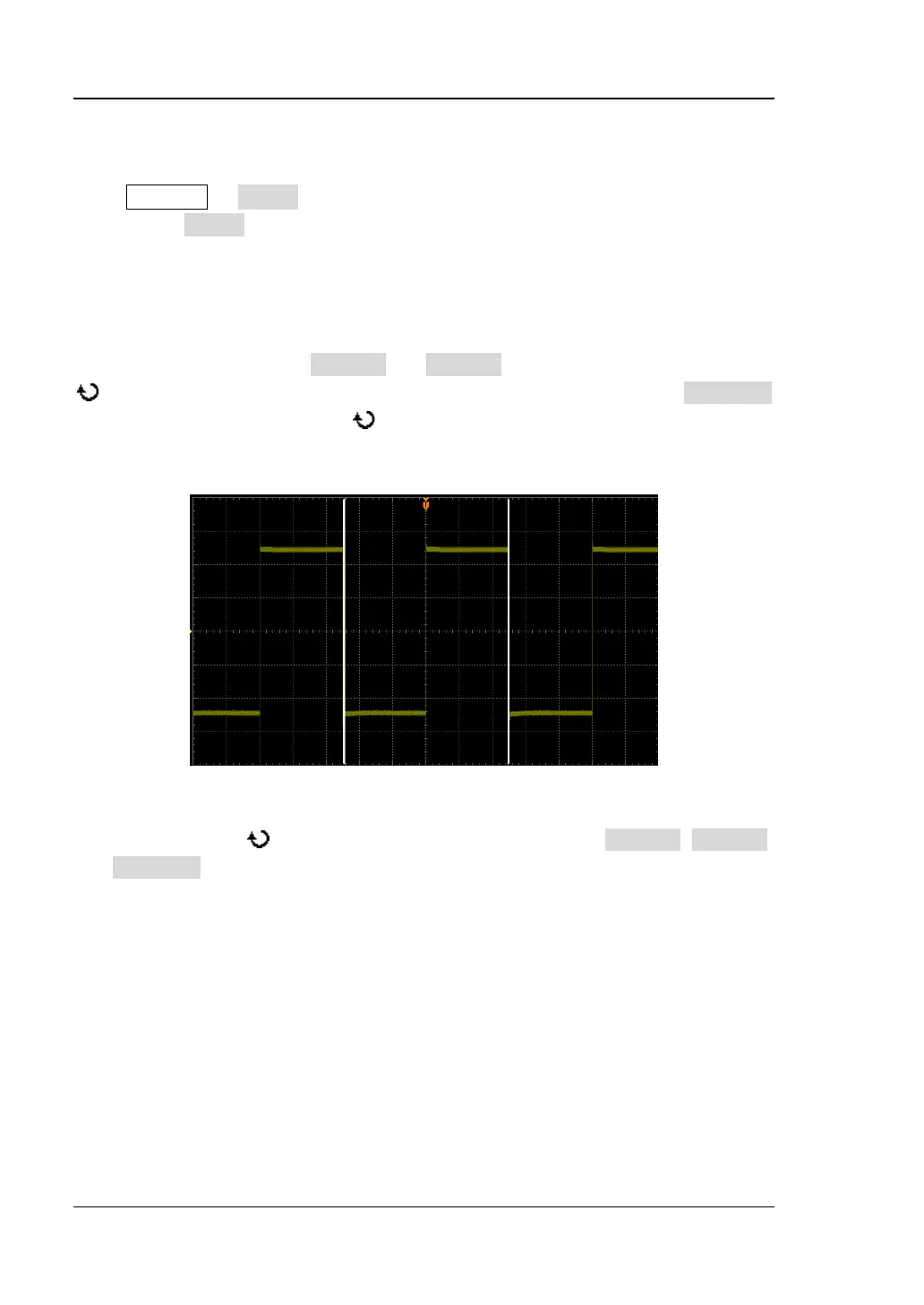

When “Cursor” is selected, two cursor lines (as shown in the figure below) appear on
the screen. You can determine the measurement range by adjusting the positions of
cursor A and cursor B. Press CursorA and CursorB and turn the multi-function knob
to adjust the positions of cursor A and cursor B respectively. Or press CursorAB
and turn the multi-function knob
to adjust the positions of cursors A and B at the
same time (the disatnce between the two cursors remains unchanged).
Note: When the measurement range setting menu is opened, pressing the
multi-function knob continuously can quickly switch among CursorA, CursorB
and CursorAB.
