RIGOL Chapter 12 Store and Recall
12-2 DS4000E User’s Guide

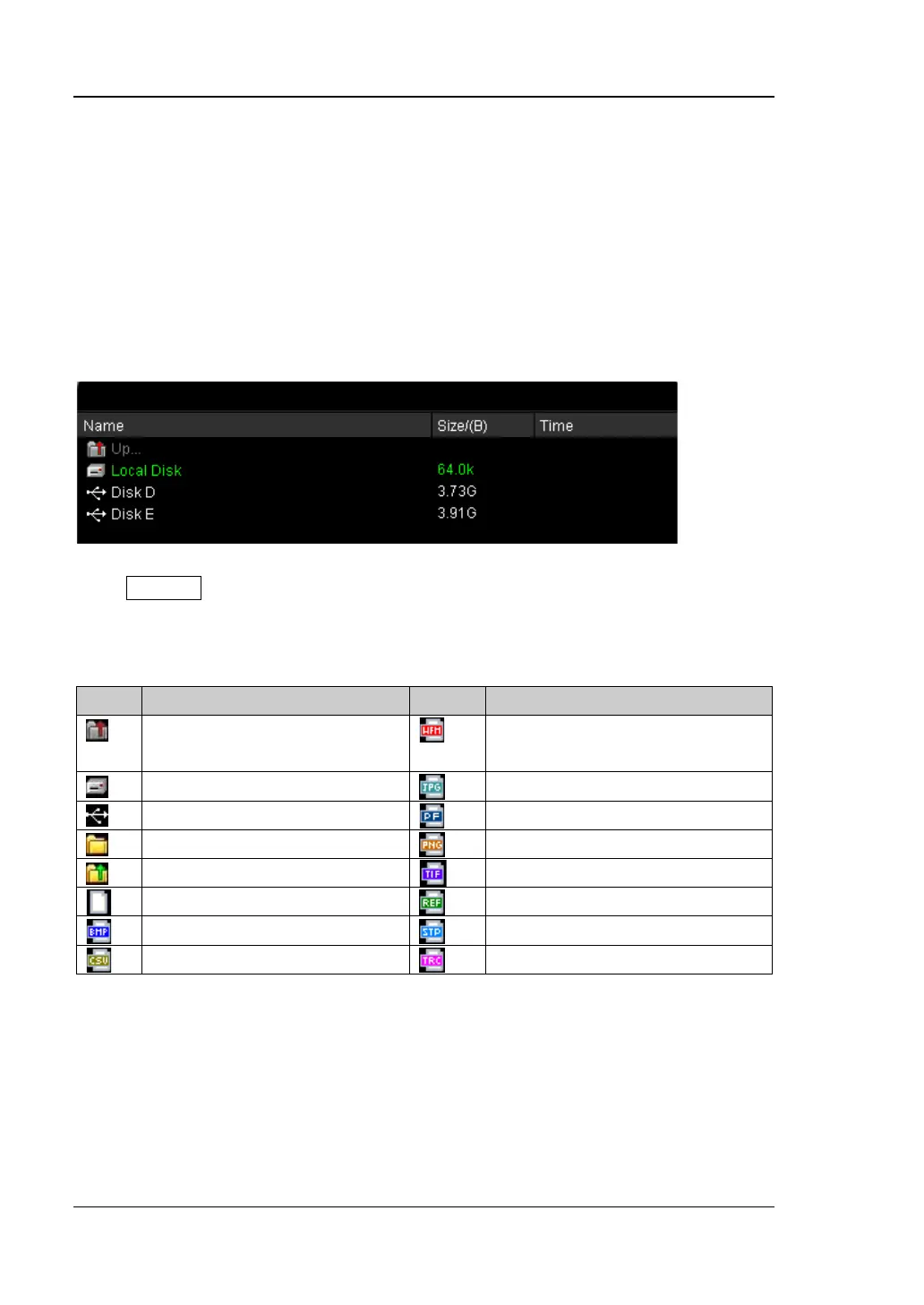

Storage System
The internal memory (Local Disk) of DS4000E can store at most 10 setting files, 10
reference waveform files and 10 mask files of the Pass/Fail test. Besides, this
oscilloscope provides two USB Host interfaces (one located on the front panel and
another on the rear panel) used to connect USB storage devices for external storage.
The USB storage device connected is marked as “Disk D” (front panel) and “Disk E”
(rear panel). You can select a desired disk on the interface below.
Press Storage to enter the store and recall setting interface. When performing the
store or recall operation, the following icons might be displayed.
Table 12-1 Probable Icons
Icon Description Icon Description
Return to the previous disk
management interface
Waveform File
Local Disk Memory
JPEG File
External USB Storage Device
Pass/Fail Mask File
Folder
PNG File
Return to the previous folder
TIFF File
Unknown File Reference Waveform File
Bitmap File Setting File
CSV File Trace File
