Chapter 7 Protocol Decoding RIGOL
DS4000E User’s Guide 7-5

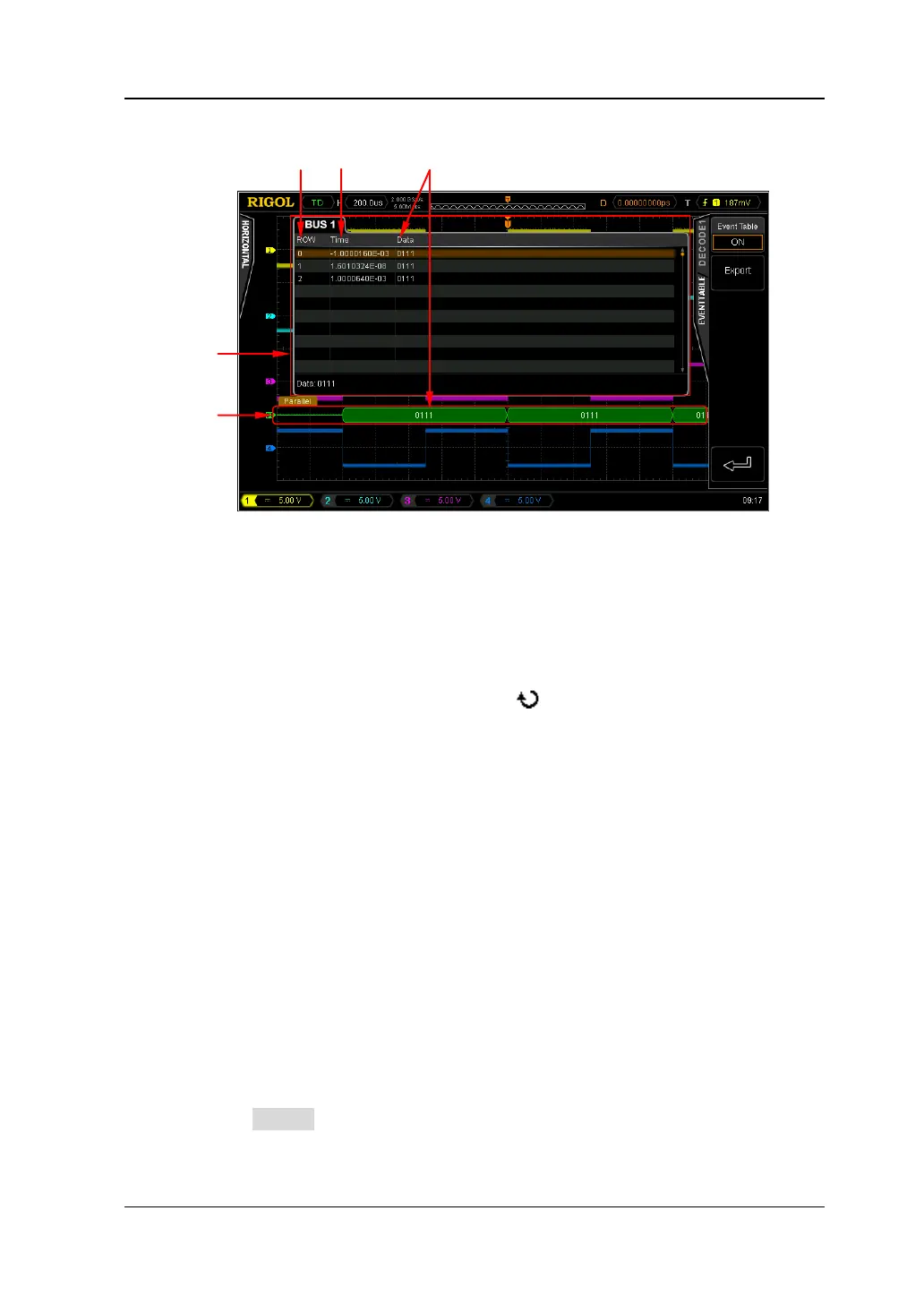

Figure 7-2 Parallel Decoding
The event table displays the detailed decoding information (include the
decoded data as well as the corresponding line number and time) of the
waveform on the screen in time order. At most 10 lines of decoding
information can be displayed on one page (the line number starts from 0).
You can turn the multi-function knob
to select the specified line and
view the corresponding decoding information. The line currently selected is
highlighted with brown shading and the decoded data of this line is
dispalyed at the lower-left side of the event table.
Note:
The display format of the decoded data in the event table is
determined by the bus display format currently selected (refer to
“Format”).
When adjusting the horizontal time base, the waveform displayed on
the screen will change and the total number of lines of decoding
information in the event table will change.
The decoded data information displayed in the bus is related to the
horizontal time base. You can view the detailed information by
reducing the horizontal time base.
2) If a USB storage device is currently connected to the instrument, you can
press Export to export the decoded data list to the external USB storage
device in CSV format.
Line Number
Time
Decoded Data
Parallel Bus
Event Table
To Next Page
