Chapter 1 Quick Start RIGOL
DS4000E User’s Guide 1-7
To Connect the Active Probe
Take RP7150 (with differential probe front) as an example.
1. Connect the probe front with the active probe amplifier.
2. Connect the other end of the active probe amplifier to the analog channel input
terminal or external trigger input connector of the oscilloscope at the front panel
(please refer to “Front Panel Overview”). Note that you need to push the
probe to the due position to lock it firmly.

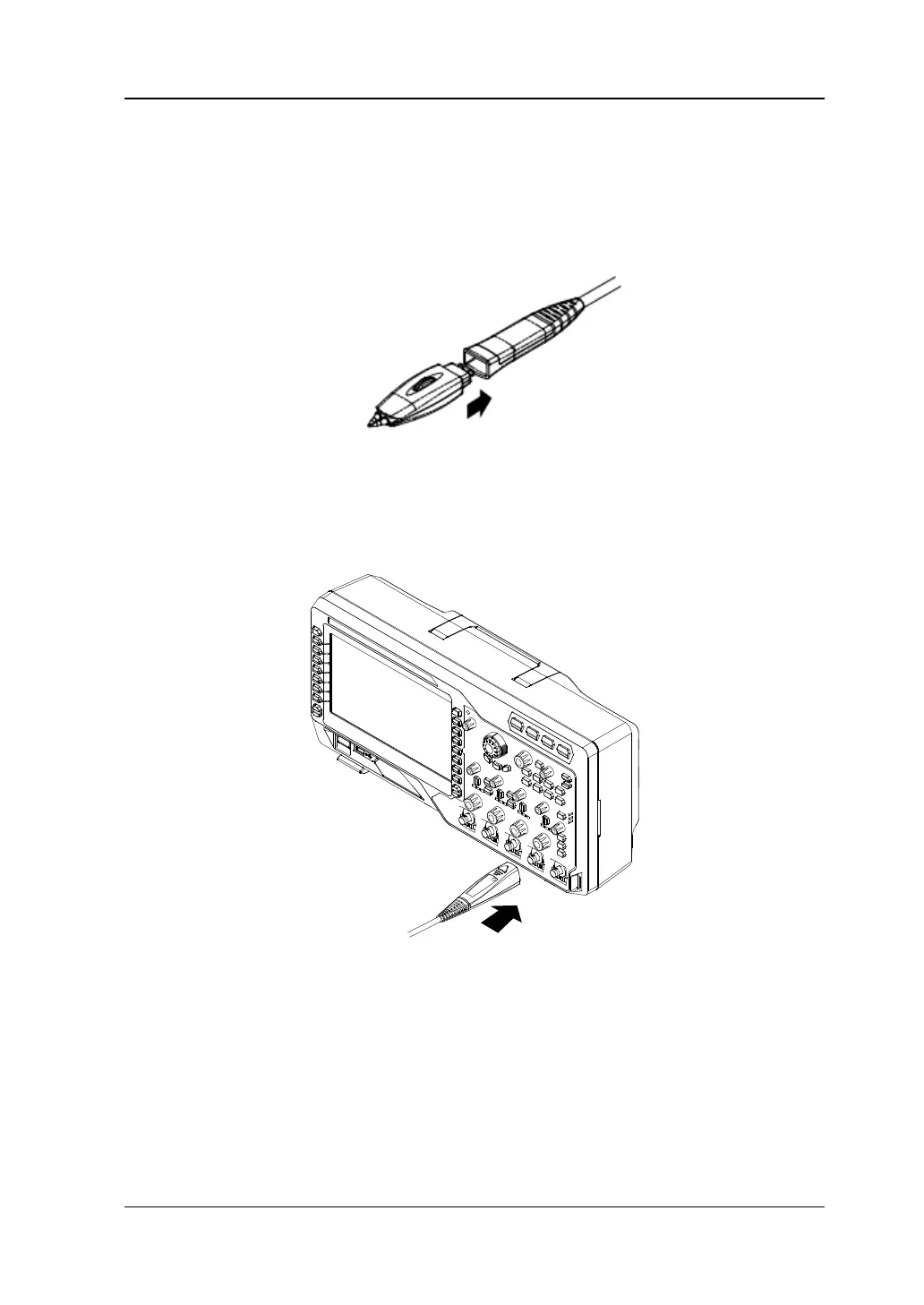

Figure 1-7 To Connect the Active Probe
3. Connect the probe front to the circuit under test using the probe auxiliary
equipment.
After connecting the active probe, you can perform probe calibration and offset
voltage adjustment. For the detailed steps, refer to “Active Probe”.
