Chapter 14 Remote Control RIGOL
DS4000E User’s Guide 14-9
select it and click .
If resources cannot be found automatically:
Select the GPIB card address of the PC from the dropdown box of “GPIB0::”
and select the GPIB address set in the oscilloscope from the dropdown box
of “0::INSTR”.
Click
to check whether the GPIB communication works
normally. If not, please follow the corresponding prompt messages to solve
the problem.
5. View device resource

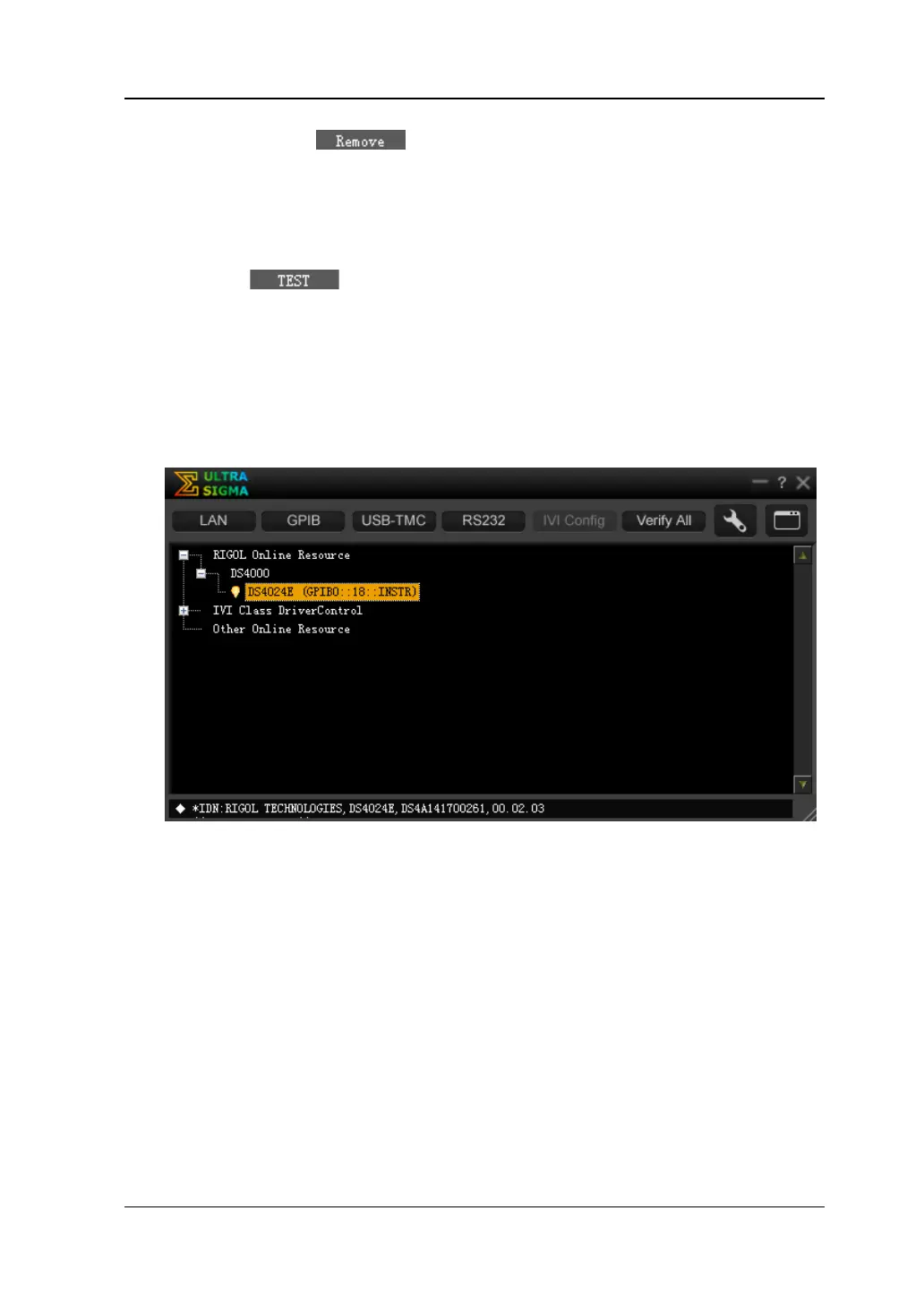

The GPIB resources found will appear under the “RIGOL Online Resource”
directory, as shown in the figure below.
6. Control the instrument remotely
Right-click the resource name “DS4024E (GPIB0::18::INSTR)” to select “SCPI
Panel Control” to turn on the remote command control panel through which you
can send commands and read data.
