RIGOL Chapter 11 Protocol Decoding
11-14 DS8000-R User Guide
➢ Open or close the event table: Click Event Table continuously to
enable or disable the event table. When you enable the event table,
the following figure is displayed, as shown in Figure 11-6. Click on the
icon at the upper-right corner of the table to close the event table.
Besides, when the operating status is "STOP", you can select a
specified line and view the corresponding decoding information.

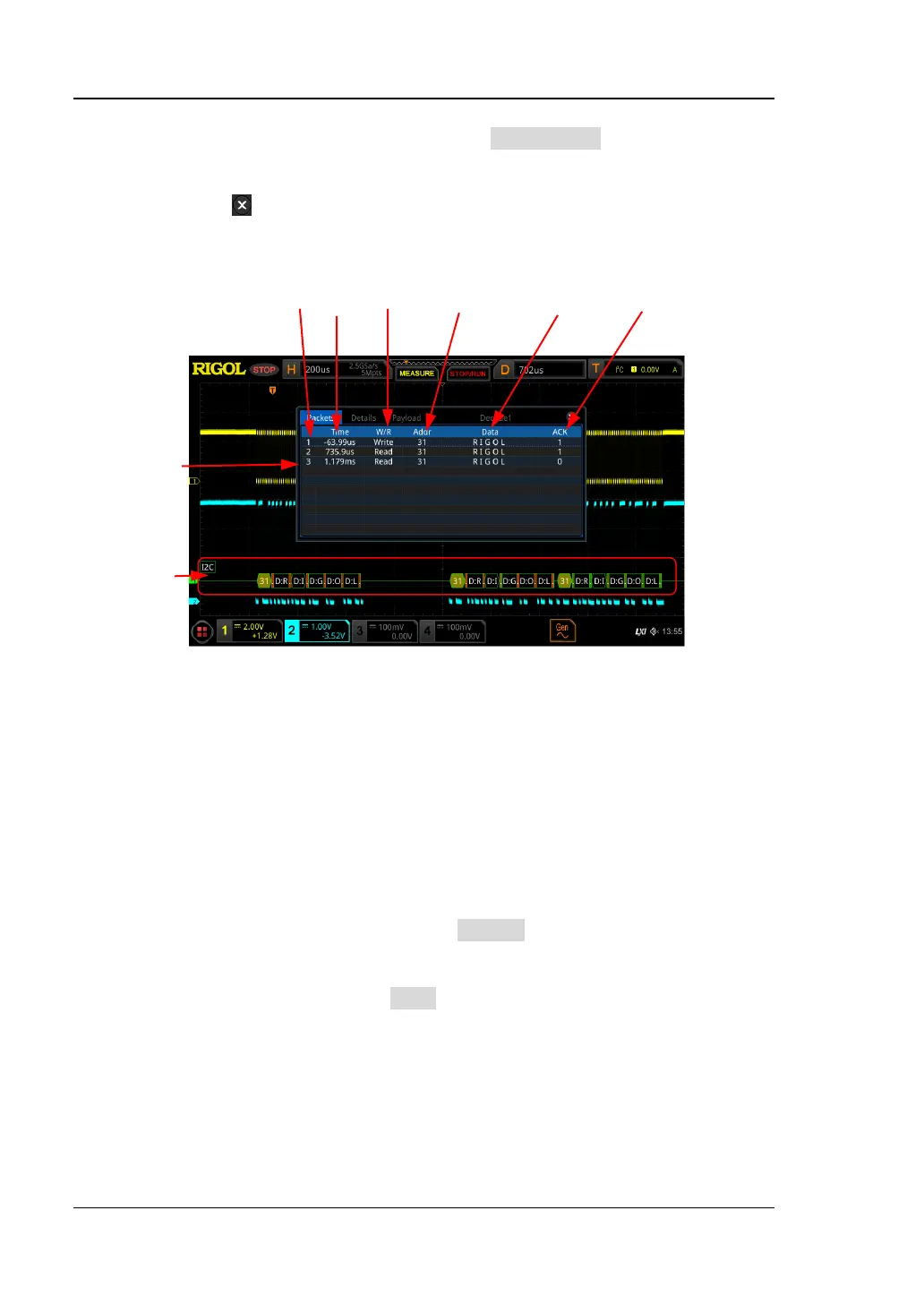

Figure 11-6 I2C Decoding Event Table
Note:
âš« When you adjust the horizontal time base, the waveform displayed
on the screen will also change, and the total number of lines
containing the decoding information in the event table will also be
changed.
âš« The displayed decoded data information in the bus is related to the
value of the horizontal time base. Reducing the horizontal time
base can help you view the detailed information.
➢ Set the event table format: Click Format to select the display format of
"Data" in the event table. The available formats include "Hex", "Dec",
"Bin", and "ASC".
➢ Set the view type: Click View to select the form of the event table to
be viewed. The available choices include "Packets", "Details", and
"Payload". You can also click the "Packets", "Details", or "Payload" tab
at the top of the event table to select it.
If you select "Packets", the decoded data, time, and error information
are displayed in the event table. If you select "Details", the detailed
data in the specified row will be displayed in the event table. If "…"
appears in the row of data, it indicates that the decoded data are not
