Rigol DS8000-R Series User Manual

Chapter 1 Quick Start RIGOL
DS8000-R User Guide 1-7

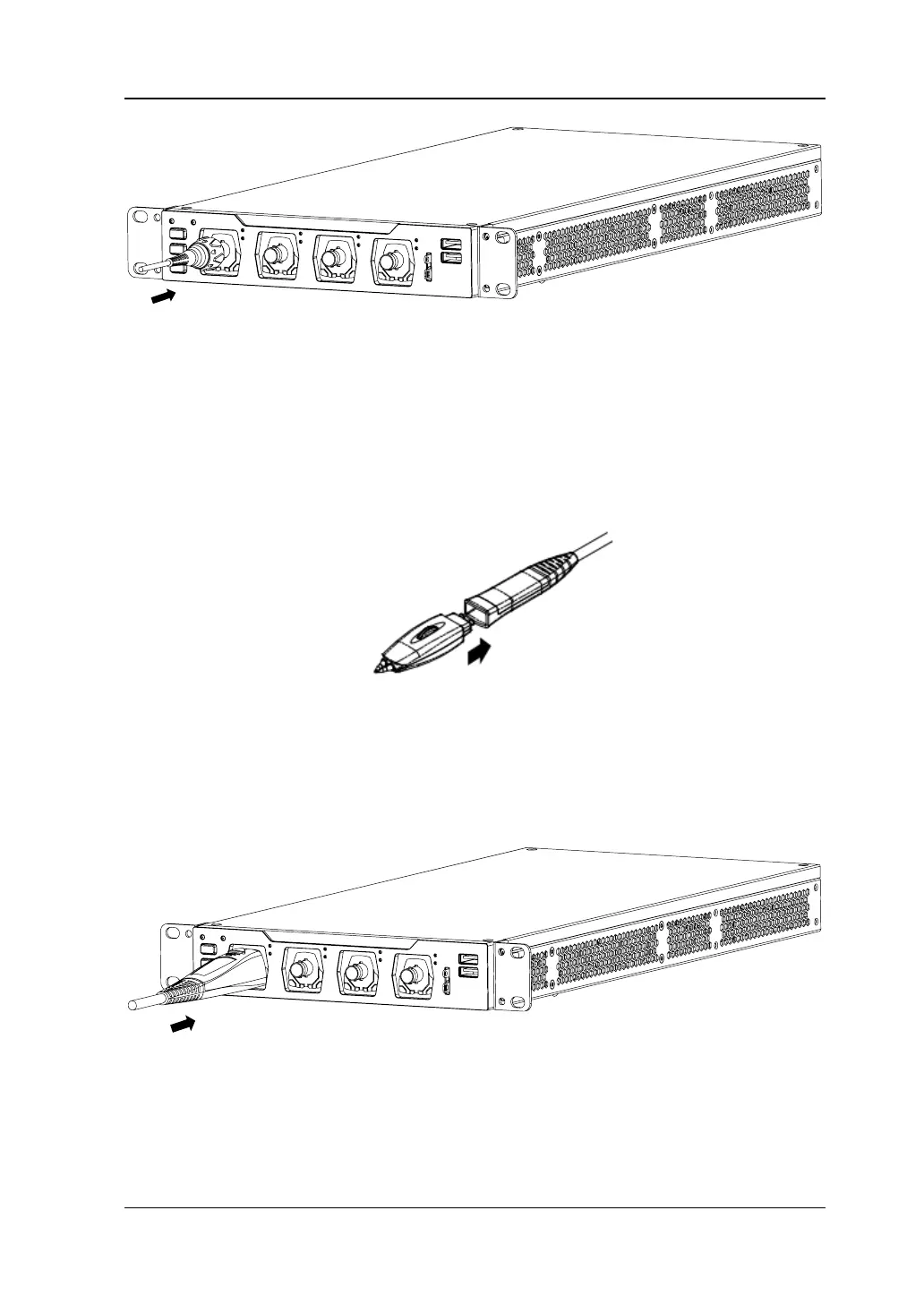

Figure 1-5 To Connect the Passive Probe
After you connect the passive probe, check the probe function and probe
compensation adjustment before making measurements. For detailed procedures,
refer to "Function Inspection" and "Probe Compensation".
Connect the active probe:
Take RP7150 (active differential probe head) as an example.
1. Connect the probe head to the preamp of the active probe, as shown in Figure
1-6.
Figure 1-6 To Connect the Probe Head to the Preamp of the Active Probe
2. Connect the other end of the preamp to an analog channel input terminal of the
oscilloscope on the front panel, as shown in Figure 1-7. Note that you should
push the probe to the end to ensure that it is tightly connected.
Figure 1-7 To Connect the Active Probe
3. Use the probe auxiliary equipment to connect the probe head to the circuit
under test. For details about the probes, refer to RP7000 Series Active Probe
User Guide .
After connecting the active probe, you can perform probe calibration and offset
