Rinnai 18 Multi Split Type AC
INDOOR INSTALLATION
Rinnai 15 Multi Split Type Air Conditioner
Step 2: Hang indoor unit.

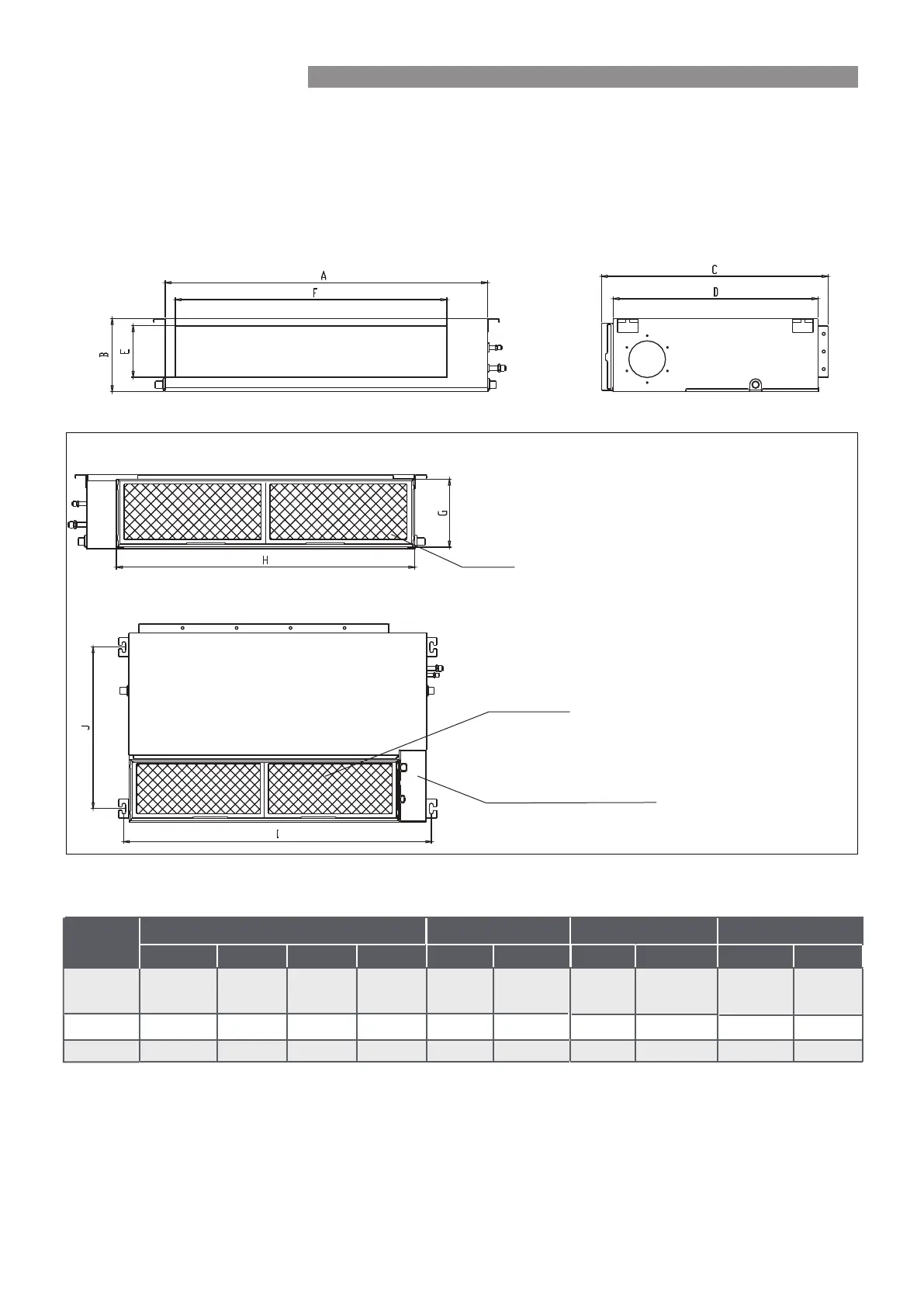

1. Please refer to the following diagrams to locate the four positioning screw bolt holes on the
ceiling. Be sure to mark the paces where you will drill ceiling hook holes.
Air outlet dimensions
Air filter
Electric control box
Air inlet dimensions
INSTALLATION INSTRUCTIONS
(Measurements in mm)
Outline dimension Air outlet opening size Air return opening size
Size of mounted lug
MODELS
A BCDE F G
H
I
J
DINSD26MB
700 200 506 450 152 537 186 599 741
360
DINSD35MB
DINSD50MB
880 210 674 600 136 706 190 782 920
508
DINSD70MB
1100 249 774 700 175 926 228 1001 1140
598
Air filter (where fitted).
MUST be accessible
Descending ventilation opening and mounted hook
