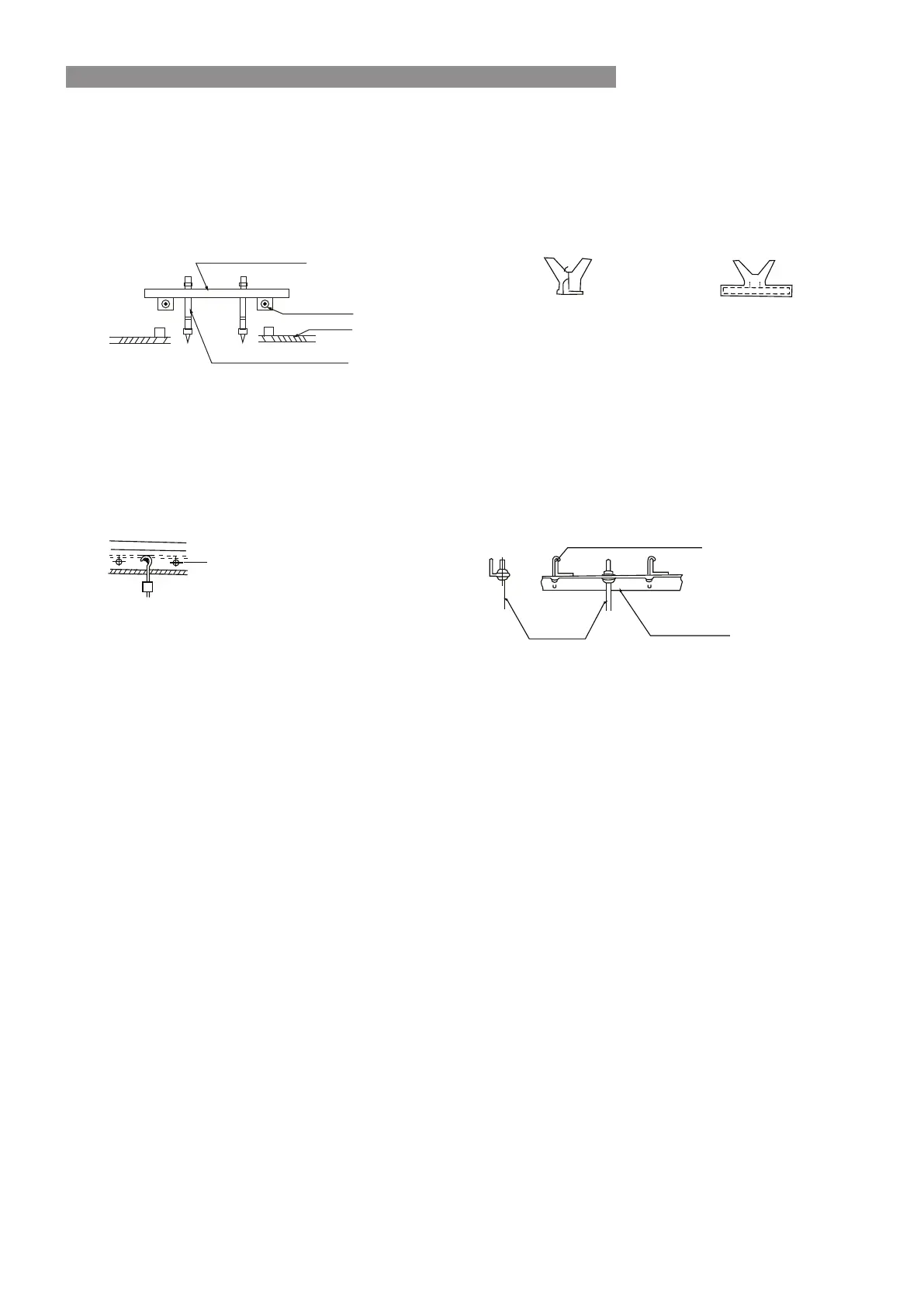

INDOOR INSTALLATION
Rinnai 16 Multi Split Type Air Conditioner
Original concrete bricks
Use an embedding screw bolt, crock, and stick
harness.(Fig.below)
Steel Roof beam structure
Install and use the supporting steel angle.
(Fig. below)
Wood
Place the wood mounting across the roof beam,
then install the hanging screw bolts.(Fig.below)
Wood mounting
Roof beam
Hanging screw bolts
Ceiling
New concrete bricks
Inlay or embed the screw bolts. (Fig. below)
(Blade shape insertion)
(Slide insertion)
Steel bar
Embedding screw bolt
(Pipe hanging and embedding screw bolt)
Hanging screw bolt
Hanging
bolts
Supporting
steel angle
INSTALLATION INSTRUCTIONS
