Rinnai P Series Installation Manual

Rinnai 27 Multi Split Type AC
INDOOR INSTALLATION
Rinnai 23 Multi Split Type Air Conditioner
ASSESSORIES
Name Shape Quantity
Indoor unit
no i t a l l a t s n i
Installation paper template
1
Refrigeration
Fittings
Soundproof/insulation
sheath (some models)
1
Drainpipe
Fittings
Outlet pipe sheath (some
models)
1
Outlet pipe clasp (some
models)
1
Drain joint (some Outdoor
models)
1
Seal ring (some Outdoor
models)
1
Installation
Accessory
Ceiling hook
4
Suspension bolt
4
EMC Magnetic
Ring
Remote
controller
Magnetic ring (wrap the
electric wires S1 & S2
around the magnetic ring
.semit evif
S2
S1
1
1
2
1
2
Remote controller
Fixing screw for remote
controller holder ST2.9 x 10
Remote controller holder
Dry battery AAA
Rinnai 24 Multi Split Type Air Conditioner

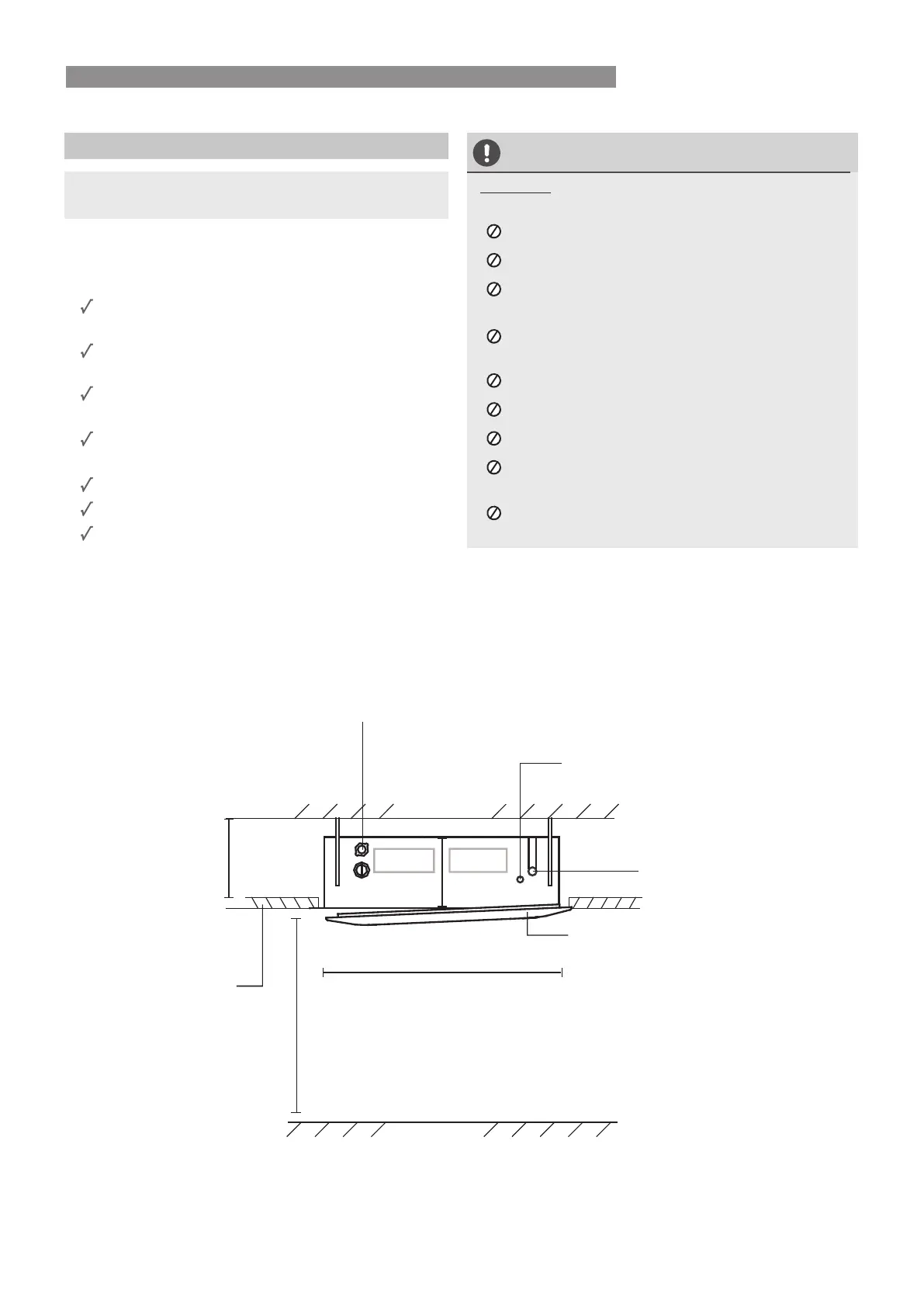

Indoor Unit Installation Instructions
NOTE: Panel installation should be done after
piping and wiring.
Step 1: Select installation location
The indoor unit should be installed in a location
that meets the following requirements:
CAUTION
DO NOT install the unit in the following
locations:
In areas with oil drilling or fracking
In coastal areas with high salt content in the air
In areas with caustic gases in the air, such
as near hot springs
In areas with power fluctuations, such as
factories
In enclosed spaces, such as cabinets
In kitchens that use natural gas
In areas with strong electromagnetic waves
In areas that store flammable materials or
gas
In rooms with high humidity, such as
bathrooms or laundry rooms
Indoor Unit
RECOMMENDED DISTANCES BETWEEN THE INDOOR UNIT AND THE CEILING
The distance between the mounted indoor unit and the internal ceiling should meet the following
specifications. (See below)
 The unit is at least 1m from the nearest
wall.
 There is enough r oom for installation and
maintenance.
 There is enough r oom for the connecting
pipe and drainpipe.
 The ceiling is horizontal and its structur e
can sustain the weight of the indoor unit.
 The air inlet and outlet are not impeded.
 The airflow can fill the entire room.
 There is no direct radiation from heaters.
Connecting point
of drain pipe
Connecting point of
refrigerant pipe
(liquid side)
Ceiling
Connecting point of
refrigerant pipe
(gas side)
(no pump)
26cm
(with pump)
Front panel
60cm
(Ceiling hole)
Ceiling board
Ground
>29cm
>78cm
>2.5m
INDOOR CASSETTE INSTALLATION
