This screen allows the user to assign New recharge for the energy
parameter. Pressing “ ” key accepts the present setting and advance to
“quit” screen (see section 3.2.5.1.1.5.5) and pressing “ ” key accepts the
present setting and advance to “Topup recharge” screen (see section
3.2.5.1.1.5.3).
Pressing the “ ” key advances to edit mode and “ ” and “ ” keys
scrolls through the required New recharge.
Note: Topup recharge range depends on Energy resolution unit(see Section 3.2.1.11)
1. When Energy resolution is “1”, then topup recharge range will be from 1 to 9999.
2. When Energy resolution is “2 or 3”, then topup recharge range will be from 1 to 999999.
Pressing the “ ” key advances to the first digit position. Press the “ ”
and “ ” keys to scroll the values of the first digit
Press the “ ” key to advance to next digit. Similarly, enter second, third
until seventh digit.
Note: Default value is set to “100”.

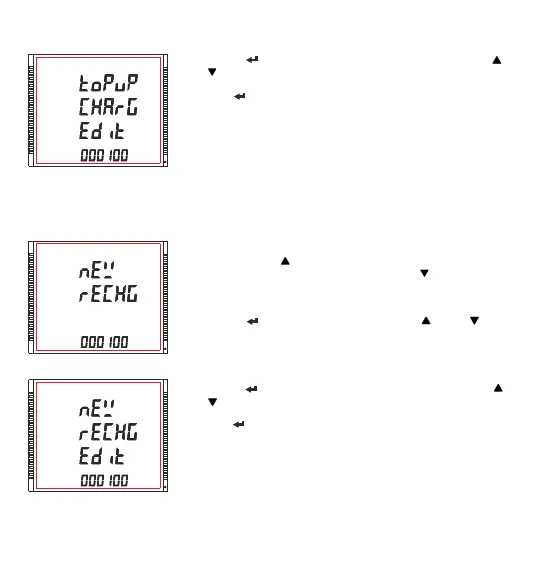

Topup Recharge Edit mode
XXXXXXXX
3.2.5.1.1.5.4 New Recharge
XXXXXXXX
XXXXXXXX
Unit Cost Edit mode
Pressing the “ ” key advances to the first digit position. Press the “ ”
and “ ” keys to scroll the values of the first digit.
Press the “ ” key to advance to next digit. Similarly, enter second, third
until seventh digit.
Note: Default value is set to “100”.
Note: Topup recharge range depends on Energy resolution unit(see Section 3.2.1.11)
1. When Energy resolution is “1”, then topup recharge range will be from 1 to 9999.
2. When Energy resolution is “2 or 3”, then topup recharge range will be from 1 to 9999999.
62
