Rhein-Nadel Automation GmbH 14
VT-BA-ESR2000_EN_2023.docx
buttons (UP/DOWN). Press ENTER again to acknowledge the entries made. The decimal point is no longer
blinking. Using the cursor buttons you can continue scrolling in the menu. Same procedure analogously ap-
plies to the code menus described below.
All the following display screens show the default setting. If the actual indication on the controller differs from
what is shown here, the default setting has been changed in individual codes to suit a specific application.
Settings for the vibrating drive
In this sub-menu you can set or limit the following functions:
- Vibrating amplitude signal direction of external enabling input
- External enabling
- Soft start and stop delay
- Output frequency
Sealing a setpoint
In this sub-menu you can lock the setpoints (vibrating amplitude) of the main menu. It is no longer possi-
ble to change the setpoints for channel 1 in the main menu. This avoids accidental changes to perfor-
mance parameters. You can only make any changes now through code C001.
Setting the sensor input 1
This is the sub-menu for activation of sensor input 1. In addition you can set the following functions:
- Invert input signal direction
- Start delay
- Stop delay
Setting the sensor input 2
This is the sub-menu for activation of sensor input 2. In addition you can set the following functions:
- Invert input signal direction
- Start delay
- Stop delay
Choosing the sensor links
In this sub-menu you can link the sensors activated by codes C004 and C005 with one another.
Setting the cycle watchdog
Here you can set which sensor input is to be monitored and how the controller is to react to an error.
Status display and error reset
Use this sub-menu for checking the set vibrating frequency and the sensor inputs and for error message
reset.
Typical application programs
Here you can call up permanently stored settings P1-P10 in application examples.
Setting the feed rate by external voltage input. 0 – 10 V or potentiometer.
Saving parameters
Open this sub-menu for saving the (application-specific) settings previously made in various sub-menus.
Inhibiting all setting functions
With the aid of this code you can disable all input facilities of the controller. It is no longer possible to
change any values. The only way now to enable the menu again is through this code.
Retrieving parameters
Inn this sub-menu you can return the controller to the default settings. You can also return to application-
specific settings, if previously saved.
Objective: Setting and limiting the vibration amplitude, external enabling, soft start and stop delay.

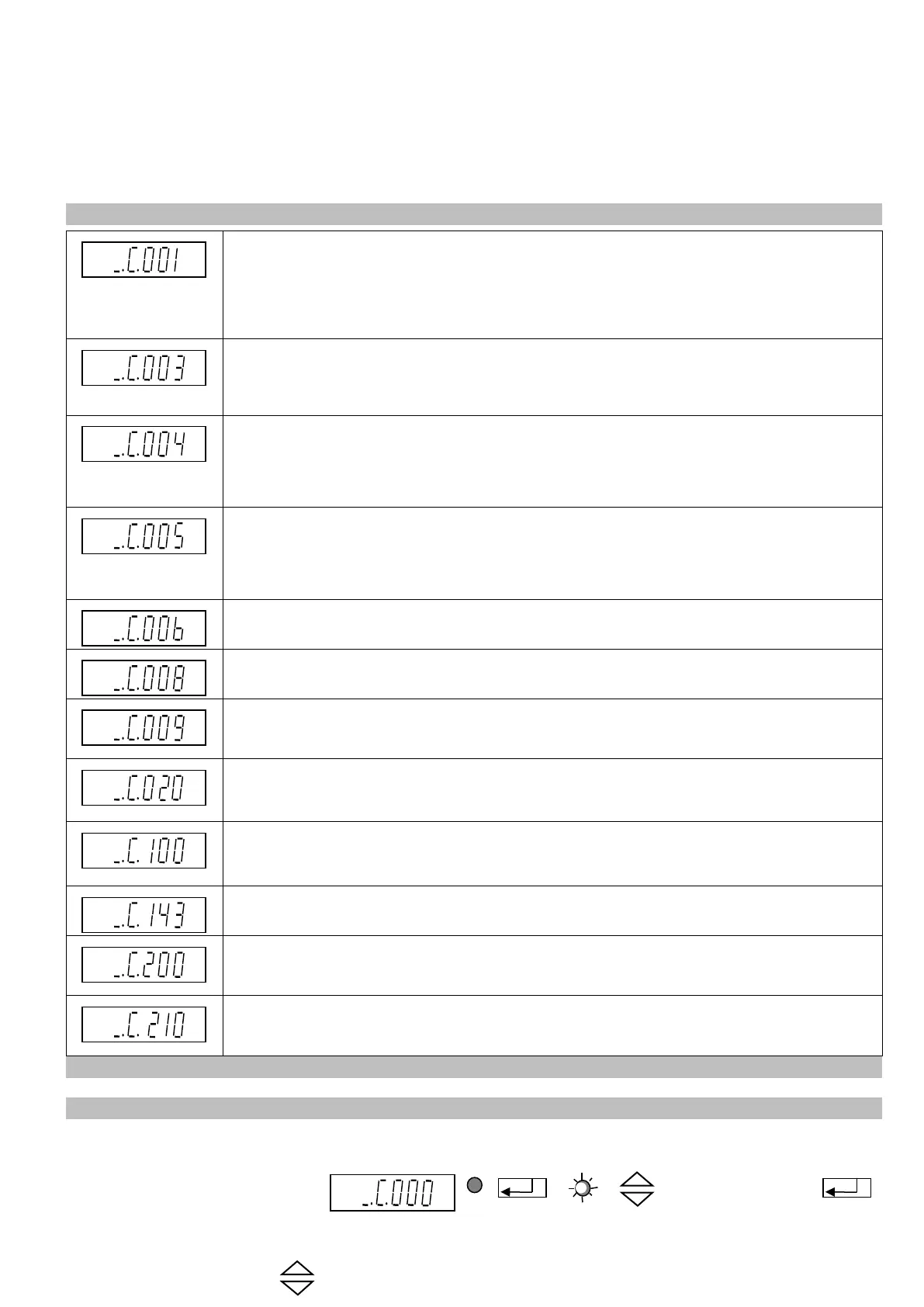

4.4. Description of individual codes for controller programming.
4.5. Application-specific changes to default settings
4.5.1. Code C001 for feed rate output
