Rhein-Nadel Automation GmbH 17

VT-BA-ESR2000_EN_2023.docx

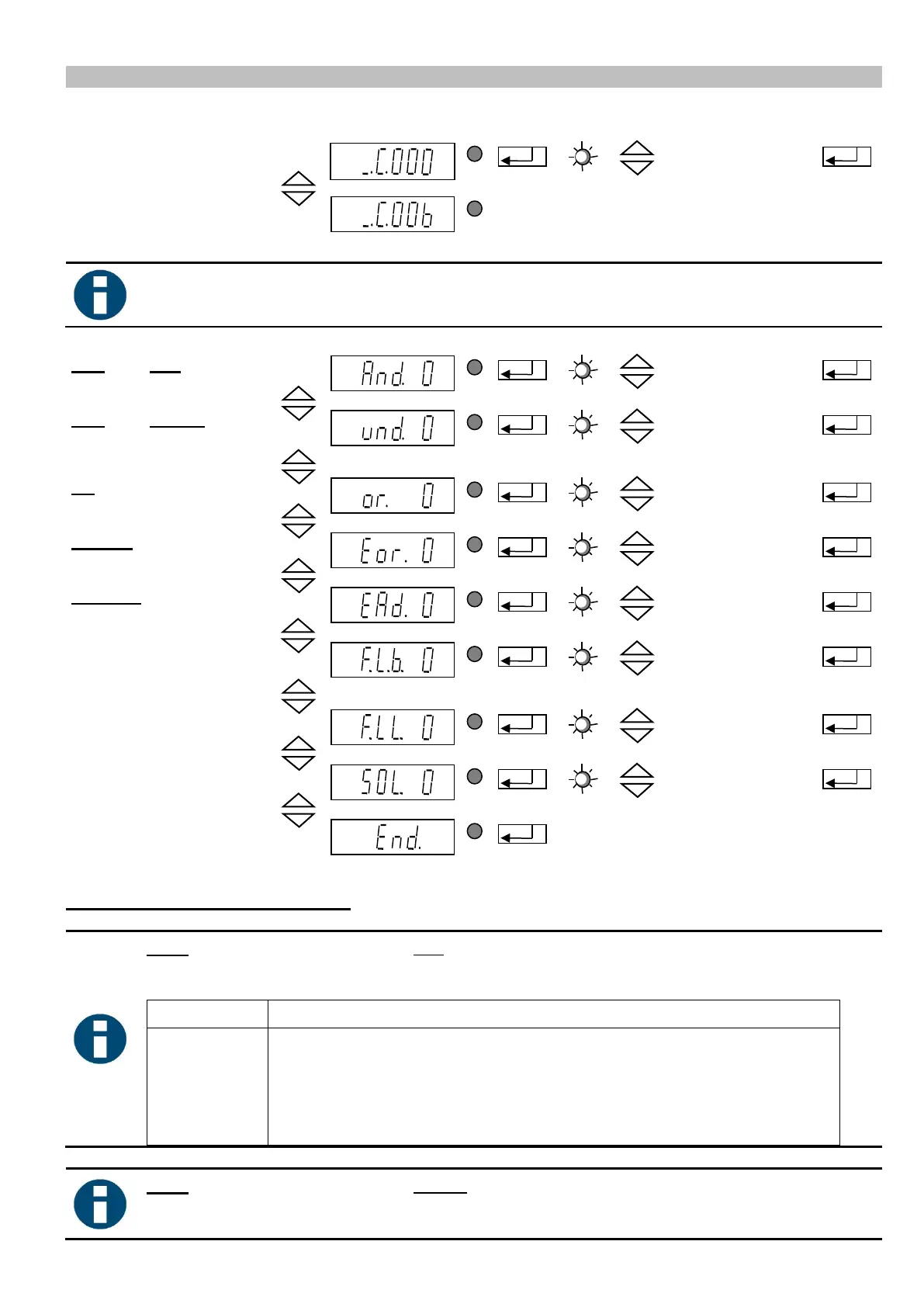

Objective: Linking of the two previously activated sensor inputs.

Select code

Set code

Code C006

KANAL l

KANAL 2

CODE

You can activate only one of the eight sensor links.

AND logic with blowing off

the exit tracks

KANAL l

KANAL 2

CODE

I = active

0 = not active

AND logic without blow-

ing-off the exit tracks(Ver-

sion No. 10 and higher)

KANAL l

KANAL 2

CODE

I = active

0 = not active

OR logic

KANAL l

KANAL 2

CODE

I = active

0 = not active

Min/Max logic

KANAL l

KANAL 2

CODE

I = active

0 = not active

AND / S2 logic

(Version No. 10 and higher)

KANAL l

KANAL 2

CODE

I = active

0 = not active

Level check for hopper

control

(Version No. 10 and higher)

KANAL l

KANAL 2

CODE

I = active

0 = not active

Level check with indicator

light

KANAL l

KANAL 2

CODE

I = active

0 = not active

Individual link

KANAL l

KANAL 2

CODE

I = active

0 = not active

Return

KANAL l

KANAL 2

CODE

Save and return to

main menu

Brief description of individual links

AND logic of the two sensor inputs with blowing-off the exit tracks.

Example:

Application:

Twin-track feeders with accumulation checker.

Solution:

Track 1 (sensor 1) full = Blow-off track 1 (relay K1)

Track 2 still clear

Track 2 (sensor 2) full = Blow-off track 2 (relay K2)

Track 1 still clear

Track 1 + Track 2 full = Bowl feeder (channel 1) Stop about 4 sec. later blowing air

stop

AND logic of the two sensor inputs without blowing-off the exit track.

Bowl feeder (channel 1) stops when both sensors are operated. Orienting air can be switched off

with delay (4 sec.) via relay K2.

KANAL l

KANAL 2

CODE

4.5.4. Code C006 Sensor linkage
