Rhein-Nadel Automation GmbH 19

VT-BA-ESR2000_EN_2023.docx

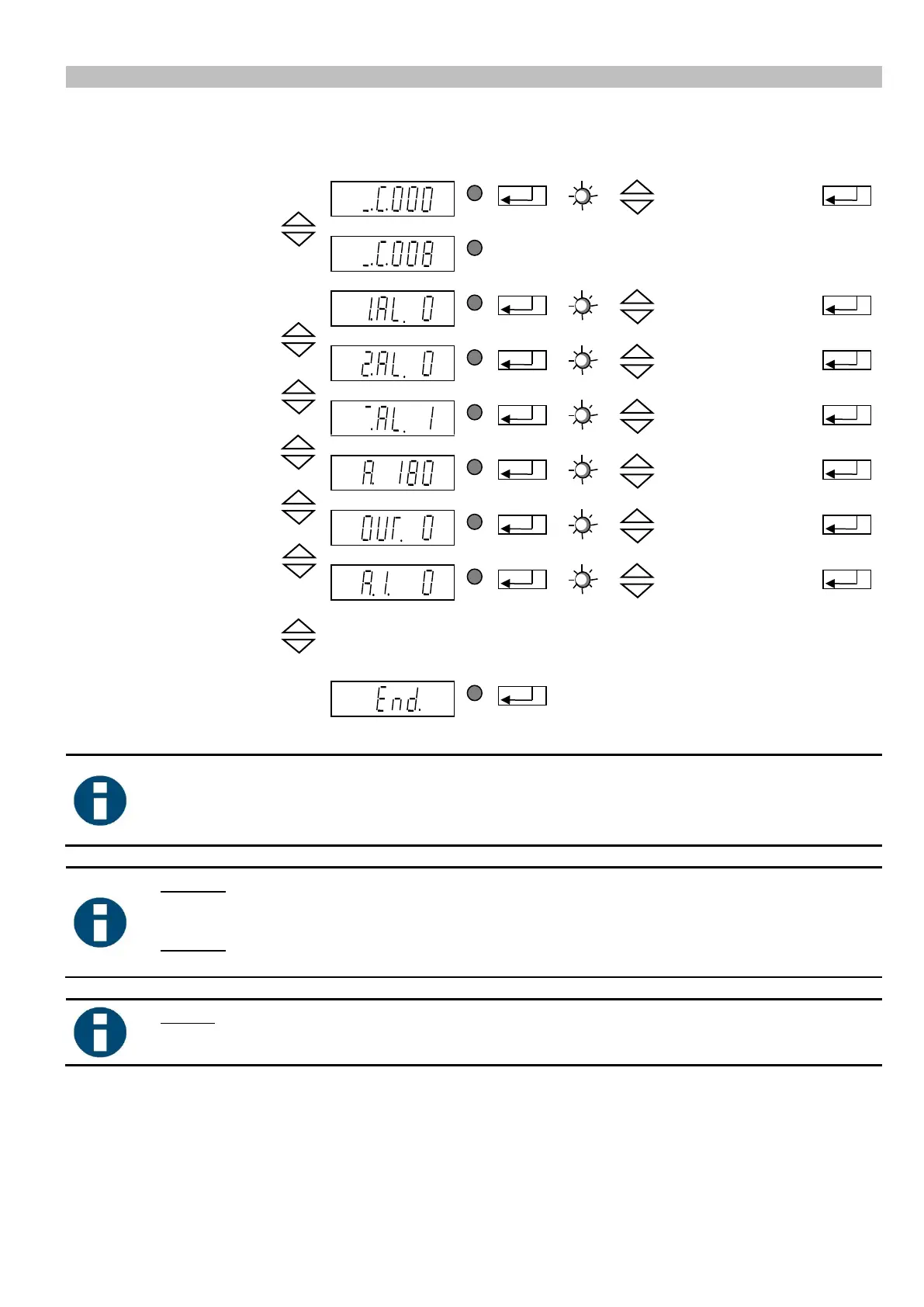

Objective: Monitoring of sensors 1 (accumulation check) and/or 2.

When activating the cycle monitoring function, the "AND, SOL" links in code C006 must not be acti-

vated!!!

Select code

KANAL l

KANAL 2

CODE

Set code

Code C008

KANAL l

KANAL 2

CODE

Sensor input 1 is moni-

tored

KANAL l

KANAL 2

CODE

I = active

0 = not active

Sensor input 2 is moni-

tored

KANAL l

KANAL 2

CODE

I = active

0 = not active

Monitoring depending on

channel 1

KANAL l

KANAL 2

CODE

I = active

0 = not active

Time till alarm comes up

KANAL l

KANAL 2

CODE

3 - 240 sec.

Switching off channel 1

KANAL l

KANAL 2

CODE

I = see below

0 = see below

Switch

KANAL l

KANAL 2

CODE

I = Alarm on relay

0 = Alarm on relay

Return

KANAL l

KANAL 2

CODE

Save and return to

main menu

The cycle watchdog monitors the CLEAR sensor status. The time (A 180) sets the maximum du-

ration for which a sensor is allowed to be clear before an alarm message is generated.

In case of an alarm the relay K2 is clocked on and off. Reset takes place automatically when the

sensor is operated again.

If OUT = 1 the alarm operates relay K2 (indicator light: Error) and also stops the bowl feeder or

linear feeder. An ERROR message appears on the panel display.

Use the bottom right cursor button for reset.

If OUT = 0 the alarm only operates relay K2 (indicator light: Error).

Reset takes place automatically when sensor 1 is operated.

If A.I. = 1 relay K1 is clocked on and off in response to the alarm (switching from relay K2 to re-

lay K1)

4.5.5. Code C008 cycle monitoring
