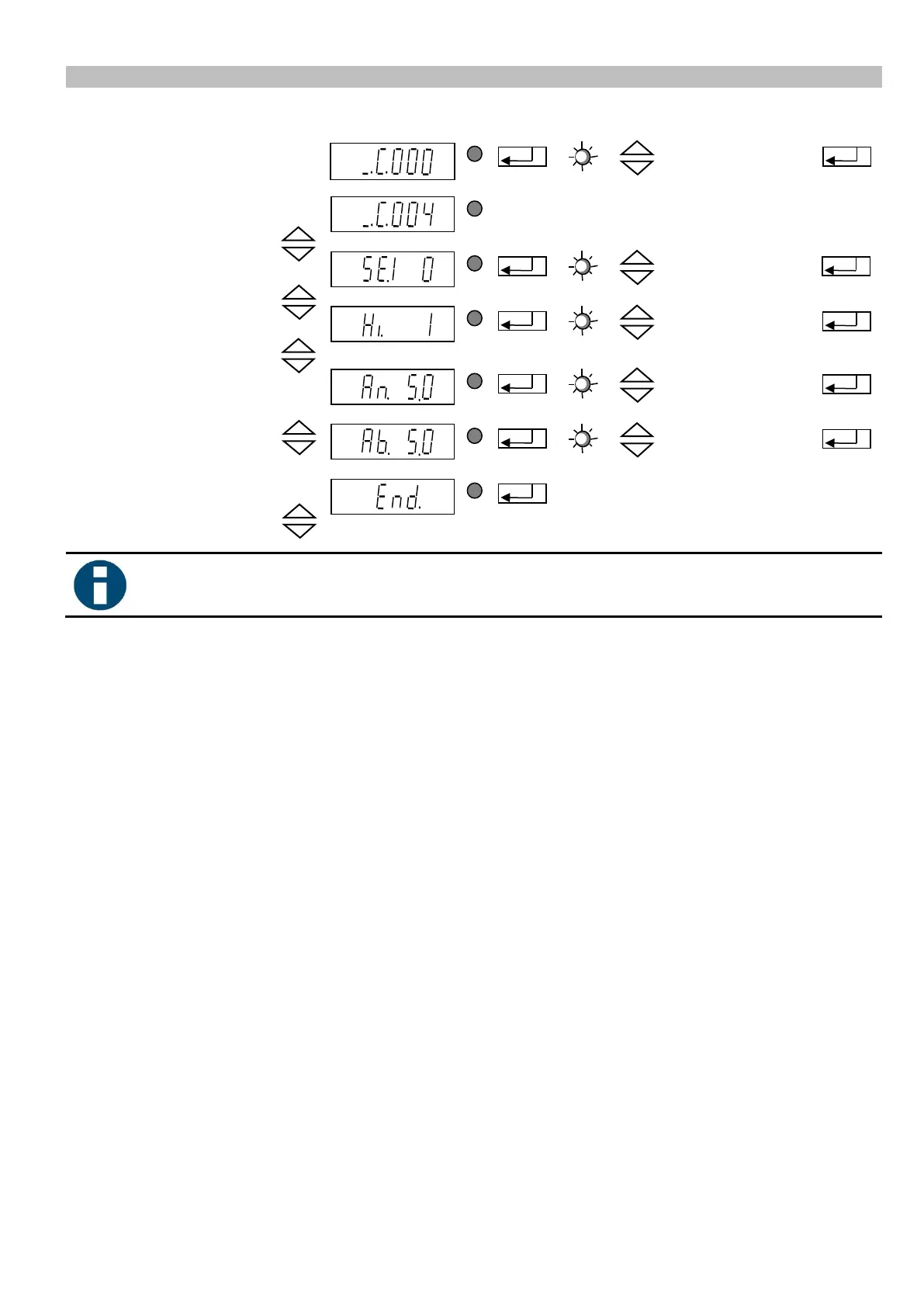

Objective: Activating and setting the sensor inputs

Select code

Set code

Code C004

KANAL l

KANAL 2

CODE

Sensor 1 input

KANAL l

KANAL 2

CODE

I = active

0 = not active

Invert input signal direc-

tion

KANAL l

KANAL 2

CODE

I = Start = 24V DC

0 = Stop = 24V DC

Delay of sensor status

CLEAR, start delay

KANAL l

KANAL 2

CODE

0 - 60 sec.

Delay of sensor status OP-

ERATED, stop delay

KANAL l

KANAL 2

CODE

0 - 60 sec.

Return

KANAL l

KANAL 2

CODE

Save and return to

main menu

Same applies analogously to code C005 (sensor input 2)

KANAL l

KANAL 2

CODE

4.5.3. Code C004 sensor input 1 and code C005 sensor input 2
