Code C001

Set vibrating amplitude

0 - 100 %

Limit vibrating amplitude

For RNA feeders with

100V/200V

magnets 90%

50 - 100 % (*)

External enabling signal

I = active

0 = not active

External enabling signal

direction

I = Start = 24V DC

0 = Stop = 24V DC

Soft start time

0 - 5 sec.

Soft stop time

0 - 5 sec.

Vibrating drive operating

frequency

(See also under 3.1 Com-

missioning)

35 - 140

Return

Save and return to

main menu

Objective: Sealing-in the setpoints in the main menu. A direct change of the values is no longer possible.

You can only make changes now through code C001.

Select code

Set code

Code C003

KANAL l

KANAL 2

CODE

Setpoint (vibrating ampli-

tude)

KANAL l

KANAL 2

CODE

1 = adjustable

0 = input inhibited

Return

KANAL l

KANAL 2

CODE

Save and return to

main menu

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

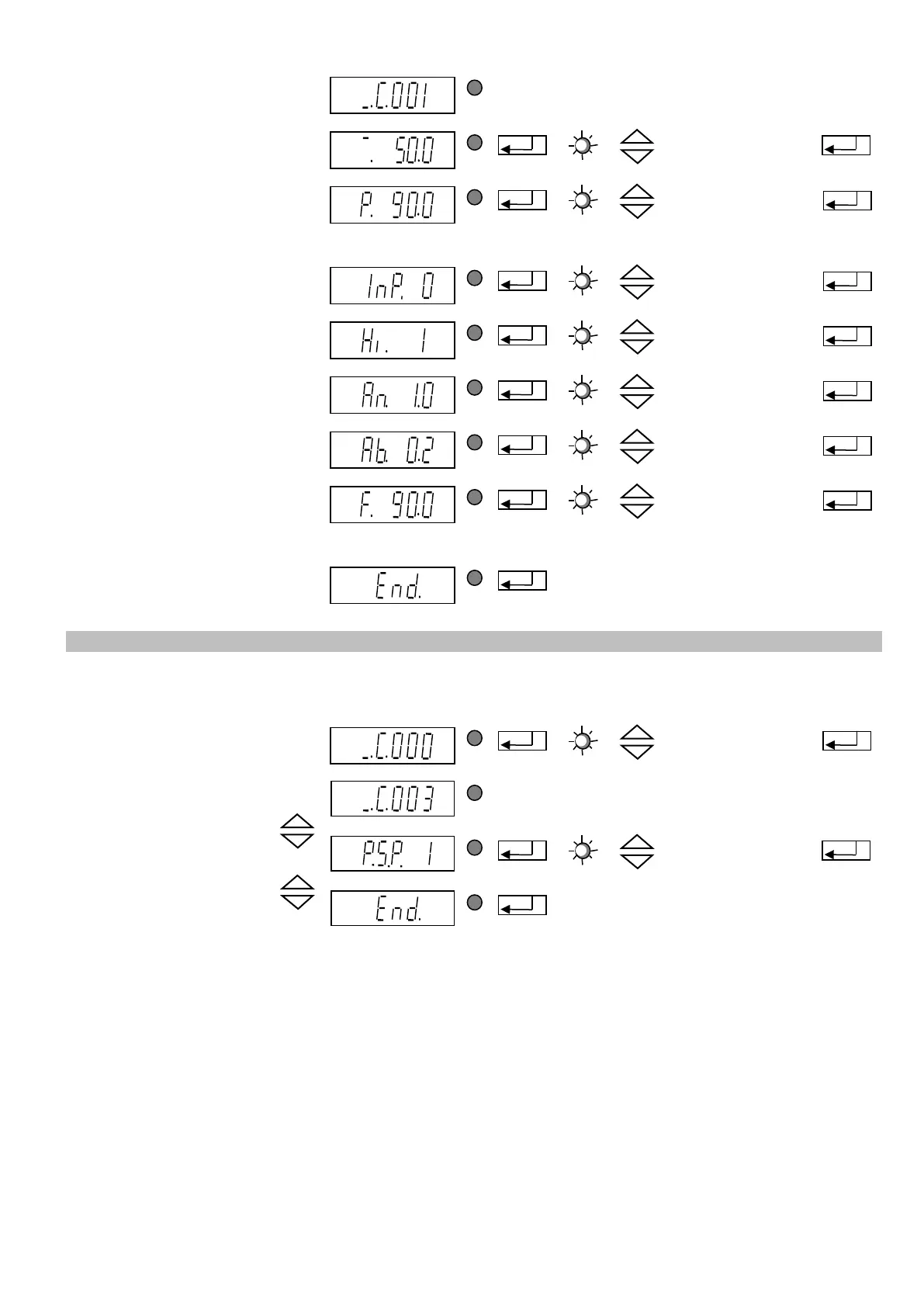

4.5.2. Code C003 Seal setpoint

Brand	RNA
Model	ESR 2000
Category	Controller
Language	English

RNA ESR 2000 User Manual
