Rhein-Nadel Automation GmbH 9

VT-BA-ESR2000_EN_2023.docx

Attention:

Improper start-up of a feeder after conversion, controller replacement or mechanical modification

creates the risk of damage to springs, vibratory units, orienting devices or carryover devices.

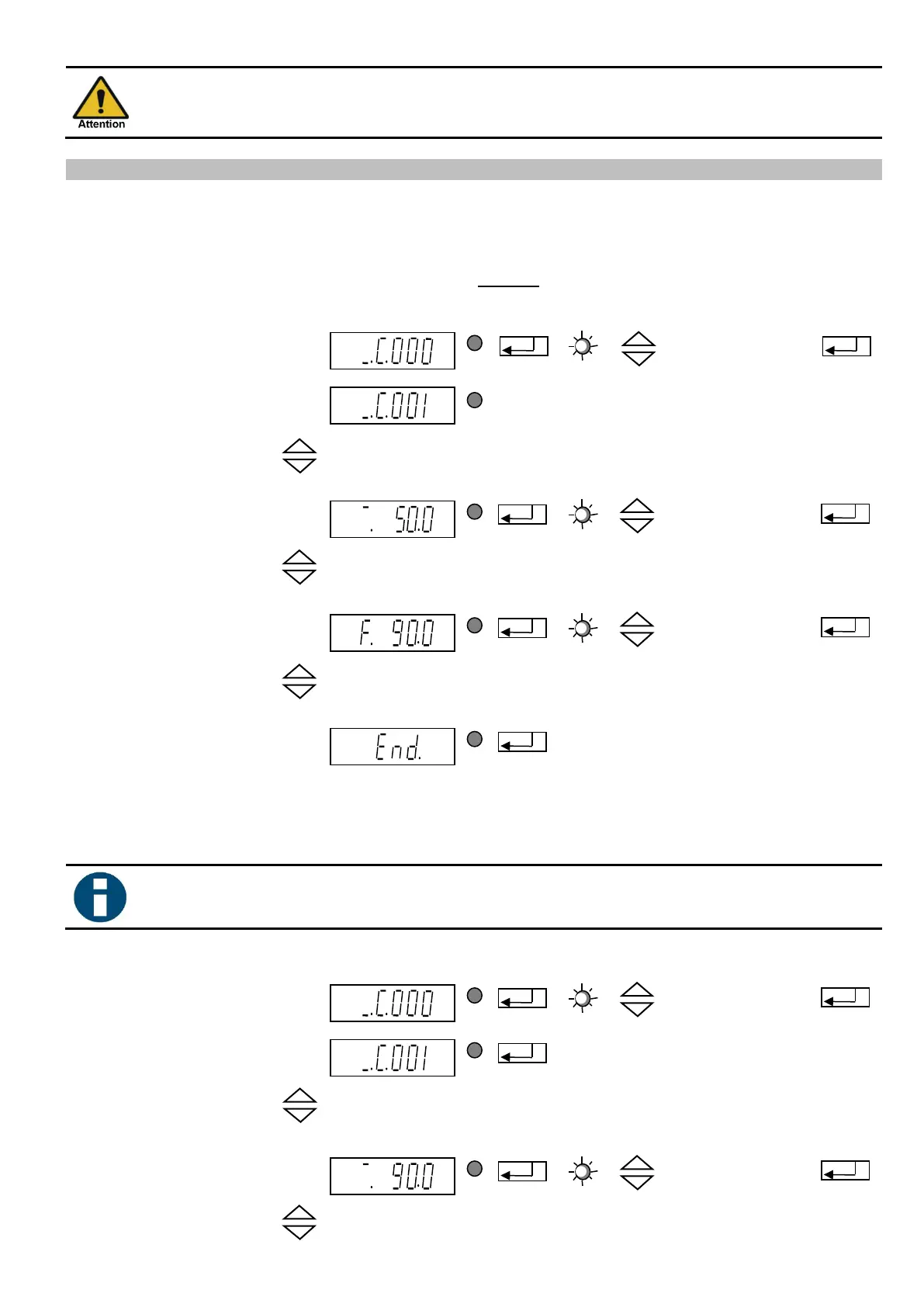

Procedure:

1. Read frequency range and max. load current from rating plate of the vibratory feeder.

(See tables 1 and 2.)

2. Connect controller to power supply and switch it on without vibratory feeder.

3. Select code 001:

Select code

Set code

Code C001

4. Set amplitude at 50 %:

Set vibrating amplitude

0 - 100 %

5. Set frequency to the highest value for the vibrating drive from table 1 or 2:

Vibrating drive operating

frequency

45 - 120

6. Save the setting:

Return

Save and return to

main menu

7. Switch off the controller

8. Connect bowl feeder to the controller

9. Switch on the controller

The bowl feeder must now be vibrating!

10. Select code 001 again as described above.

Select code

Set code

Code C001

Abs

11. Increase amplitude to 90 %:

Set vibrating amplitude

0 - 100 %

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

3.5.2. Controller set-up to suit a vibratory feeder
