Refrigerator Receptacle (15 Amp.)
Air Conditioner / Heat Pump Receptacle (20Amp)
Microwave Receptacle (20 Amp.)
Driver Side Receptacles & Optional Coffee Maker (15 Amp)
MAIN Power Switch (30 Amp)
AC DISTRIBUTION PANEL 120VAC
DC DISTRIBUTION PANEL 12V DC
1A
20A
10A
10A
10A
10A
15A
15A
15A
DS Lights
Roof & Cab Lights
Antenna Amplifier
Potable Water Pump
LP Gas Detector
Water Heater
Refrigerator
PS Lights & Patio Lights
Roof Vent Fans
BREAKERS
<--- Input from charger
20A
10A
1A
CO Detector
Waste Water Pump
Furnace
FUSES
and battery
To Transfer Switch
Passenger Receptacles, Audio Video, Galley
and Battery Charger (15 Amp)

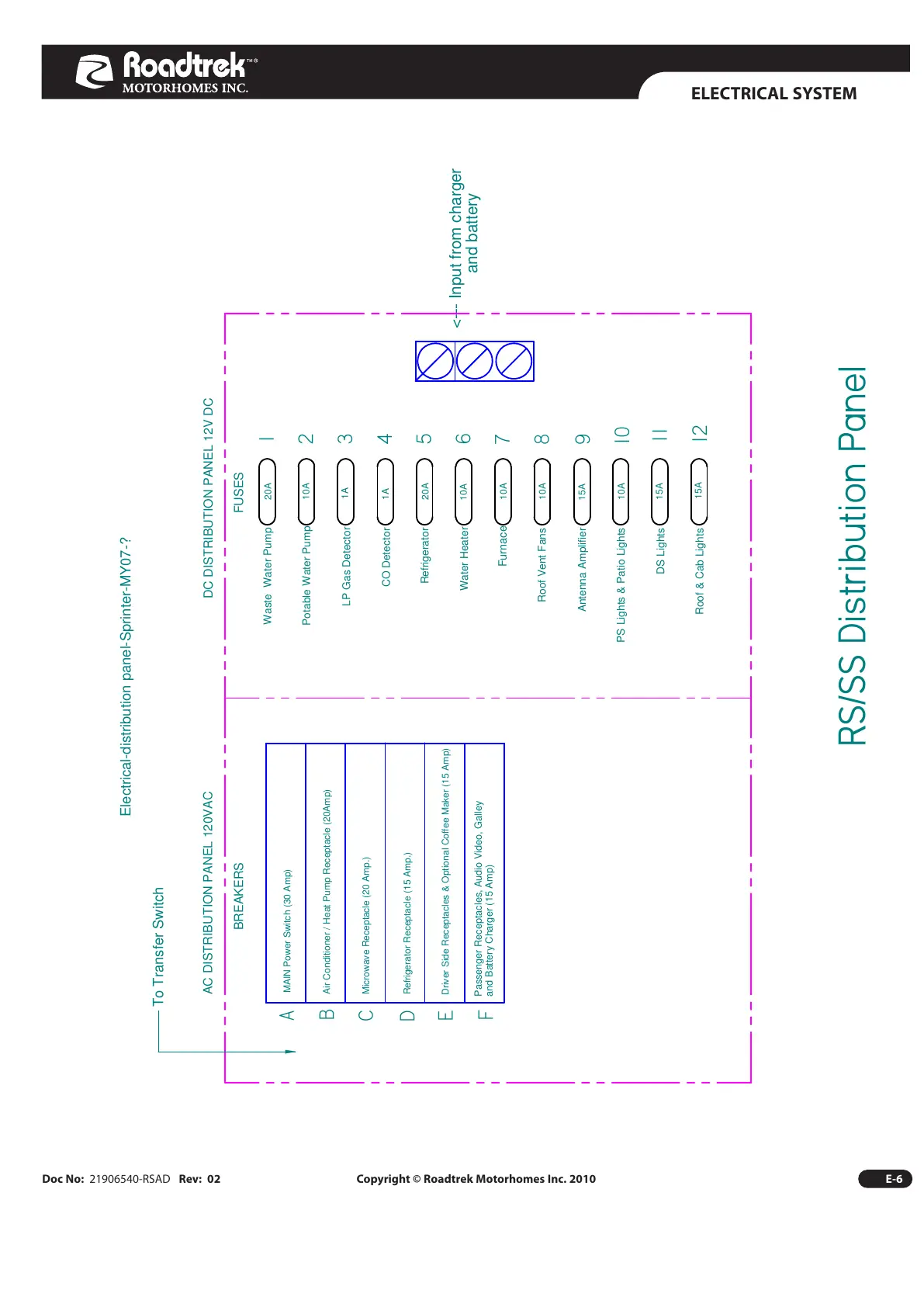

Electrical-distribution panel-Sprinter-MY07-?
To Next Page
