5.2.2 OpenVPN
OpenVPN supports two modes, including Client and P2P. Here takes P2P as an example.

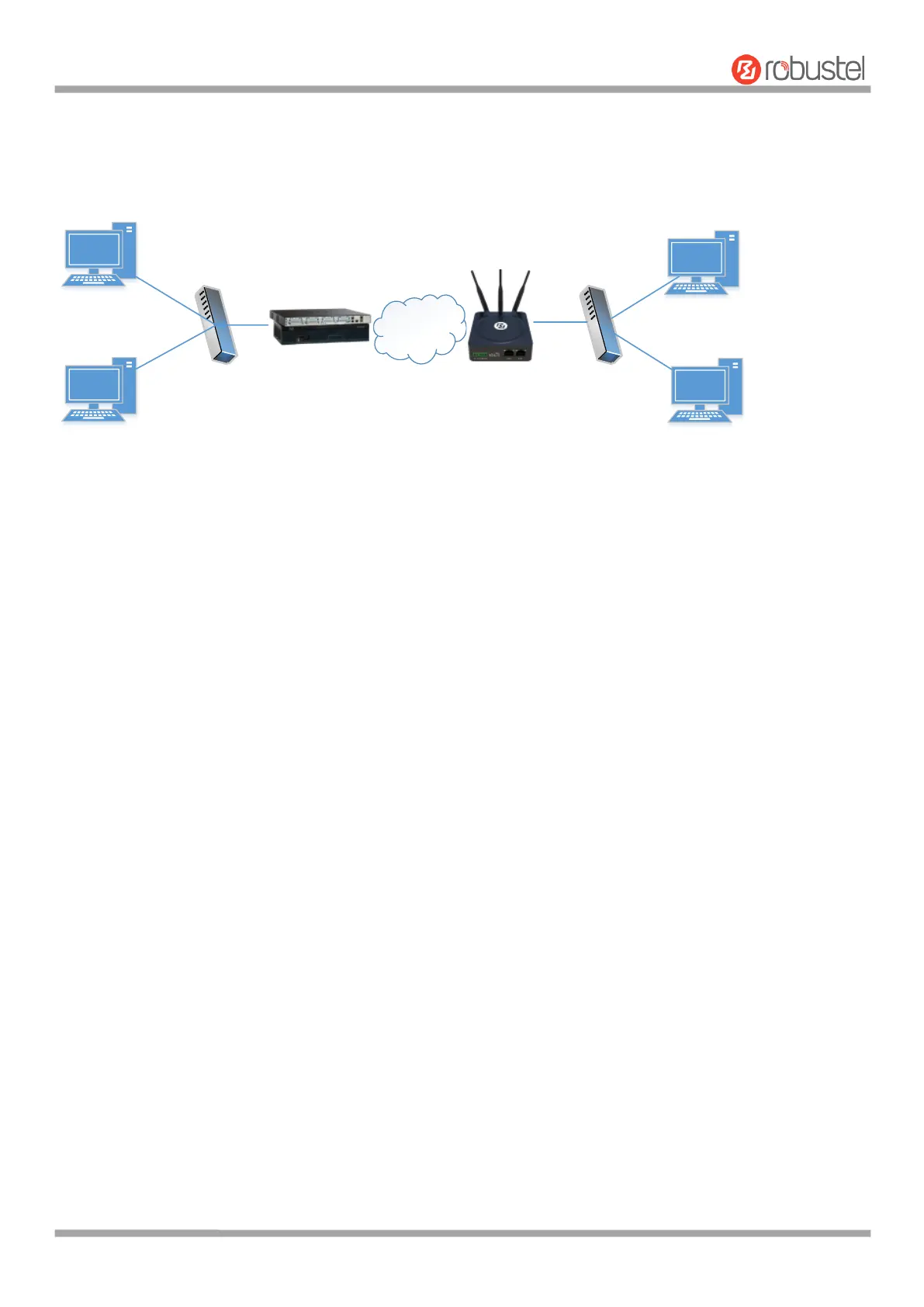

Internet
PC3
PC4
LAN
LAN
OpenVPN-Server
OpenVPN-Client
192.168.2.0/24
WAN:202.96.1.100/24
192.168.1.0/24
WAN:59.1.1.1
The configuration of two points is as follows.
OpenVPN_Server:
Generate relevant OpenVPN certificate on the server side firstly, and refer to the following commands to
configuration the Server:
local 202.96.1.100
mode server
port 1194
proto udp
dev tun
tun-mtu 1500
fragment 1500
ca ca.crt
cert Server01.crt
key Server01.key
dh dh1024.pem
server 10.8.0.0 255.255.255.0
ifconfig-pool-persist ipp.txt
push "route 192.168.3.0 255.255.255.0"
client-config-dir ccd
route 192.168.1.0 255.255.255.0
keepalive 10 120
cipher BF-CBC
comp-lzo
max-clients 100
persist-key
persist-tun
status openvpn-status.log
verb 3
Note: For more configuration details, please contact your technical support engineer.
