Robustel R1510 User Guide
RT_UG_R1510_v.1.0.1 Dec. 31, 2019 40/140

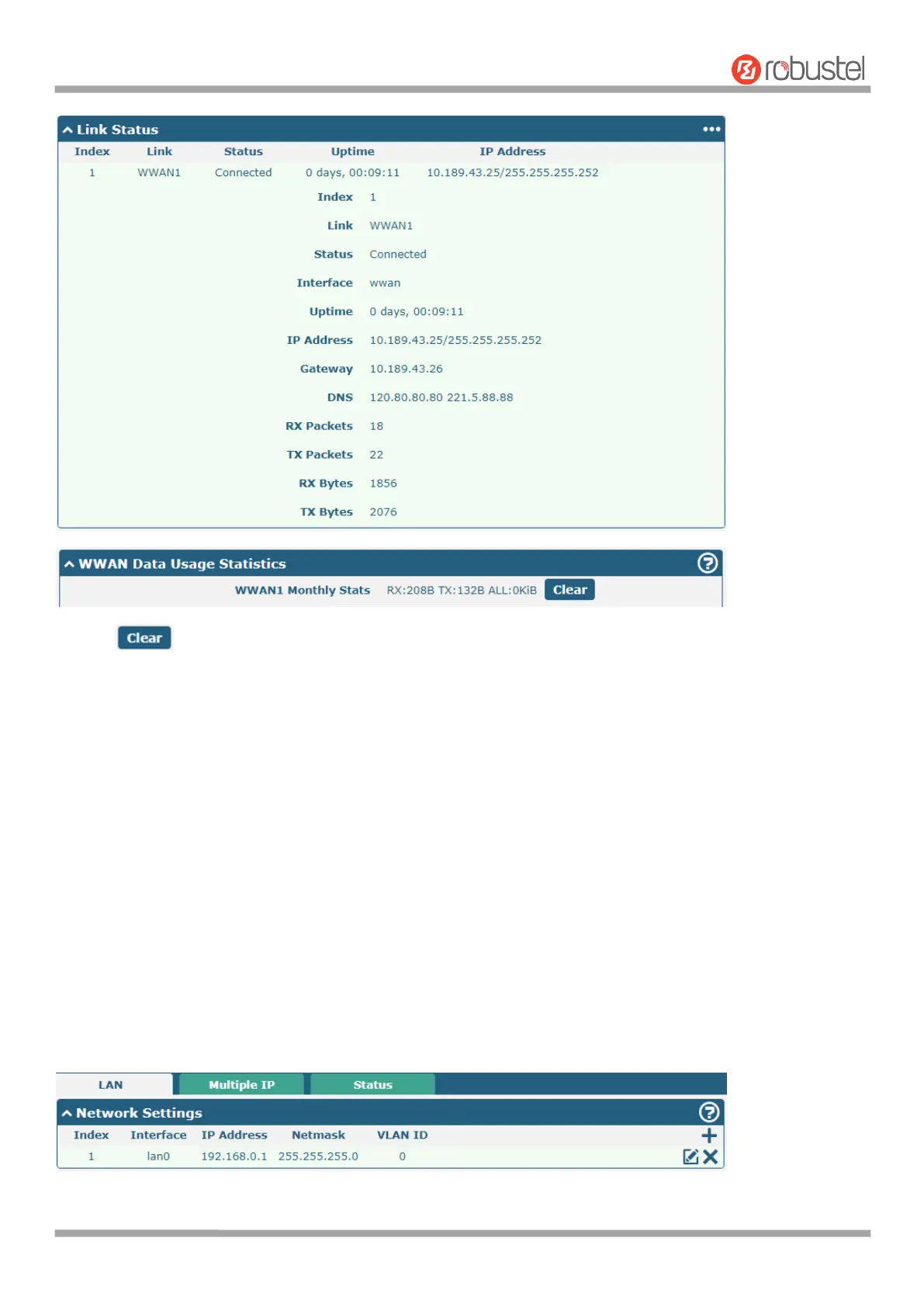

Click the button to clear SIM1 monthly data traffic usage statistics. Data statistics will be displayed only if
enable the Data Allowance function in Interface > Link Manager > Link Settings > WWAN Settings > Data Allowance.
4.2.2 LAN
This section allows you to set the related parameters for LAN port. There are two LAN ports on R1510 Router,
including ETH0, and ETH1. Wan is assigned as ETH0. The ETH0 and ETH1 can freely choose from lan0 and lan1, but at
least one LAN port must be assigned as lan0. The default settings of ETH0 and ETH1 are lan0 and their default IP are
192.168.0.1/255.255.255.0.
LAN
By default, there is a LAN port (lan0) in the list. To begin adding a new LAN port (lan1), please configure ETH1, ETH2
or ETH3 as lan1 first in Ethernet > Ports > Port Settings. Otherwise, the operation will be prompted as “List is full”.
Note: Lan0 cannot be deleted.
