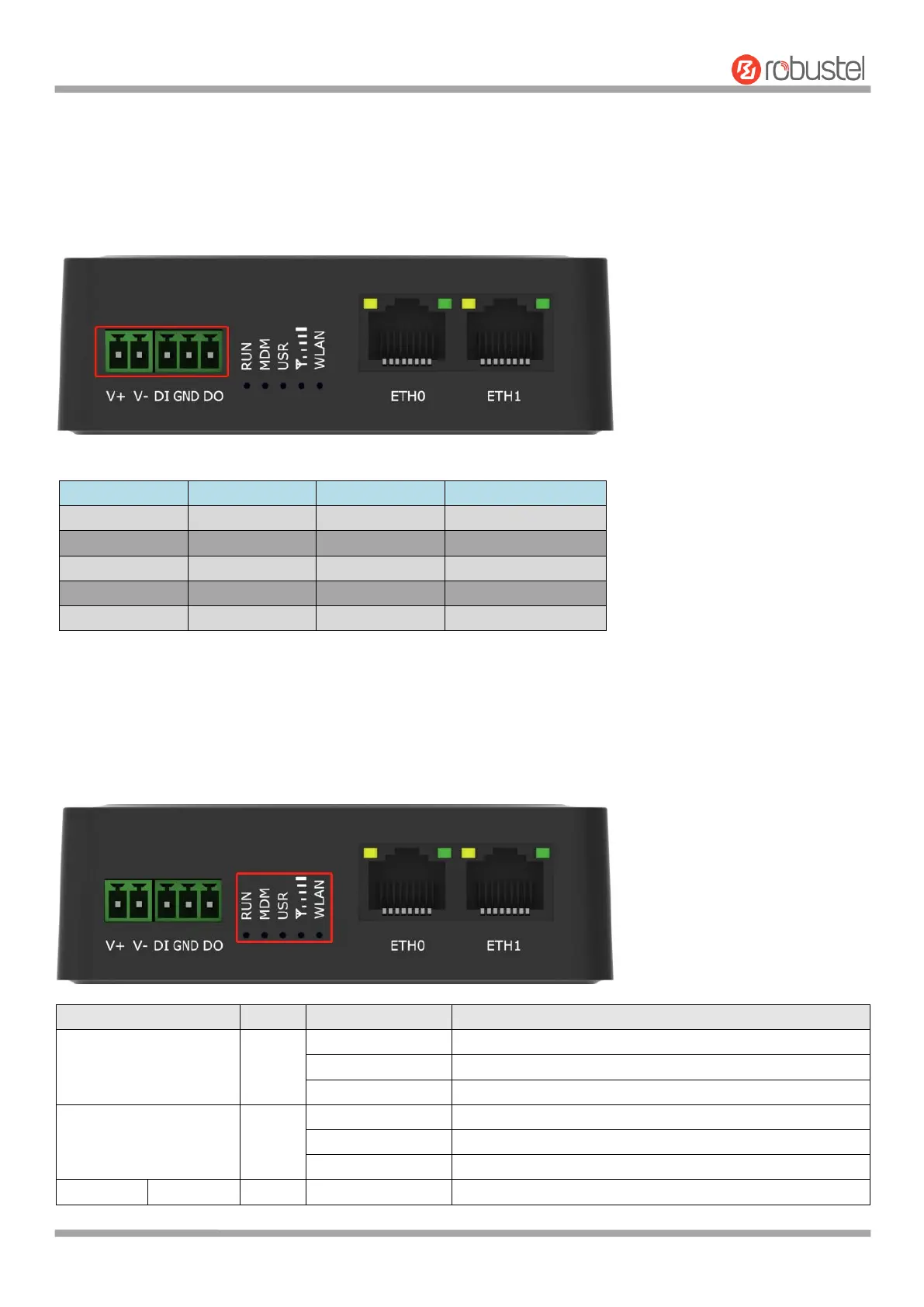

Chapter 2 Hardware Installation
2.1 Pin Description
2.2 LED Indicators
Name
Color
Status
Description
RUN
Green
On, solid
Router is powered on (System is initializing)
On, blinking
Router starts operating
Off
Router is powered off
MDM
Green
On, solid
Link connection is working
On, blinking
Data is sent and received.
Off
Link connection is not working
USR
USR-Open
Green
On, solid
OpenVPN connection is established
PIN
Power
DI/DO
Direction
1
V+
--
Router  Device
2
V-
--
Router  Device
3
--
DI
Router  Device
4
--
GND
Router  Device
5
--
DO
Router  Device
