Robustel R1510 User Guide
RT_UG_R1510_v.1.0.1 Dec. 31, 2019 126/140
5.2.3 GRE VPN

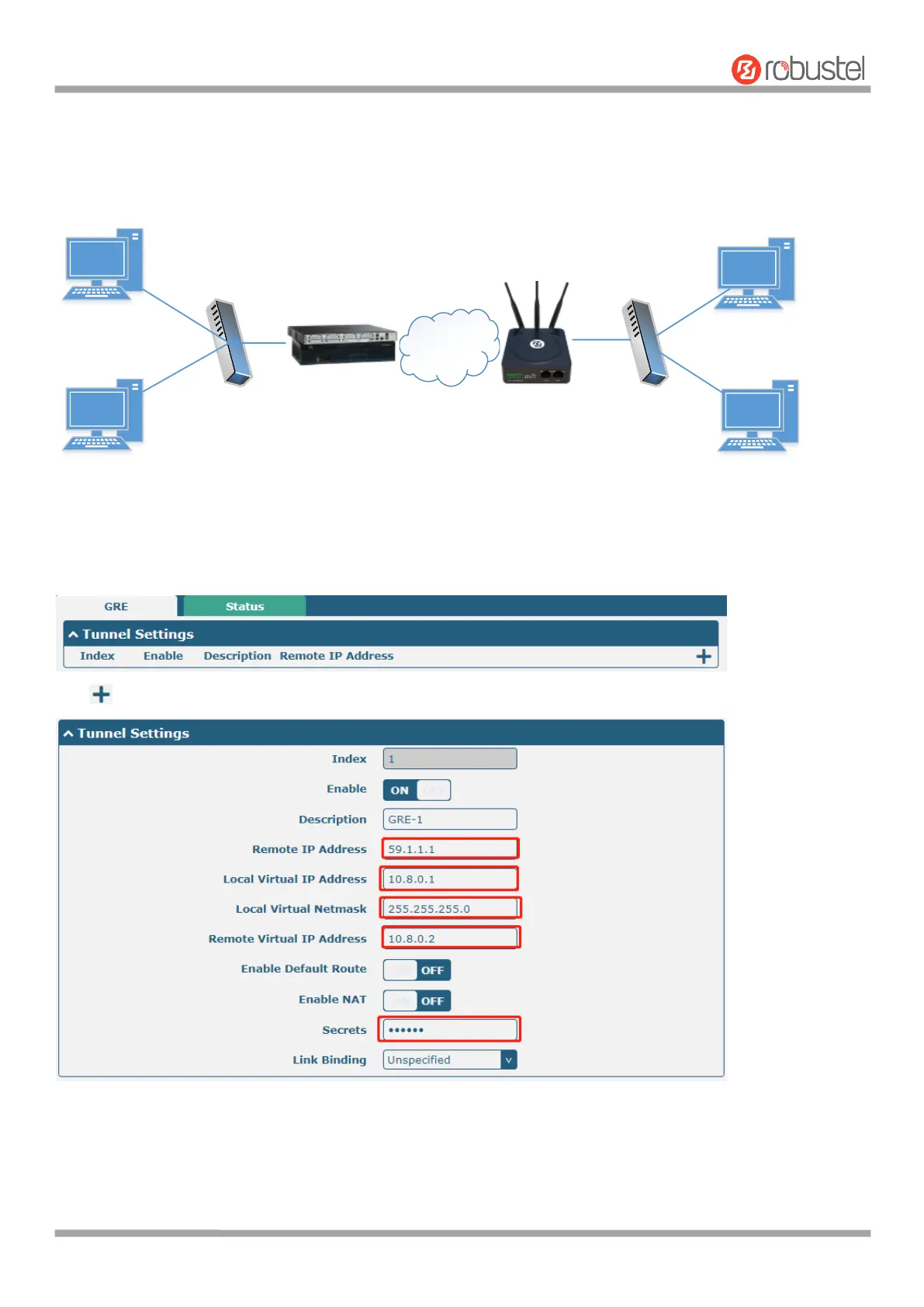

GRE VPN example topology:
Internet
PC3
PC4
LAN
LAN
GRE-1
GRE-2
192.168.2.0/24
WAN:58.1.1.1
192.168.1.0/24
WAN:59.1.1.1
PC3
PC1
PC2
The configuration of two points is as follows.
GRE-1
：
The window is displayed as below by clicking VPN > GRE > GRE.
Click button and set the parameters of GRE-1 as below.
When finished, click Submit > Save & Apply for the configuration to take effect.
