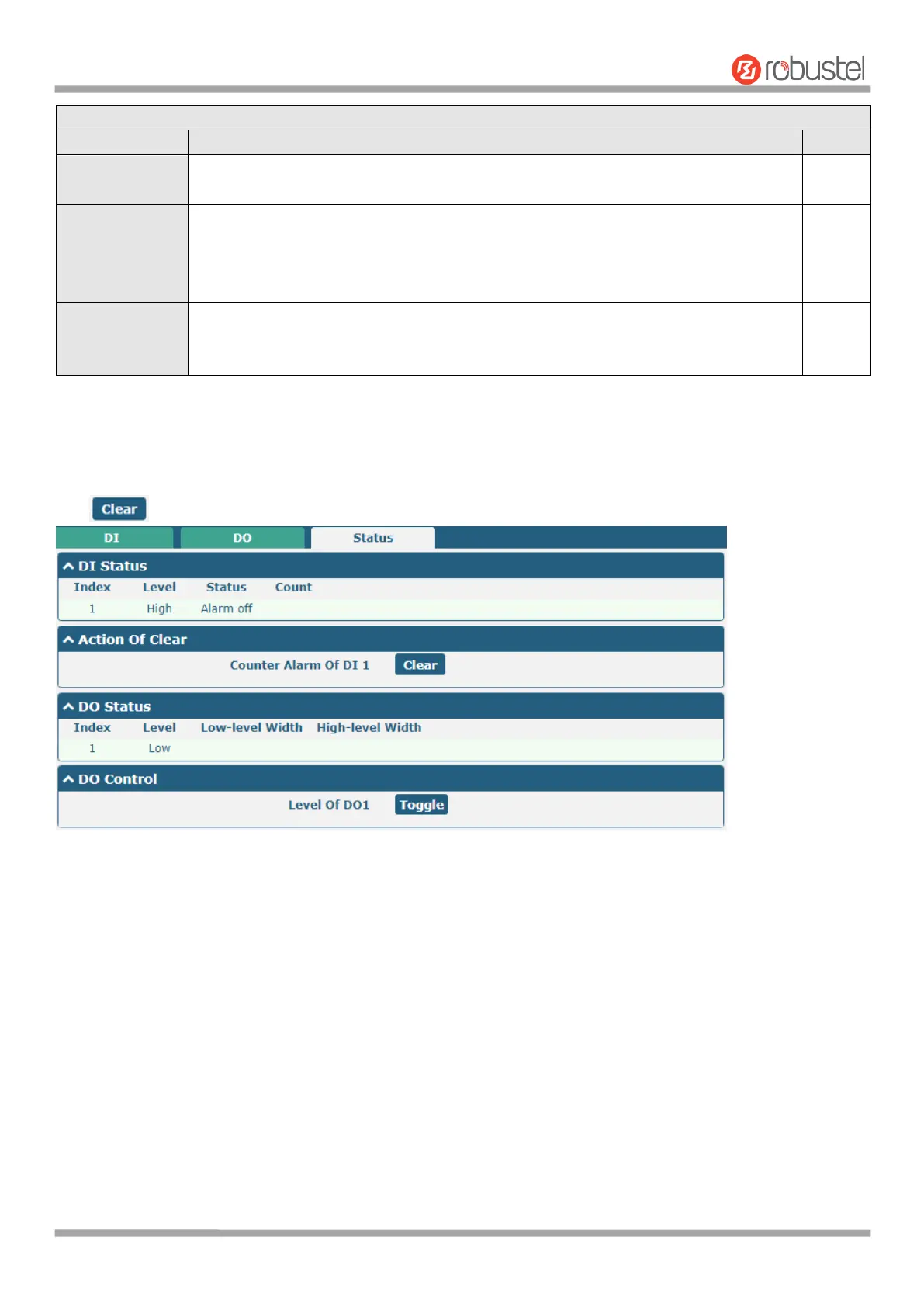

General Settings @ DO
Item
Description
Default
square wave as specified in the pulse mode parameters. The low level widths are
specified here. Enter from 1 to 3000 ms.
High-level
Width
(unit: ms)
Set the high-level width. It is available when enabling Pulse as “Alarm On
Action/Alarm Off Action”. In Pulse Output mode, the selected digital output channel
will generate a square wave as specified in the pulse mode parameters. The high level
widths are specified here. Enter from 1 to 3000 ms.
1000
Alarm Source
Digital Output initiates according to different alarm source. Selected only “DI1 Alarm”.
DI1 Alarm: Digital Output triggers the related action when there is alarm from Digital
Input.
--
Status
This window allows you to view the status of DO and DI interface. It can also clear the counter alarm of DI in here.
Click button to clear DI1 monthly usage statistics info for counter alarm.
4.3 Network
4.3.1 Route
This section allows you to set the static route. Up to 20 static routes can be added to the router. Static route is a form
of routing that occurs when a router uses a manually-configured routing entry, rather than information from a
dynamic routing traffic. Route Information Protocol (RIP) is widely used in small network with stable use rate. Open
Shortest Path First (OSPF) is made router within a single autonomous system and used in large network.
Click network > route > static route to enter the static route table, which allows users to manually add, remove, or
modify static route rules.
