Robustel R1510 User Guide
RT_UG_R1510_v.1.0.1 Dec. 31, 2019 19/140

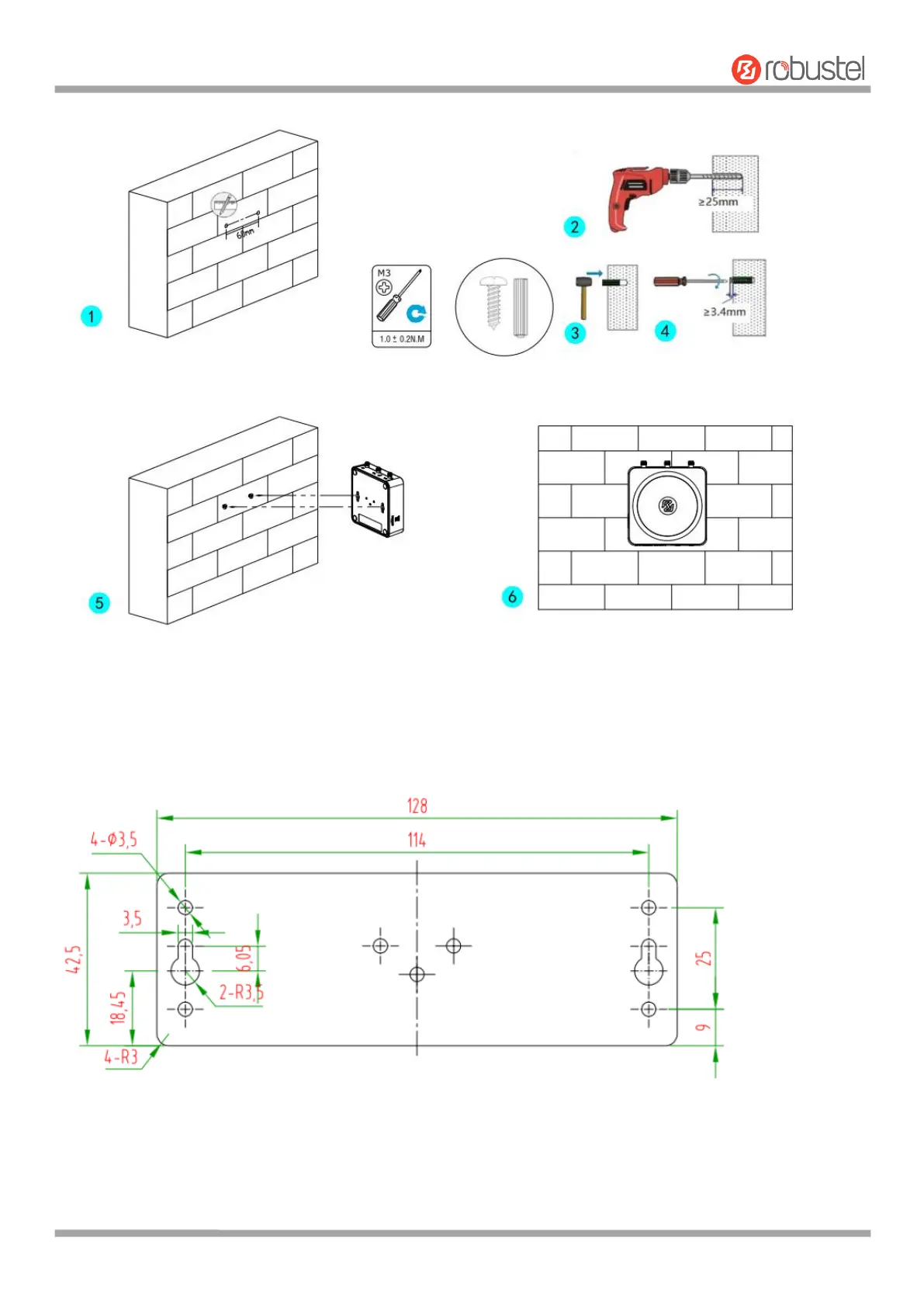

First, drill holes on the wall, the distance between the two holes is 60mm, then knock the expansion pipe into the
wall with a rubber hammer, align the screw with the expansion pipe, insert the screw and reserve the corresponding
length, and finally fix the product on the wall.
 Option 2
Size of Wall mounted kit:
Use 3 pcs of M3 screws to mount the router on the wall mounting kit, and then use 2 pcs of M3 screws to mount the
wall mounting kit on the wall.
