Roche cobas e 411 - Communication Cable Details

cobas e 411 analyzer
Roche Diagnostics
Host Interface Manual for use in the US •
Document Version 2.3 13 of
61
1907-05-0816
Communication cable
Connect RS-232C communication cable to the connector at the left side of
cobas e 411 analyzer. The connector is D-SUB9.

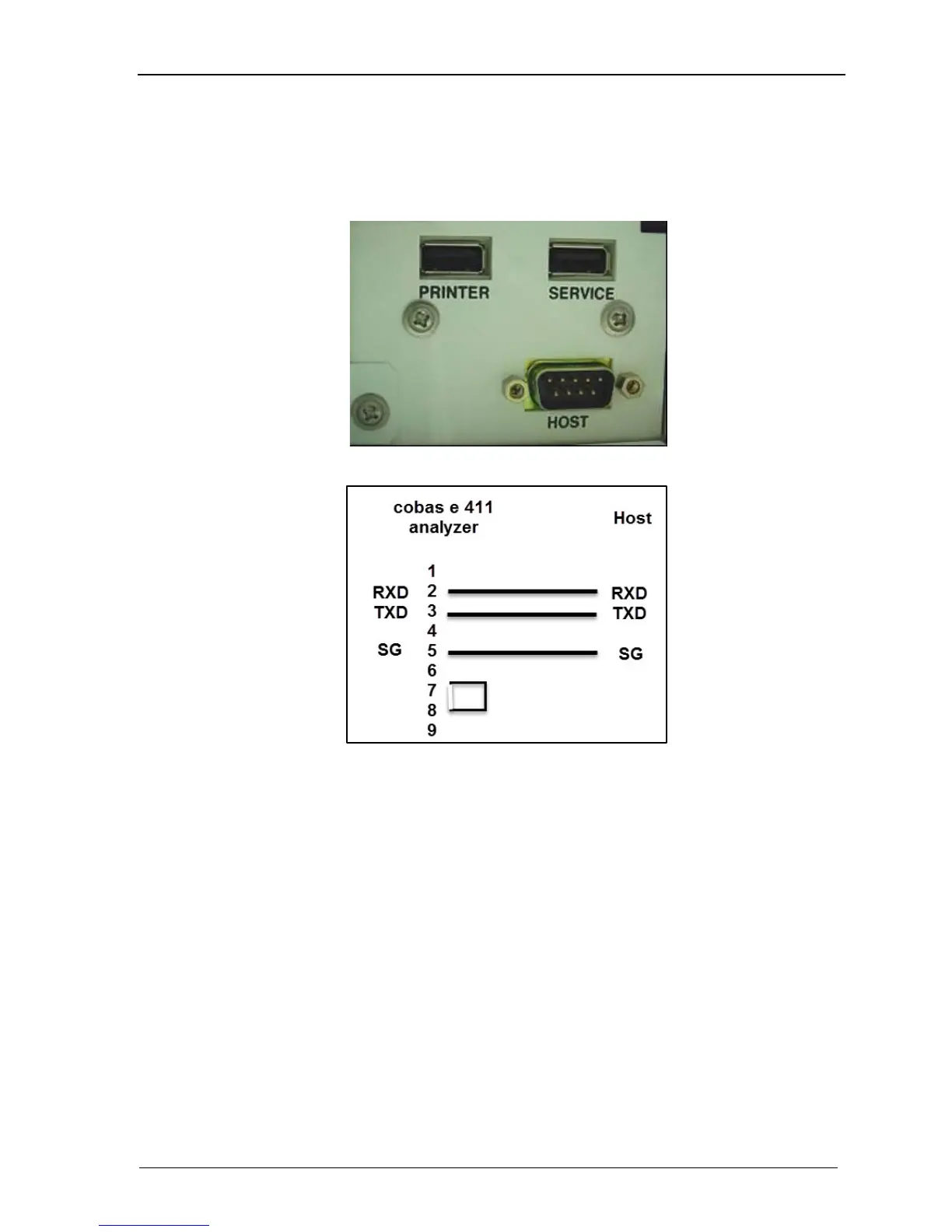

Figure 6: Connector and communication cable
Figure 7: Connection diagram
